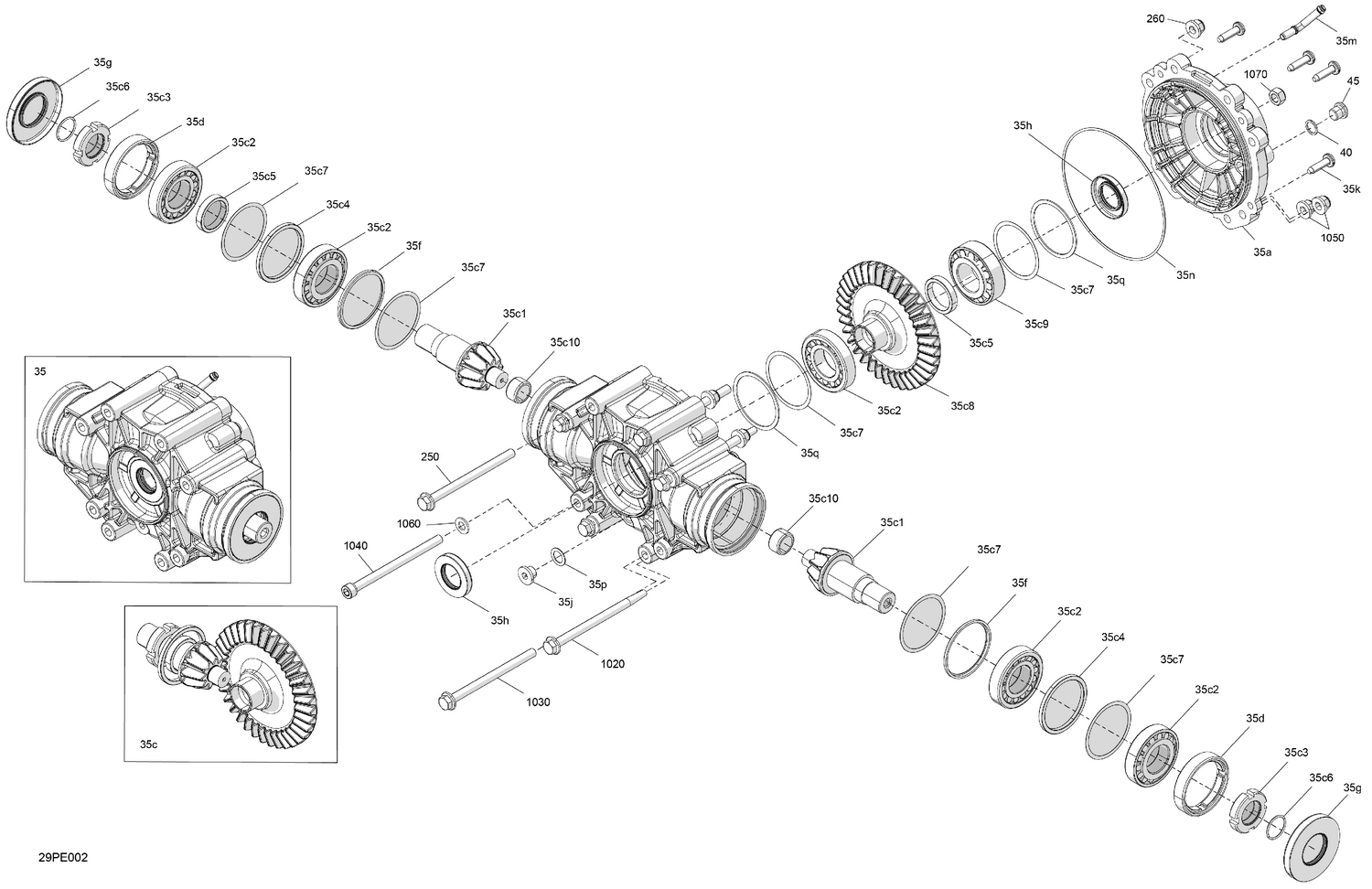

04- Drive - Middle Drive Unit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#35
Middle Drive Unit Ass'y
705503692
|
$1,324.49 | ||
|
Available to order. Add to View Price |
|||
|
#35a
Case Cover
705503089
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#35c
Gear Kit - 10/36 teeth
703501031
|
$389.99 | ||
|
Available to order. Add to View Price |
|||
|
#35c1
Geart 10 Teeth
705502809
|
|||
|
Unavailable |
|||
|
#35c2
Roller Bearing
705502174
|
|||
|
Unavailable |
|||
|
#35c3
Nut
705501550
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#35c4
Differential Shim
705501552
|
|||
|
Unavailable |
|||
|
#35c5
Differential Shim
705501553
|
|||
|
Unavailable |
|||
|
#35c6
O-Ring
705501554
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#35c7
Differential Shim
705501725
|
|||
|
Unavailable |
|||
|
#35c8
Gear 36 Tooth
705502810
|
|||
|
Unavailable |
|||
|
#35c9
Roller Bearing
705502173
|
|||
|
Unavailable |
|||
|
#35c10
Needle Bearing
705501760
|
|||
|
Unavailable |
|||
|
#35d
Nut
705501549
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#35f
Differential Shim
705501586
|
|||
|
Unavailable |
|||
|
#35g
Oil Seal
705501557
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#35h
Oil Seal
705501556
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#35j
Fill Level Plug
705500504
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#35k
Screw
705502063
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#35m
Breather Tube
705501584
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#35n
O-Ring
705501711
|
$10.54 | ||
|
Available to order. Add to View Price |
|||
|
#35p
Copper Washer
705500506
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35q
Differential Shim
705501555
|
|||
|
Unavailable |
|||
|
#40
Fill Level Plug
705500504
|
$10.99 | ||
|
Unavailable |
|||
|
#45
Copper Washer
705500506
|
$0.47 | ||
|
Unavailable |
|||
|
#250
Hex. Flange Screw M10 X 135
250001041
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#260
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1020
Hex. Flange Screw M10x145
705502741
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#1030
Hex. Flange Screw M10 X 135
250001041
|
$5.69 | ||
|
Unavailable |
|||
|
#1040
Socket Screw HD.din.912
231003587
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#1050
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
Unavailable |
|||
|
#1060
WASHER M10 - Call your local BRP dealership
20005
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#1070
Elastic Stop Nut M10
232500416
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
