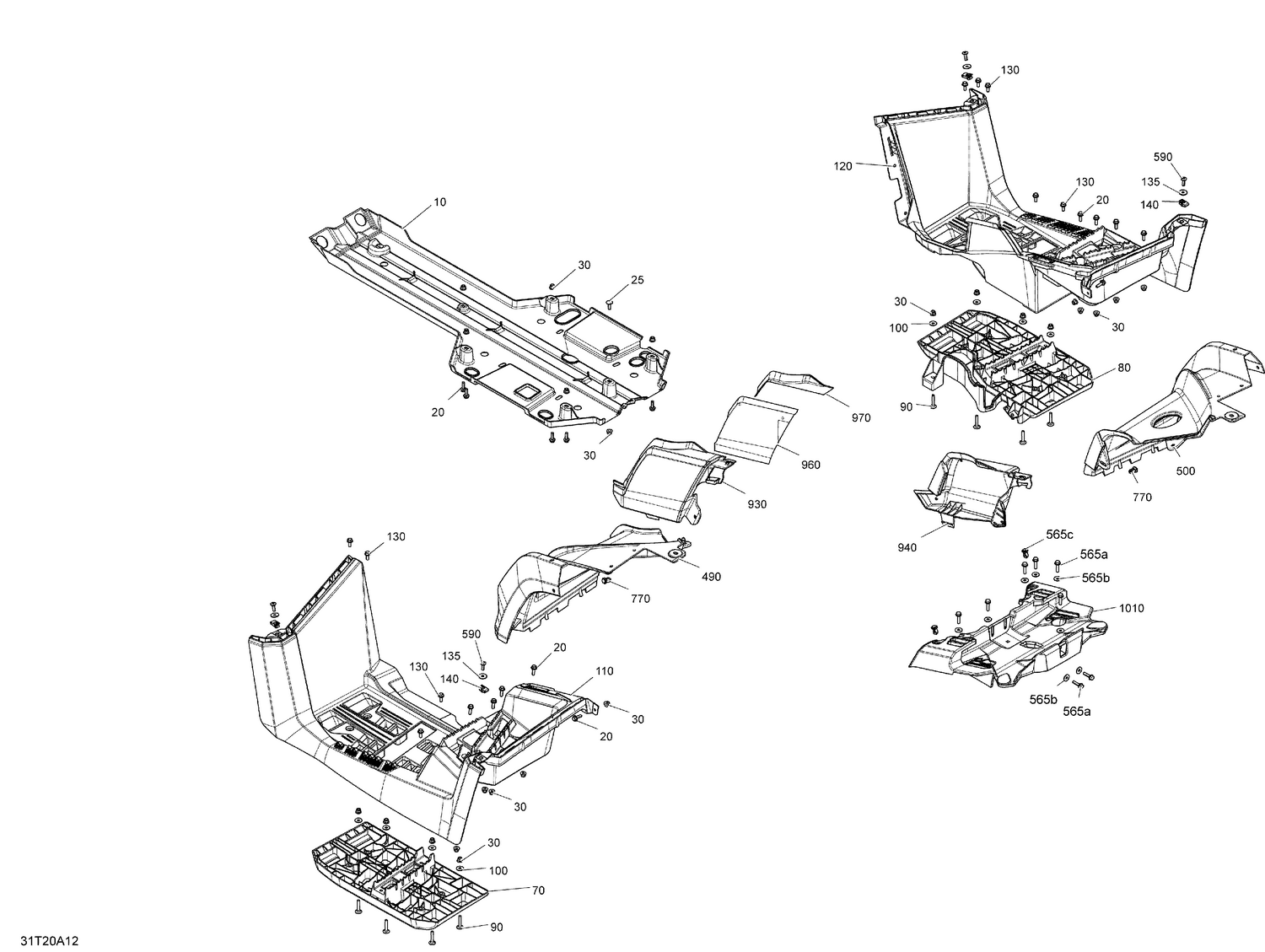

07- Body - Rear Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Protective Plate Kit
715002374
|
$64.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
Carriage Bolt M6 X 20
207762044
|
$1.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
LH Structural Footboard
705011540
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
RH Structural Footboard
705011542
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Carriage Bolt M6 X 35
207763554
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#100
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#110
LH Footrest Max
705003525
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
RH Footrest Max
705003521
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
Hex. Flange Screw M6 X 16
207661654
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#135
Flat Washer
224061201
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#140
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#490
Pure Magnesium Rear LH Fender
715006078
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#500
Pure Magnesium Rear RH Fender
715006090
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#565a
Hex Flange Screw M6 X 25
250000841
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#565b
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#565c
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#590
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#930
LH Extension Panel
715001897
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#940
RH Extension Panel
705004348
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#960
Heat Shield
705006870
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#970
Heat Shield
705006871
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#1010
Seat Holder
705007948
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
