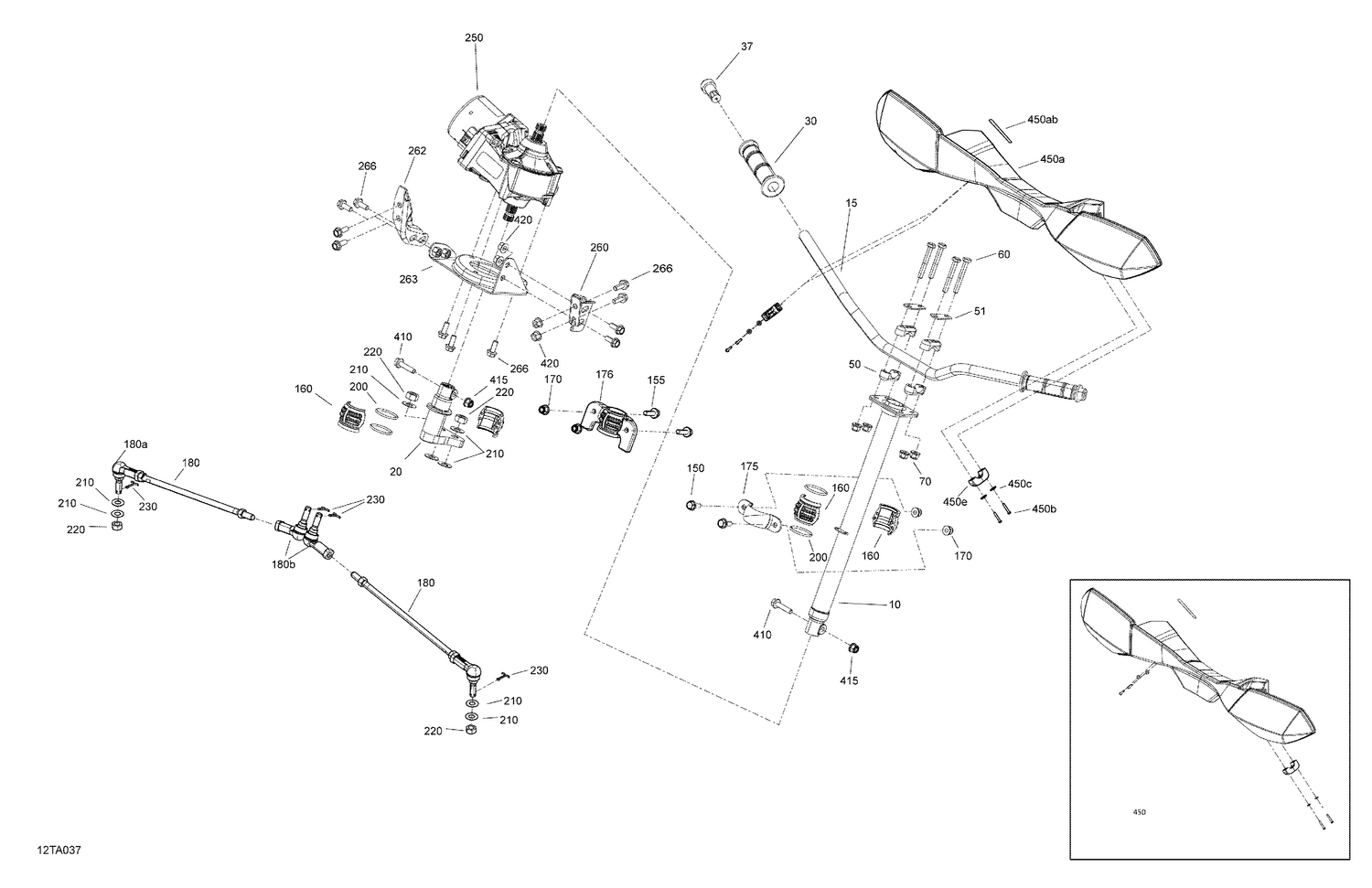

03- Mechanic - Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Main Tube Kit
703501108
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Black, Handlebar
709401240
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Pitman Arm
703501110
Superseded by 703501160
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Handle Grip
709400493
|
$14.83 | ||
|
Available to order. Add to View Price |
|||
|
#37
End Piece
709400449
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Steering Support
709401799
|
$22.49 | ||
|
Unavailable |
|||
|
#51
Stiffner
709400509
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Screw M8 X 60
207086046
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#70
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#155
Hex. Flange Screw M8 X 25
207682534
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
Spherical Half Bushing
709400783
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#170
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#175
Upper Column Attachment
709400827
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#176
Column Attachment
709401428
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#180
Tie-Rod Ass`y
703501039
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#180a
LH Ball Joint
709402303
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#180b
RH Ball Joint
709402302
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
O-Ring
293300068
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#210
Hardened Washer
250200086
Superseded by 706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#220
Nut M12
250100099
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#230
Cotter Pin
211400013
|
$0.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Power Steering Ass'y
709402388
Superseded by 709403187
|
$1,218.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
LH Power Steering Bracket
709402184
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#262
RH Bracket
709402185
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#263
Power Steering Support
709401743
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#266
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#410
Hex. Flange Screw M8 X 45 Scotch Grip
250001133
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#415
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#420
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#450
Handle Guard Ass'y, XT
703100352
|
$98.49 | ||
|
Available to order. Add to View Price |
|||
|
#450a
Handle Bar Protector
709400822
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#450b
DPS Decal
704902966
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#450ab
Hex. Flange Screw K40 X 25
241142560
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#450c
Flat Washer
211200035
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#450e
U-Clamp
517303264
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
