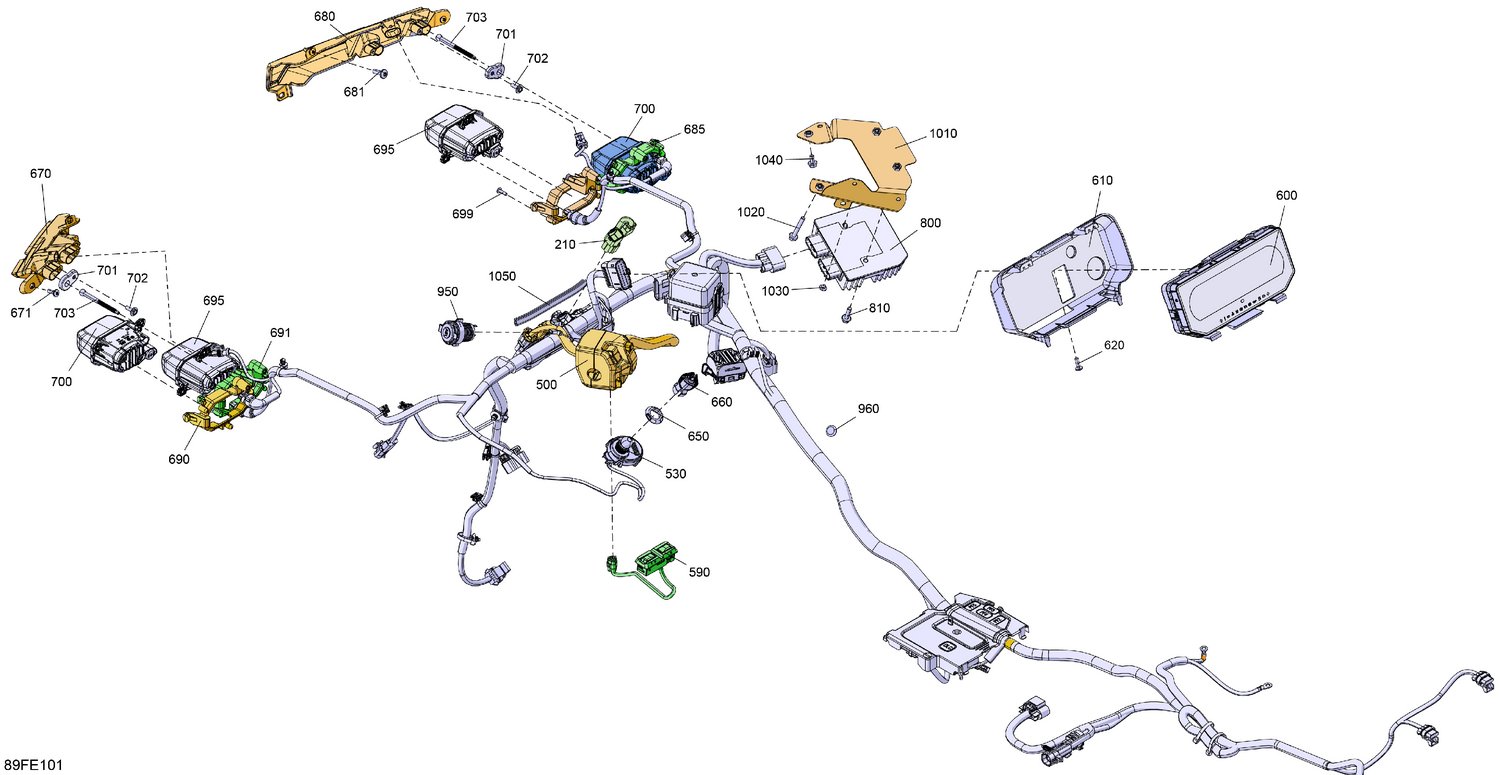

08- Electric - Front Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#110
Torx Truss Pt K40 X 16
250000759
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#203
DPS Connector Cap
710005760
|
$16.86 | ||
|
Available to order. Add to View Price |
|||
|
#210
Switch Wiring Harness
710009366
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#500
LH Front Switch Housing
710006944
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#530
Terminal DESS CAN
710008832
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#590
Multifunction Switch
710009867
|
$63.49 | ||
|
Available to order. Add to View Price |
|||
|
#600
Multifunction Gauge Mid
710008297
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#610
Int Gauge Support
710009602
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#620
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#650
Specialized Nut
278004274
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#660
Grey Key RFID
710004964
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#670
LH Cap
710009518
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#671
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#680
RH Cap
710009519
|
$11.59 | ||
|
Available to order. Add to View Price |
|||
|
#681
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#685
RH Front Low Beam Headlight Support
710009481
Superseded by 710011657
|
$26.99 | ||
|
Unavailable |
|||
|
#690
LH Front Low Beam Headlight Support
710009480
Superseded by 710011656
|
$26.99 | ||
|
Unavailable |
|||
|
#691
LH/RH Front High Beam Headlight Support
710009881
Superseded by 710011658
|
$47.99 | ||
|
Unavailable |
|||
|
#695
HIgh Beam Light
710006910
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#699
Torx Truss Pt K40 X 16
250000759
|
$2.19 | ||
|
Unavailable |
|||
|
#700
Low Beam Light
710008088
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#701
Ball Socket
293900157
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#702
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#703
Ajustment Screw
710005837
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#800
Voltage Regulator
710010540
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#810
Hex. Flange Screw M6 X 25
207562544
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#950
DC Outlet
710001248
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#960
Body Cap
710010665
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#1010
Voltage Regulator Support
710009942
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#1020
Hex. Flange Screw M6 X 40
207664044
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1030
Rubber Stopper
293830229
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#1040
Hex. Flange Screw M6 X 12
207661244
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1050
Trim 1000Mm Long
219704354
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
