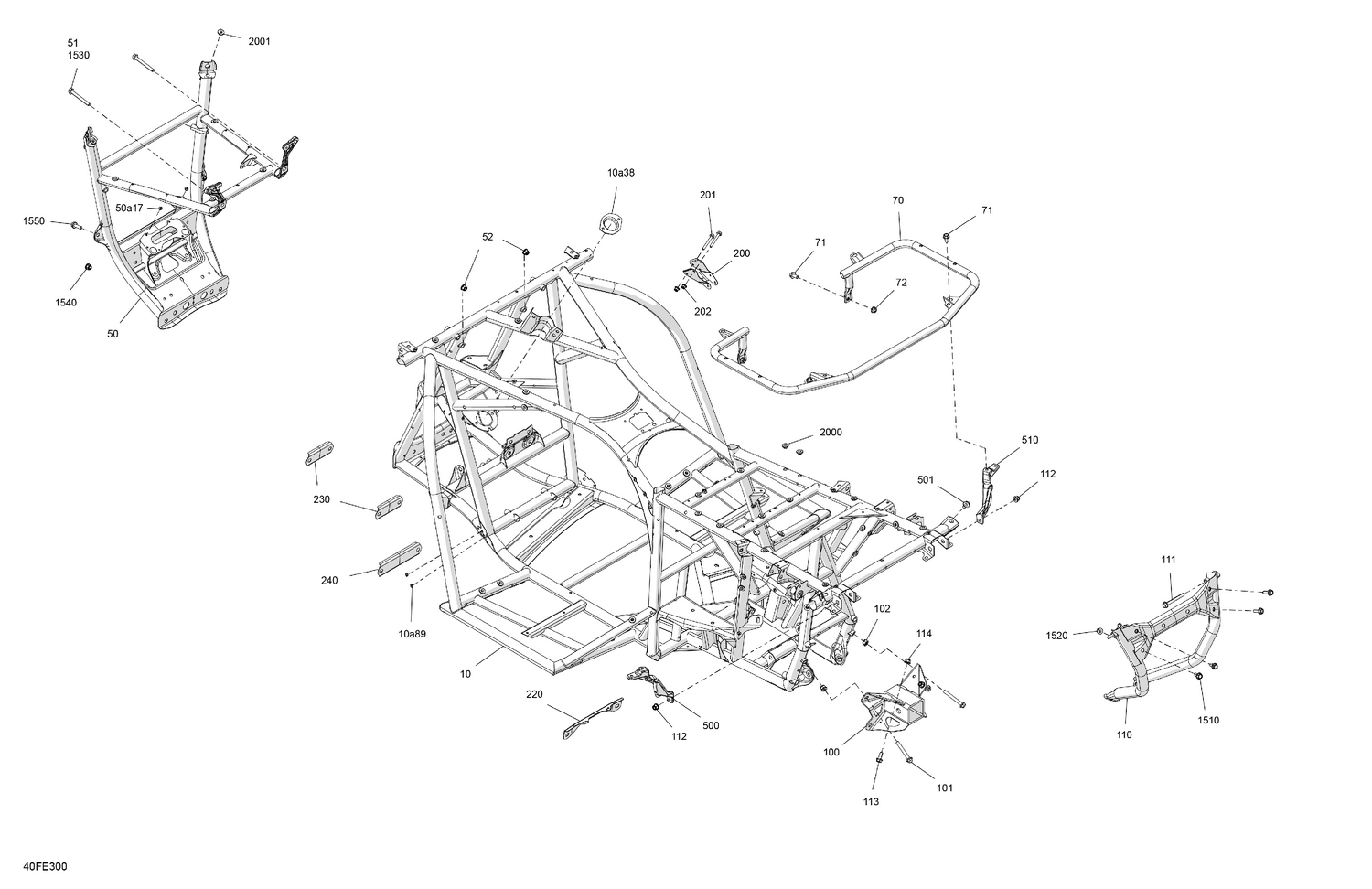

06- Frame - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Chassis Ass'y
715010301
|
$1,899.99 | ||
|
Unavailable |
|||
|
#10a38
Lower Bearing Support
709402713
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a89
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Front Bumper
705211446
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#50a17
Pop Rivet 3/16 X ,425
293150293
|
$0.35 | ||
|
Unavailable |
|||
|
#51
Hex. Flange Screw M8 X 70
207687044
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
Rear Bumper Anchorage
705211733
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
Hex. Flange Nut M8
233181414
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#73
Hex Torx Truss M8 X30
250000745
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#100
Trailer Hitch Kit
715010529
|
$62.49 | ||
|
Unavailable |
|||
|
#101
Hex. Flange Screw, M8 X 65
207686544
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#102
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#110
Rear Chassis Reinforcement Kit
715010514
|
$91.99 | ||
|
Unavailable |
|||
|
#111
Hex. Flange Screw M8 X 70
207687044
|
$7.59 | ||
|
Unavailable |
|||
|
#112
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#113
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#114
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#200
Lever Support
705208228
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#201
Hex. Flange Screw M6 X 45
207664544
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#202
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#220
Rear Suspension Arm Reinforcement
705209026
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#230
Front Upper Suspension Arm Reinforcement
705212296
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#240
Front Lower Suspension Arm Reinforcement
705211664
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#500
LH Machined Bumper Anchorage
705211736
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#501
Hex. Flange Screw M8 X 16, Scotch Grip
207581644
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#510
RH Machined Bumper Anchorage
705211738
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#1510
Hex Screw Washer Head M8 X 20
207582054
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#1520
Hex. Flange Nut M8
233181414
|
$1.19 | ||
|
Unavailable |
|||
|
#1530
Hex. Flange Screw S.Grip M8 X 75
250001296
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#1540
Hex. Flange Nut M8
233181414
|
$1.19 | ||
|
Unavailable |
|||
|
#1550
Hex Screw Washer Head M8 X 20
207582054
|
$3.29 | ||
|
Unavailable |
|||
|
#2000
Threaded Insert
293450383
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#2001
Threaded Insert
293450383
|
$2.61 | ||
|
Unavailable |
|||
