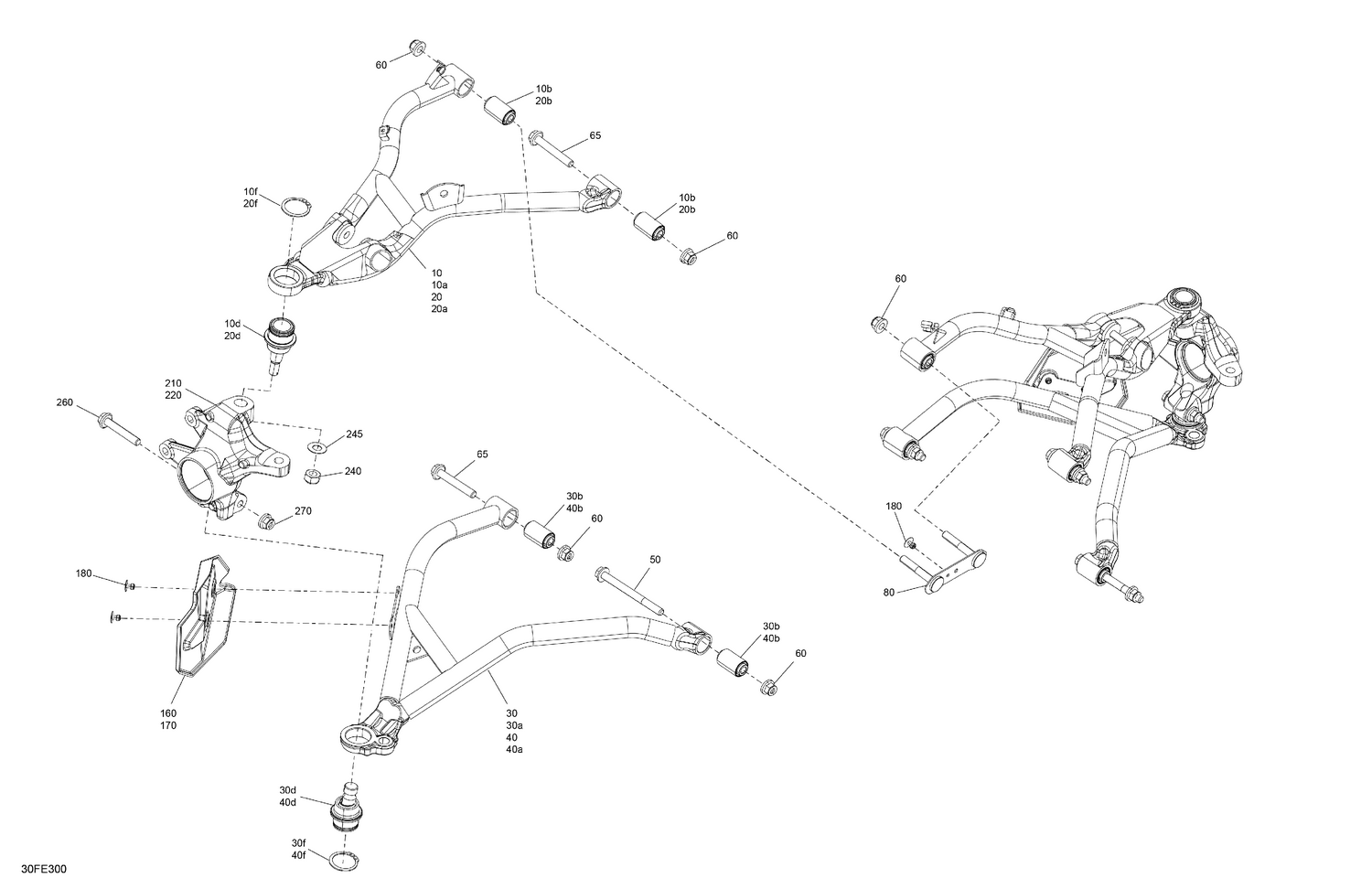

05- Suspension - Front Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
LH Upper Suspension Arm Ass'y
715010401
|
$158.99 | ||
|
Unavailable |
|||
|
#10a
LH Upper Suspension Arm Ass'y
715010401
|
$158.99 | ||
|
Unavailable |
|||
|
#10b
Suspension Arm Bushing
706004511
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10d
Ball Joint
706202044
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10f
Circlip
293370035
|
$2.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
RH Upper Suspension Arm Ass'y
715010402
|
$158.99 | ||
|
Unavailable |
|||
|
#20a
RH Upper Suspension Arm Ass'y
715010402
|
$158.99 | ||
|
Unavailable |
|||
|
#20b
Suspension Arm Bushing
706004511
|
$13.49 | ||
|
Unavailable |
|||
|
#20d
Ball Joint
706202044
|
$35.99 | ||
|
Unavailable |
|||
|
#20f
Circlip
293370035
|
$2.69 | ||
|
Unavailable |
|||
|
#30
LH Lower Suspension Arm Ass'y
715010403
Superseded by 715010948
|
$158.99 | ||
|
Unavailable |
|||
|
#30a
LH Lower Suspension Arm Ass'y
715010403
Superseded by 715010948
|
$158.99 | ||
|
Unavailable |
|||
|
#30b
Suspension Arm Bushing
706004511
|
$13.49 | ||
|
Unavailable |
|||
|
#30d
Ball Joint
706202045
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#30f
Circlip
293370035
|
$2.69 | ||
|
Unavailable |
|||
|
#40
RH Lower Suspension Arm Ass'y
715010404
Superseded by 715010949
|
$158.99 | ||
|
Unavailable |
|||
|
#40a
RH Lower Suspension Arm Ass'y
715010404
Superseded by 715010949
|
$158.99 | ||
|
Unavailable |
|||
|
#40b
Suspension Arm Bushing
706004511
|
$13.49 | ||
|
Unavailable |
|||
|
#40d
Ball Joint
706202045
|
$35.99 | ||
|
Unavailable |
|||
|
#40f
Circlip
293370035
|
$2.69 | ||
|
Unavailable |
|||
|
#50
Hex Flange Screw DIN.6921
230601046
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#65
Hex. Flange Screw M10 X 65
207606536
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
Suspension Arm Anchorage
705208352
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
LH CV joint Guard
706202134
|
$11.01 | ||
|
Available to order. Add to View Price |
|||
|
#170
RH CV joint Guard
706202135
|
$11.01 | ||
|
Available to order. Add to View Price |
|||
|
#180
Black, Pop Rivet 3/16 X ,550
293150292
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
LH Knuckle
706203212
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#220
RH Knuckle
706203213
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#240
Hex. Elastic Hex. Nut M12
250100089
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#245
Hardened Washer
706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#260
Hex. Flange Screw M10 X 60
207606044
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#270
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
Unavailable |
|||
