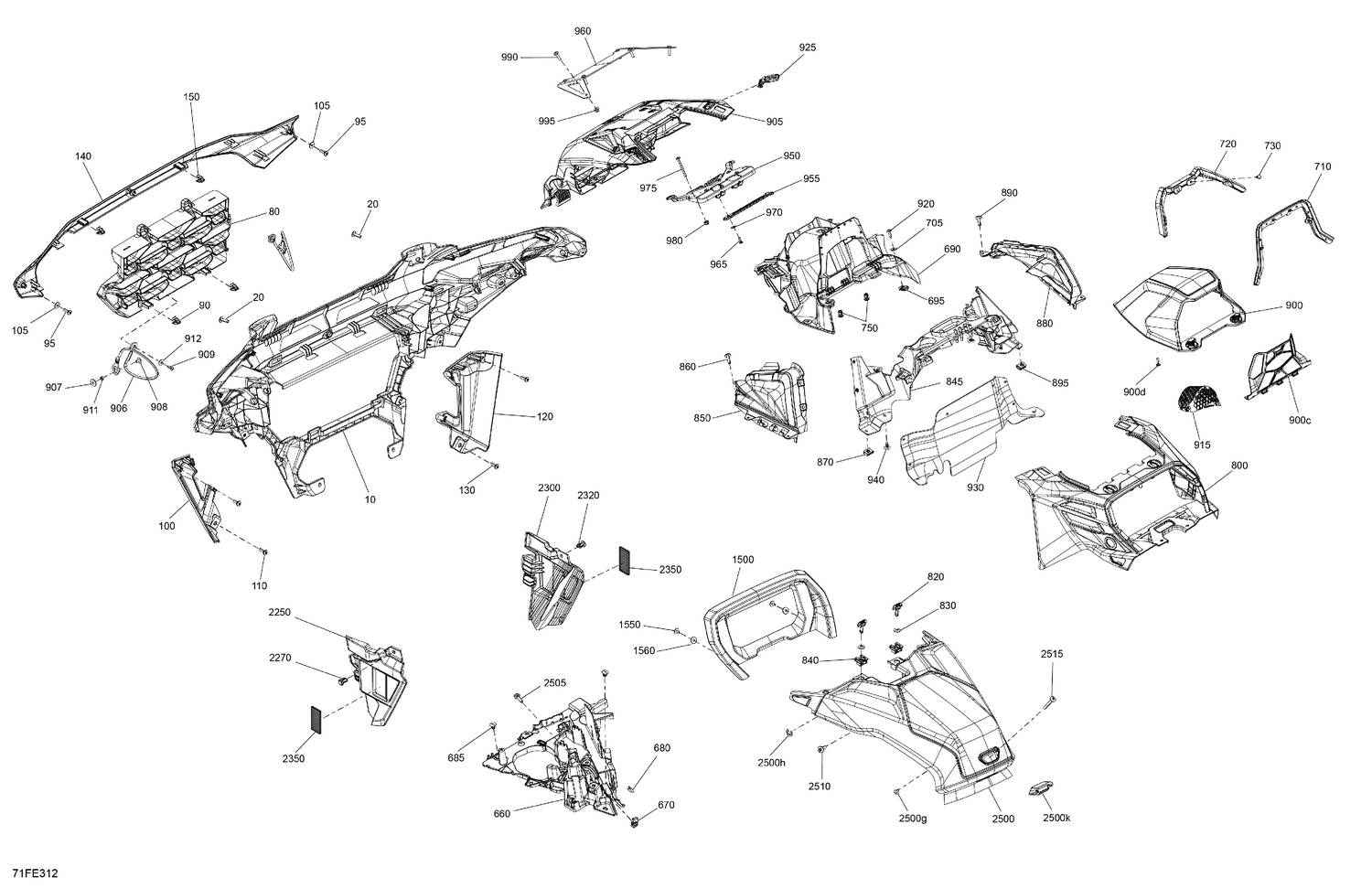

07- Body - Front Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Front Grille
705018771
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Screw Torx M6 X 20
250001257
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#80
Air Inlet Grille
705017947
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Clip
517306478
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#95
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#100
LH Grille Trim
705018179
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#105
Washer M5
250200025
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#110
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#120
RH Grille Trim
705018185
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#130
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#140
Granite Grey, Front Grille Trim
705020043
|
$119.99 | ||
|
Unavailable |
|||
|
#150
Clip
517306478
|
$1.09 | ||
|
Unavailable |
|||
|
#660
Multi Purpose Support
705018178
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#670
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#680
Clip
414479100
|
$1.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#685
Black, Pop Rivet 3/16 X ,425
293150291
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#690
Dashboard Support Kit
715010533
|
$99.99 | ||
|
Unavailable |
|||
|
#695
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#705
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#710
Front Gasket
705018851
|
$17.49 | ||
|
Unavailable |
|||
|
#720
Rear Gasket
705018852
|
$17.49 | ||
|
Unavailable |
|||
|
#730
BLACK DART
293730076
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#750
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800
Dashboard
705015789
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#820
Quarter Turn
708400278
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#830
Washer
708400286
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#840
Clip
708400285
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#845
Lower Dashboard Support
705018405
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#850
LH Radiator Guard
705014883
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#860
Screw Torx M6 X 20
250001257
|
$1.69 | ||
|
Unavailable |
|||
|
#870
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
Unavailable |
|||
|
#880
RH Radiator Guard
705014884
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#890
Screw Torx M6 X 20
250001257
|
$1.69 | ||
|
Unavailable |
|||
|
#895
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
Unavailable |
|||
|
#900
Snorkel Ass'y
705018893
|
$99.49 | ||
|
Unavailable |
|||
|
#900c
Filter
705019010
|
$52.99 | ||
|
Unavailable |
|||
|
#900d
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#905
Hood
709201313
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#906
Retaining Cable
708304440
|
$33.99 | ||
|
Unavailable |
|||
|
#907
Flat Washer
250200097
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#908
Torx-truss M/s M6 X 10
250000995
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#909
Torx Truss Pt K40 X 16
250000759
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#911
Bushing
708300737
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#912
Washer M5
250200025
|
$0.76 | ||
|
Unavailable |
|||
|
#915
Air Inlet Grille
707003398
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#920
Screw Torx M6 X 20
250001257
|
$1.69 | ||
|
Unavailable |
|||
|
#925
Front Soft Latch
517309435
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#930
Baffle
705019087
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#940
Black, Dart
293730011
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#950
Tool Kit Support
709201464
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#955
Retaining Strap
708303885
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#960
Hood Trim
709201466
|
$28.99 | ||
|
Unavailable |
|||
|
#965
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#970
Washer M5
250200025
|
$0.76 | ||
|
Unavailable |
|||
|
#975
Torx Screw M6 X 60
250000648
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#980
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#990
Torx Screw M6 X 25
250000758
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#995
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
Unavailable |
|||
|
#1500
Console Trim
705017853
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#1550
Plastite Screw M4 X 10
250000805
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1560
Washer M5
250200025
|
$0.76 | ||
|
Unavailable |
|||
|
#2250
LH Front Radiator Deflector
705015256
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#2270
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#2300
RH Front Radiator Deflector
705015257
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#2320
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#2350
Amber, Reflector
520002680
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#2500
Glove Box Ass'y
705017885
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#2500g
Plastite Screw M4 X 10
250000805
|
$2.19 | ||
|
Unavailable |
|||
|
#2500h
Circlip
293370050
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#2500k
Insulating Pad
293830251
|
$10.49 | ||
|
Unavailable |
|||
|
#2505
Hex. Flange Screw M6 X 20
207662046
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#2510
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2515
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
