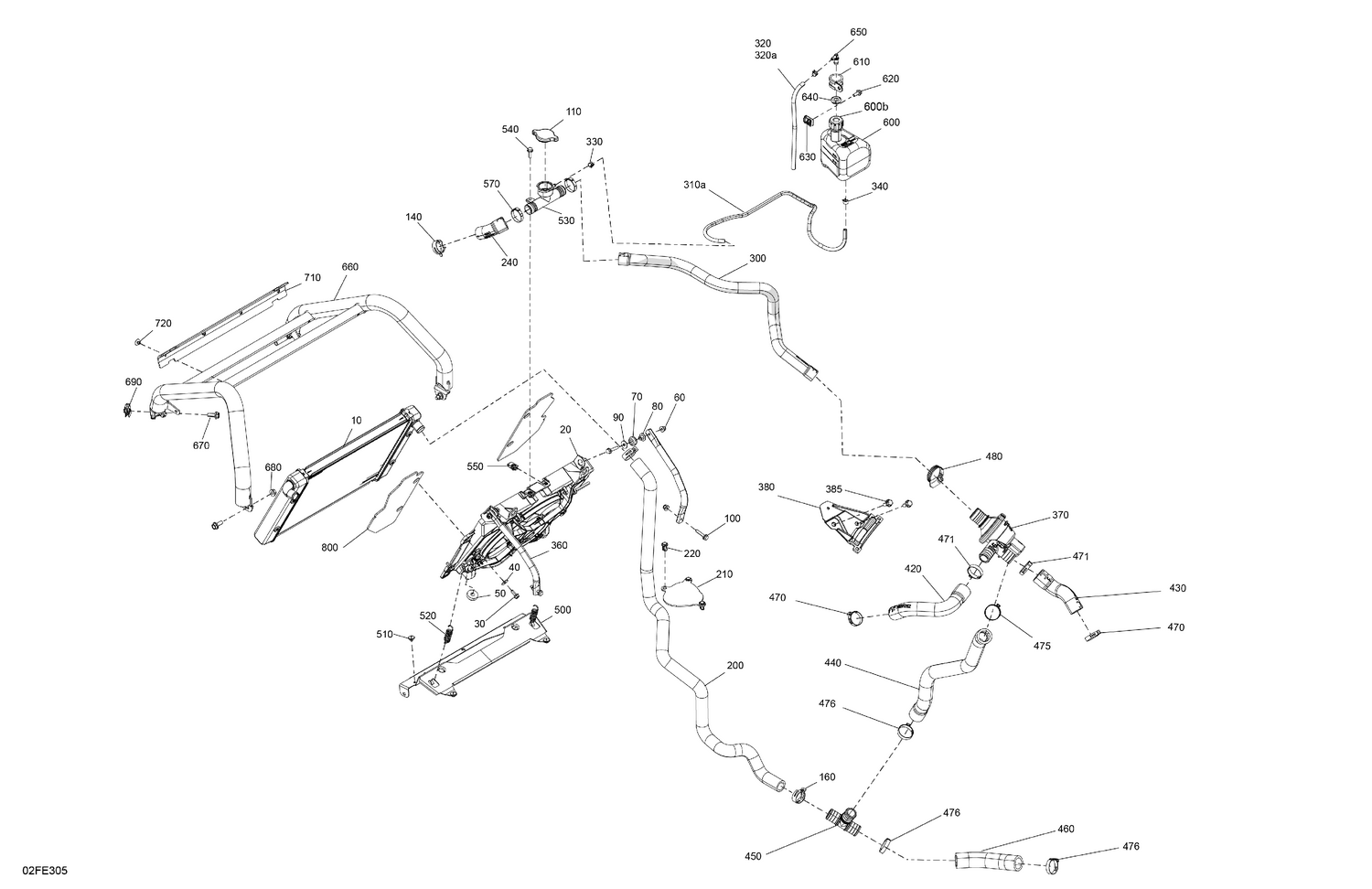

02- Engine - Cooling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Radiator
709201126
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cooling Fan
709201127
Superseded by 709201622
|
$259.99 | ||
|
Unavailable |
|||
|
#30
Hex Flange Screw M6 X 16
250000906
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#40
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#50
Grommet
709200948
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
Overmolded Grommet
293720130
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Bushing
709001288
|
$9.09 | ||
|
Unavailable |
|||
|
#90
Flat Washer
250200082
|
$0.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#100
Hex. Flange Screw M6 X 30
207663046
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#110
Radiator Pressure Cap
709200207
|
$25.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#140
Norma Spring Clamp
293650108
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#160
Norma Spring Clamp
293650108
|
$4.19 | ||
|
Unavailable |
|||
|
#200
Radiator Hose
709201130
Superseded by 709201591
|
$34.99 | ||
|
Unavailable |
|||
|
#210
Plug
709201461
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#220
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#240
Coolant Hose
709201381
Superseded by 709201593
|
$34.99 | ||
|
Unavailable |
|||
|
#300
Hose
709201128
Superseded by 709201595
|
$34.99 | ||
|
Unavailable |
|||
|
#310a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#320
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#320a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#330
Spring Clamp
414554800
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#340
Spring Clamp
414420700
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#360
Tube
709201205
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#370
Housing
709201279
|
$98.99 | ||
|
Unavailable |
|||
|
#380
Thermostat Support
709201282
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#385
Hex. Flange Screw M6 X 16, Scotch Grip
207561646
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#420
Thermostat Hose
709201262
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#430
Thermostat Hose
709201263
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#440
Thermostat Hose
709201264
|
$17.99 | ||
|
Unavailable |
|||
|
#450
T-Fitting
709201420
|
$16.40 | ||
|
Unavailable |
|||
|
#460
Water Pump Hose
709201265
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#470
Crimp Clamp
293650099
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#471
Crimp Clamp
293650331
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#475
Crimp Clamp
293650331
|
$4.49 | ||
|
Unavailable |
|||
|
#476
Crimp Clamp
293650331
|
$4.49 | ||
|
Unavailable |
|||
|
#480
Norma Gear Clamp
293650098
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
Support
709201380
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#510
Black, Pop Rivet 3/16 X ,425
293150291
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#520
Brake Pedal Spring
705600792
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#530
Filler Neck
709200422
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#540
Hex. Flange Screw M6 X 20
207662034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#550
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#570
Crimp Clamp
293650332
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#600
Coolant Tank Ass'y
703501190
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#600b
Cap
709200586
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#610
Hose Anchor
709200036
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#620
Hex. Flange Screw M6 X 16
207661646
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#630
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#640
Grommet
705003264
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#650
Male Connector
414580700
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#660
Legion Red, Bumper Reinforcement
705212637
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#670
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#680
Hex. Flange Nut M8
233181414
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#690
Panel Nut M8 X 1.25
250100236
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#710
Gasket
709201191
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#720
Black, Pop Rivet 3/16 X ,425
293150291
|
$0.58 | ||
|
Unavailable |
|||
|
#800
Gasket
709201192
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
