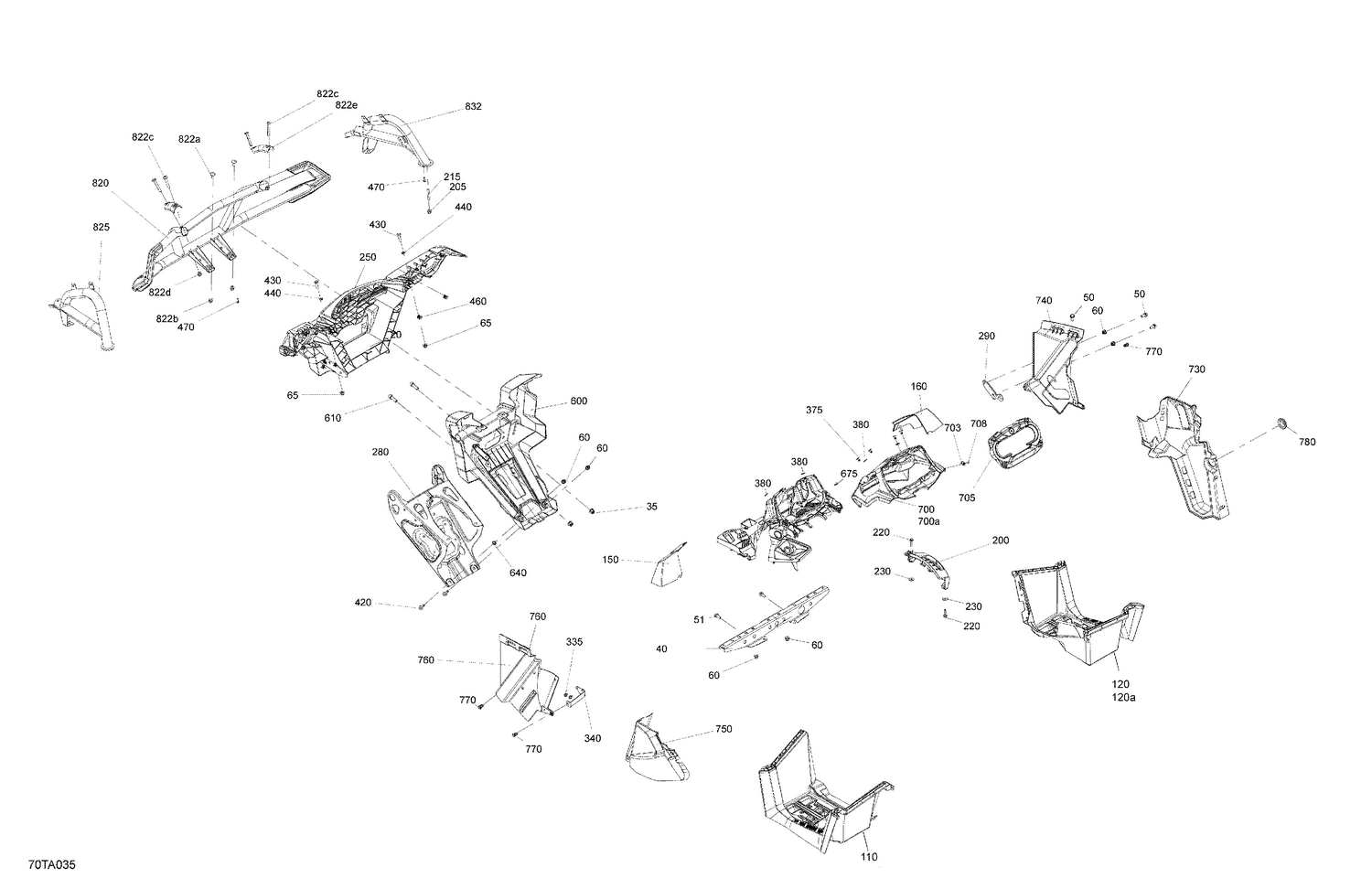

07- Body - Front Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#35
Hex. Flange Elastic Nut M10
233201434
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#40
Front Bumper Center Support
705006220
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#65
Elastic Flange Nut M8
233281464
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#110
LH Footrest
705009810
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
RH Footrest
705009811
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#120a
RH Footrest
705008338
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
LH Air Deflector
705006134
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
RH Air Deflector
705006135
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
Shifter Gate Kit
715003977
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#205
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Unavailable |
|||
|
#215
Socket Set Screw M8 x 50
206285044
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#220
Hex. Flange Screw M6 X 30, Scotch Grip
207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#230
Flat Washer
224061201
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#250
Fascia
705012822
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#280
Front Bumper Support
705009253
Superseded by 705016893
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#290
Lower Fender Support
705004565
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#335
Hex. Flange Screw M6 X 10
210261040
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#340
LH Inner Fender Bracket
705007140
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#375
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#380
Washer
517124300
|
$0.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#420
Torx Screw M8 X 30
250000886
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#430
Hex. Cap Screw M8 X 30
207183054
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#440
Stainless Steel Flat Washer 8 mm
234081670
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#460
Edge Clip
517302785
|
$0.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#470
Hex. Flange Screw, Scotch Grip
207551634
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#600
Front Guard Plate
705006299
|
$51.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#610
Socket Screw M10 x 30
205003044
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#640
Ring
705004497
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#675
Phillips Screw K40 X 16
250000723
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#700
Gauge Support
705013983
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#700a
Gauge Support
705013984
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#703
Extruded Panel Nut M4 X 0.7
250100143
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#705
Front Gauge Trim
705013985
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#708
Torx Head Screw M4 X 16
250000797
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#730
RH Wheel Arch Protector
705013925
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
|
#740
RH Front Inner Fender
705011463
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#750
LH Wheel Arch Protector
705013924
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
|
#760
LH Front Wheel Arch Protector
705011465
Superseded by 705017001
|
$16.85 | ||
|
Available to order. Add to View Price |
|||
|
#770
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#780
Rubber Cover
293250242
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#820
Manta Green, Front Bumper
705014417
|
$327.99 | ||
|
Available to order. Add to View Price |
|||
|
#822a
Carriage Bolt, M8 X 20
207782044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#822b
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Unavailable |
|||
|
#822c
Torx Screw M8 X 55
250000535
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#822d
Elastic Flange Nut M8
233281464
|
$1.09 | ||
|
Unavailable |
|||
|
#822e
Manta Green Upper Bracket
705008574
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#825
Manta Green, LH Radiator Support
705014420
Superseded by 705016594
|
$227.49 | ||
|
Available to order. Add to View Price |
|||
|
#832
Manta Green, RH Radiator Support
705014422
Superseded by 705016595
|
$227.49 | ||
|
Available to order. Add to View Price |
|||
