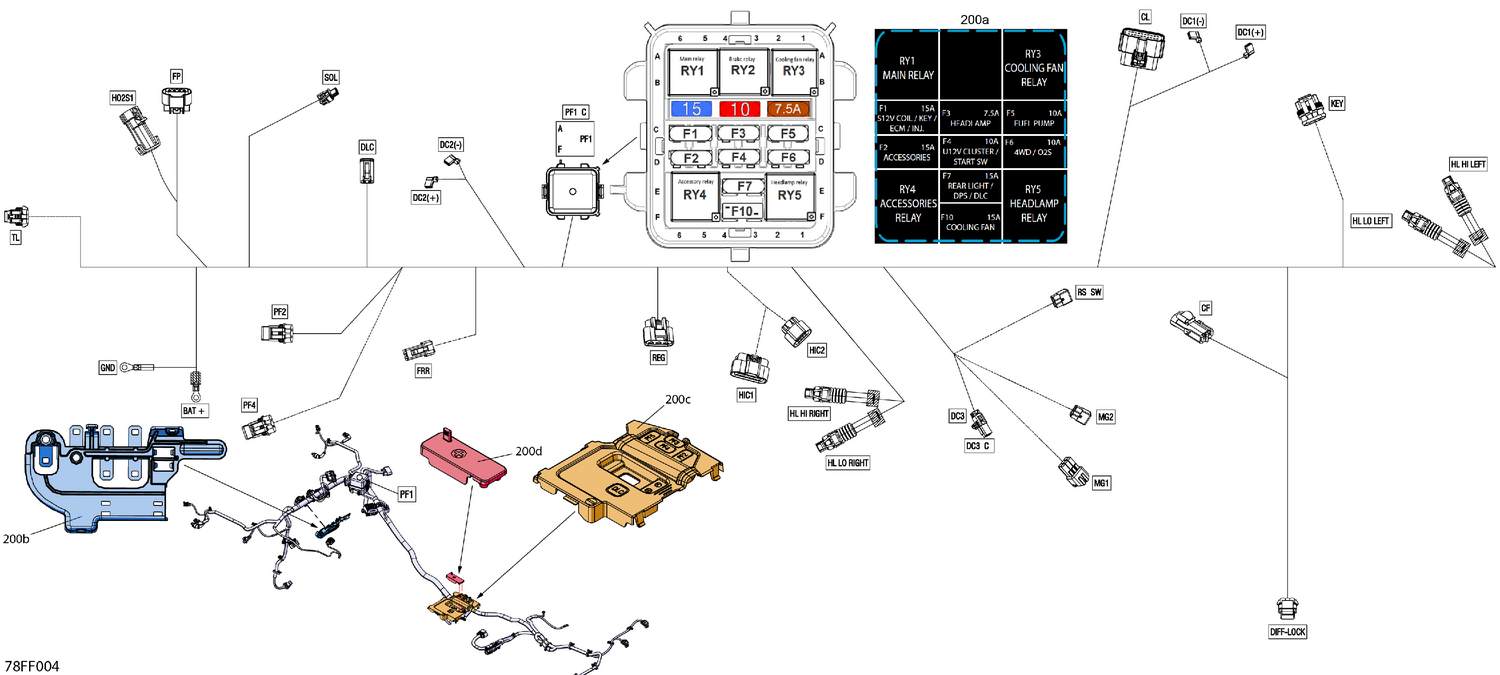

08- Electric - Main Harness - 710010846 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#200
Main Wiring Harness
710010846
|
$899.99 | ||
|
Unavailable |
|||
|
#200a
Fuses Decals
710010889
|
$0.01 | ||
|
Unavailable |
|||
|
#200b
Connector Support
710007290
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#200c
Fuse Holder Cover
710007296
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#200d
Positive Terminal Cap
710008598
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#AEB
Sumitomo Female Connector 2 Cavities
710008152
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#AEB
Wire Seal
710000402
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#AEB
Female Terminal
409012100
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#AEB C
Connector Sumitomo Male 2 Cavities
710008151
|
$8.54 | ||
|
Available to order. Add to View Price |
|||
|
#AEB C
Cap
710000080
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#BAT (+)
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#CF
Clip
710001038
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#CF
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#CF
Wire Seal
278000218
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#CF
Male Terminal
409004300
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#CL
Female Housing 20 Circuits
278002858
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Sealing Cap
278002860
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Female Terminal
515178018
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#D1
Diode
409012700
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#D2
Diode
409012700
|
$11.49 | ||
|
Unavailable |
|||
|
#D3
Diode
409012700
|
$11.49 | ||
|
Unavailable |
|||
|
#DC1
Female Terminal
409010300
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC2
Female Terminal
409010300
|
$4.49 | ||
|
Unavailable |
|||
|
#DC3
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3
Female Terminal
515175231
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3 C
Male Housing, 2 Circuits
710000667
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#DIFF-LOCK
Connector Delphi Female 6 Cavities
710006038
|
$80.49 | ||
|
Available to order. Add to View Price |
|||
|
#DIFF-LOCK
Lock Connector
710006039
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#DIFF-LOCK
Plug
409013700
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#DIFF-LOCK
Seal
278001482
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#DIFF-LOCK
Female Terminal
278001481
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#DLC
Female Housing 6 Circuits
710002706
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#DLC
Lock
710002705
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DLC
Female Terminal
710005438
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#DLC
Female Terminal
710005439
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#ECM1
Cover
515178601
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#ECM1
Housing 56 Circuits
515178595
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#ECM1
Plate
515178604
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#ECM1
Plug
515178599
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#ECM1
Plate
515178603
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#ECM1
Terminal
515178596
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#ECM1
Terminal
515178598
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#ECM1
Terminal
515178597
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Male Housing, 4 Circuits
278002185
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Lock
710001222
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Wire Seal
278002186
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Seal
710003153
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Female Terminal
278002187
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Terminal
710001765
Superseded by 710001873
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#FRR
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Unavailable |
|||
|
#FRR
Female Terminal
515175231
|
$4.49 | ||
|
Unavailable |
|||
|
#GND
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Unavailable |
|||
|
#HIC
Housing
515177205
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Seal Wire
710001332
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Terminal
710001228
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HL HI LEFT
Housing
710007660
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#HL HI LEFT
Lock
710001152
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#HL HI LEFT
Wire Seal
710001163
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#HL HI LEFT
Female Terminal
710001164
|
$9.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#HL HI RIGHT
Housing
710007660
|
$8.09 | ||
|
Unavailable |
|||
|
#HL HI RIGHT
Lock
710001152
|
$4.49 | ||
|
Unavailable |
|||
|
#HL HI RIGHT
Wire Seal
710001163
|
$7.89 | ||
|
Unavailable |
|||
|
#HL HI RIGHT
Female Terminal
710001164
|
$9.09 | ||
|
Unavailable |
|||
|
#HL LO LEFT
Female Housing, 2 Circuits
515177192
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#HL LO LEFT
Lock
710001152
|
$4.49 | ||
|
Unavailable |
|||
|
#HL LO LEFT
Wire Seal
710001163
|
$7.89 | ||
|
Unavailable |
|||
|
#HL LO LEFT
Female Terminal
710001164
|
$9.09 | ||
|
Unavailable |
|||
|
#HL LO RIGHT
Female Housing, 2 Circuits
515177192
|
$9.29 | ||
|
Unavailable |
|||
|
#HL LO RIGHT
Lock
710001152
|
$4.49 | ||
|
Unavailable |
|||
|
#HL LO RIGHT
Wire Seal
710001163
|
$7.89 | ||
|
Unavailable |
|||
|
#HL LO RIGHT
Female Terminal
710001164
|
$9.09 | ||
|
Unavailable |
|||
|
#HO2S1
Housing
710002466
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1
Lock
515178661
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1
Seal
278001482
|
$3.29 | ||
|
Unavailable |
|||
|
#HO2S1
Gold Terminal
710002597
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1
Terminal
710000736
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#KEY
Female Housing, 4 Circuits
409209700
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#KEY
Plug
409013700
|
$4.69 | ||
|
Unavailable |
|||
|
#KEY
Wire Seal
278001013
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#KEY
Female Terminal
278001014
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#MG1
Male Terminal Housing, 6 Circuits
710000835
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#MG1
Cap
710000080
|
$8.49 | ||
|
Unavailable |
|||
|
#MG1
Seal
409012300
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#MG1
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#MG1
Male Terminal
409011300
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#MG1EX
Connector
710006273
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#MG1EX
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#MG1EX
Female Terminal
409012100
|
$4.69 | ||
|
Unavailable |
|||
|
#MG2
Female Housing, 6 Circuits
710000081
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#MG2
Seal
409012300
|
$4.69 | ||
|
Unavailable |
|||
|
#MG2
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#MG2
Female Terminal
409012100
|
$4.69 | ||
|
Unavailable |
|||
|
#PF1
Fuse Base Ass'y
278003448
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Wire Seal
278000216
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Wire Seal
278001065
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Wire Seal
278000218
|
$4.49 | ||
|
Unavailable |
|||
|
#PF1
Female Terminal
710000918
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
278002578
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#PF1 C
Fuse Cover
278003553
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#PF1 C
Fuses Decals
710010889
|
$0.01 | ||
|
Unavailable |
|||
|
#PF1 C-SP1
Little Fuse, 7.5 Amperes
710000743
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#PF1 C-SP2
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1 C-SP3
Little Fuse, 15 Ampere
710000745
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-F1
Little Fuse, 15 Ampere
710000745
|
$8.69 | ||
|
Unavailable |
|||
|
#PF1-F10
Fuse 15 AMPS
710008009
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-F2
Little Fuse, 15 Ampere
710000745
|
$8.69 | ||
|
Unavailable |
|||
|
#PF1-F3
Little Fuse, 7.5 Amperes
710000743
|
$8.69 | ||
|
Unavailable |
|||
|
#PF1-F4
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F5
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F6
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F7
Little Fuse, 15 Ampere
710000745
|
$8.69 | ||
|
Unavailable |
|||
|
#PF1-RY1
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-RY3
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#PF1-RY4
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#PF1-RY5
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#PF2
Fuse
710001613
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Fuse Holder
278001325
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Female Terminal
710000357
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Female Housing, 3 Circuits
710000879
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Cap
710000882
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Seal
710001932
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Terminal
710001934
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#RS SW
Male Terminal Housing, 6 Circuits
710000835
|
$17.04 | ||
|
Unavailable |
|||
|
#RS SW
Cap
710000080
|
$8.49 | ||
|
Unavailable |
|||
|
#RS SW
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#RS SW
Male Terminal
409011300
|
$6.09 | ||
|
Unavailable |
|||
|
#SOL
Female Housing, 2 Circuits
515177192
|
$9.29 | ||
|
Unavailable |
|||
|
#SOL
Lock
710001152
|
$4.49 | ||
|
Unavailable |
|||
|
#SOL
Seal Wire
710001153
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#SOL
Terminal
710000925
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#TAS
Clip Bracket Connector (edge)
409210100
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#TAS
Housing
710001231
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#TAS
Lock 6 Positions
710005296
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#TAS
Seal
710001233
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#TAS
Terminal
710001224
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#TL
Housing
710000645
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#TL
Seal
278001482
|
$3.29 | ||
|
Unavailable |
|||
|
#TL
Female Terminal
278001481
|
$3.59 | ||
|
Unavailable |
|||
