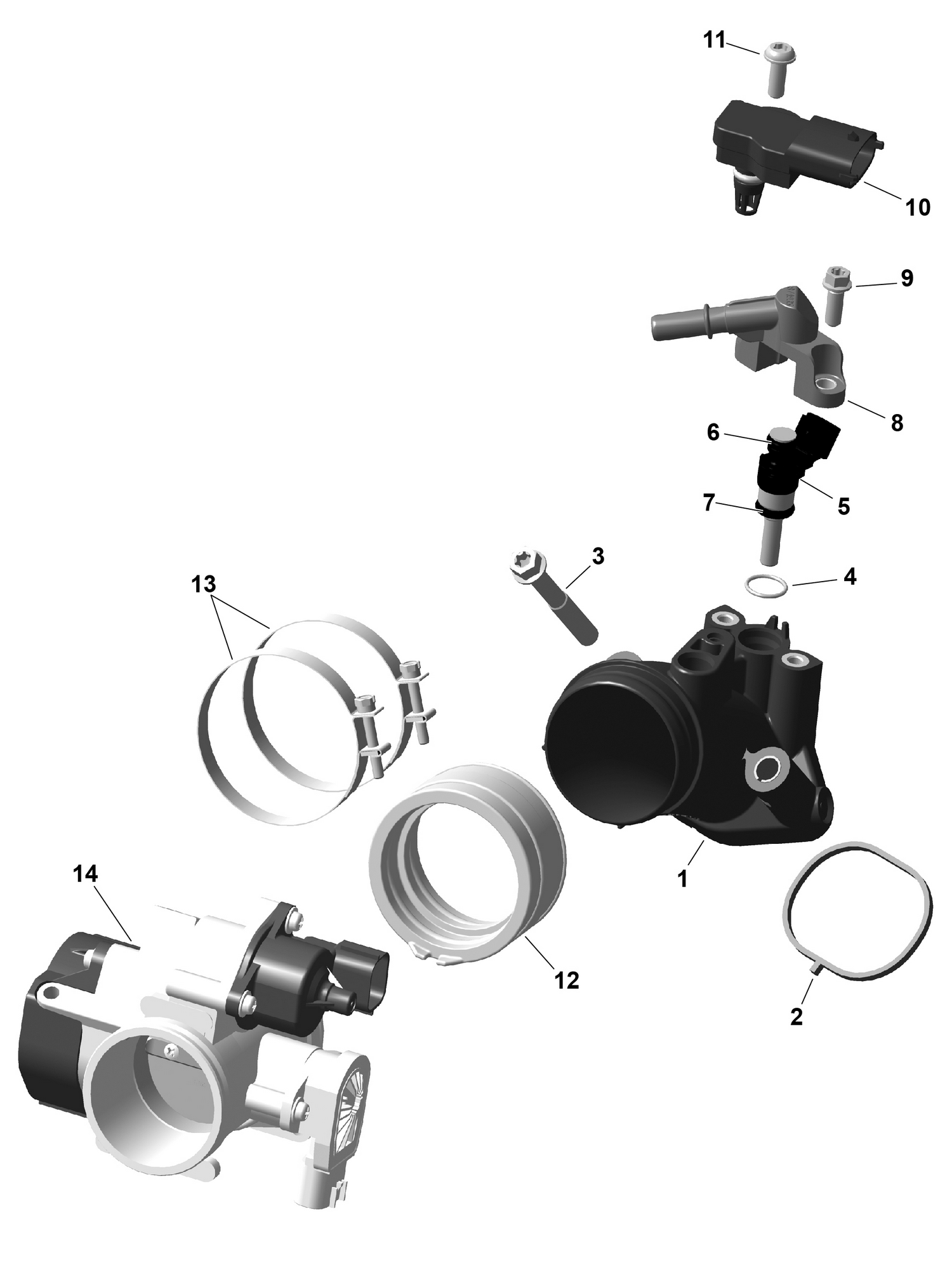

01- Rotax - Air Intake Manifold And Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Air Intake Manifold
420267552
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Gasket
420630655
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
Torx Flange Screw M8 X 55
420440397
Superseded by 420641213
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-Ring
420230451
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
Fuel Injector EV-SE
420874859
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Fuel Injector Gasket Kit
420684159
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#8
Fuel Rail
420874935
|
$17.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
Torx Flange Screw M6 X 16
420440164
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
Pressure And Temperature Sensor
420874658
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Flange Screw M6 X 16
420641588
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
Intake Adaptor
420267480
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Clamp 63
420851086
|
$12.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
Throttle Body Ass'y
420685381
|
$646.49 | ||
|
Available to order. Add to View Price |
|||
