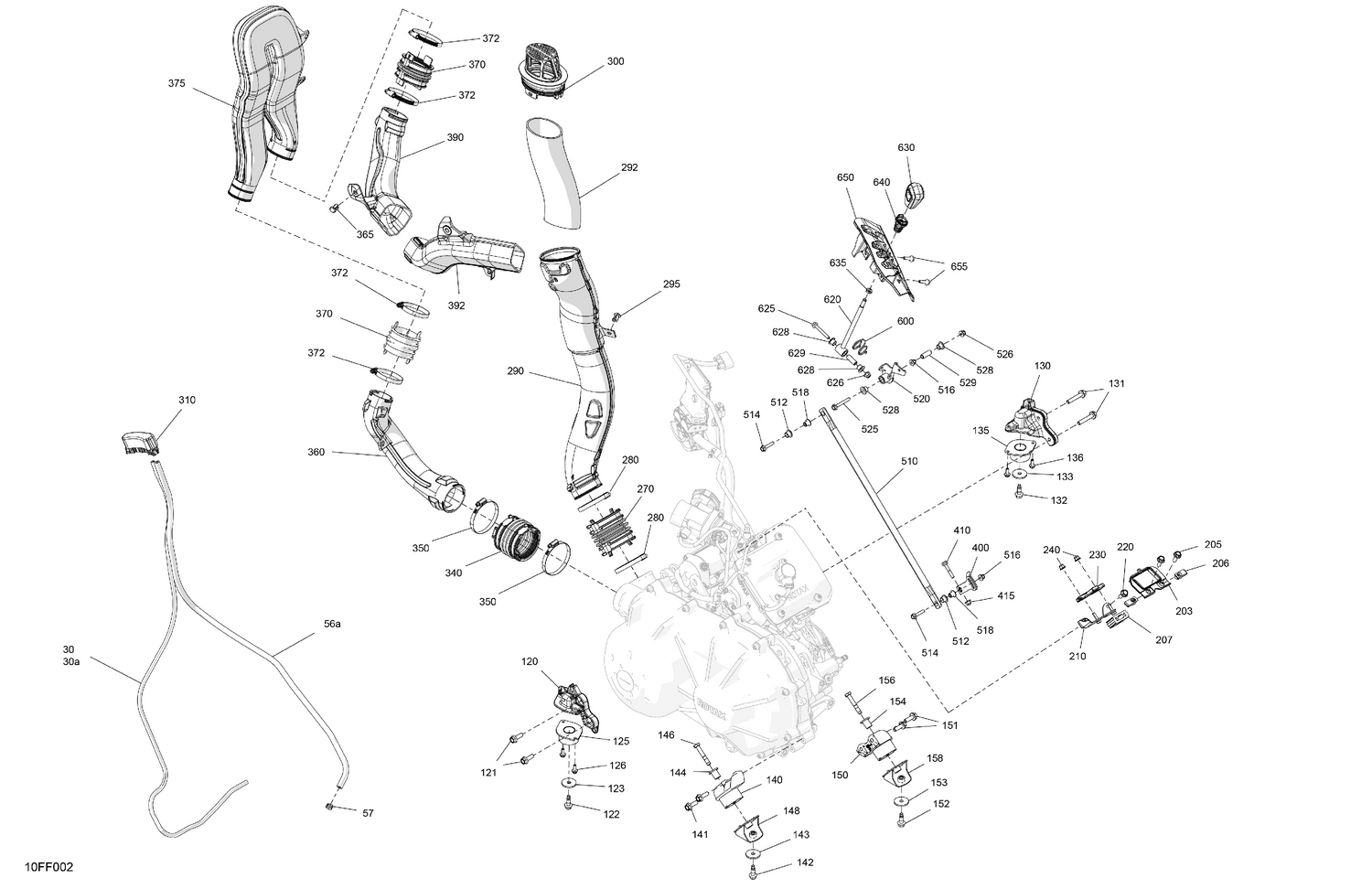

02- Engine - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#30
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#56a
Hose 6.35MM ID
219704534
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
Spring Clamp
414415200
|
$0.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
LH Front Engine Support
707003100
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#121
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#122
Hex Screw M8 S.Grip
250001085
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#123
Washer
250200203
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#125
Rubber Mount
707003618
|
$59.99 | ||
|
Unavailable |
|||
|
#126
Hex. Flange Screw M6 X 16
210261640
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#130
RH Front Engine Support
707003099
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#131
Hex. Flange Screw M8 X 45, Scotch Grip
207584544
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#132
Hex Screw M8 S.Grip
250001085
|
$1.69 | ||
|
Unavailable |
|||
|
#133
Washer
250200203
|
$2.11 | ||
|
Unavailable |
|||
|
#135
Rubber Mount
707003618
|
$59.99 | ||
|
Unavailable |
|||
|
#136
Hex. Flange Screw M6 X 16
210261640
|
$2.19 | ||
|
Unavailable |
|||
|
#140
Engine Support Ass'y
707003102
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#141
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
|
$1.69 | ||
|
Unavailable |
|||
|
#142
Hex Screw M8 S.Grip
250001085
|
$1.69 | ||
|
Unavailable |
|||
|
#143
Washer
250200203
|
$2.11 | ||
|
Unavailable |
|||
|
#144
Flanged Bushing
707003104
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#146
Hex. Screw M8 X 50, Scotch Grip
207285060
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#148
Support
707003105
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Engine Support Ass'y
707003102
|
$80.99 | ||
|
Unavailable |
|||
|
#151
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
|
$1.69 | ||
|
Unavailable |
|||
|
#152
Hex Screw M8 S.Grip
250001085
|
$1.69 | ||
|
Unavailable |
|||
|
#153
Washer
250200203
|
$2.11 | ||
|
Unavailable |
|||
|
#154
Flanged Bushing
707003104
|
$5.08 | ||
|
Unavailable |
|||
|
#156
Hex. Screw M8 X 50, Scotch Grip
207285060
|
$2.19 | ||
|
Unavailable |
|||
|
#158
Support
707003105
|
$10.49 | ||
|
Unavailable |
|||
|
#203
Stopper
707003420
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#205
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#206
Panel Nut M8 X 1.25
250100118
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#207
Rubber Stopper
707003419
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#210
Engine Stopper
707003856
|
$5.59 | ||
|
Unavailable |
|||
|
#220
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#230
Engine Stopper
705212811
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#240
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#270
Duct Fitting
707002414
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#280
Gear Clamp
293650369
|
$3.28 | ||
|
Unavailable |
|||
|
#290
CVT Cooling Duct IN
707002859
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#292
Acoustic Insulation
706600408
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#295
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300
End Piece
707002886
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#310
Hose Support
707002889
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#340
Duct Fitting
707002573
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#350
Gear Clamp
293650366
|
$4.99 | ||
|
Unavailable |
|||
|
#360
CVT Cooling Duct Out
707002820
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#365
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#370
Duct Fitting
707002655
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#372
Gear Clamp
293650366
|
$4.99 | ||
|
Unavailable |
|||
|
#375
CVT Cooling Duct Out
707002821
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#390
CVT Cooling Duct Out
707002823
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#392
CVT Cooling Duct Out
707002824
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#400
Clutch Lever
707002505
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#410
Hex. Flange Screw M6 X 35
207663544
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#415
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
Unavailable |
|||
|
#510
Link Rod
707003444
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#512
Flanged Bushing
707003072
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#514
Hex. Flange Screw M6 X 30, Scotch Grip
207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#516
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
Unavailable |
|||
|
#518
Flanged Bushing
707002672
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#520
Clutch Lever
707002809
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#525
Hex. Flange Screw
207664554
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#526
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
Unavailable |
|||
|
#528
Flanged Bushing
707003072
|
$1.25 | ||
|
Unavailable |
|||
|
#529
Bushing
707002803
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#600
Torsion Spring
707002804
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#620
Gearshift Lever
707002805
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#625
Hex. Flange Screw
207664554
|
$2.19 | ||
|
Unavailable |
|||
|
#626
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
Unavailable |
|||
|
#628
Flanged Bushing
707003072
|
$1.25 | ||
|
Unavailable |
|||
|
#629
Bushing
707002803
|
$5.24 | ||
|
Unavailable |
|||
|
#630
Shift Lever Tip
707003177
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#635
Hexagonal Jam Nut M8
232180461
|
$7.69 | ||
|
Unavailable |
|||
|
#640
Trim
707003633
|
$15.49 | ||
|
Unavailable |
|||
|
#650
Shift Lever Grille
707003665
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#655
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
