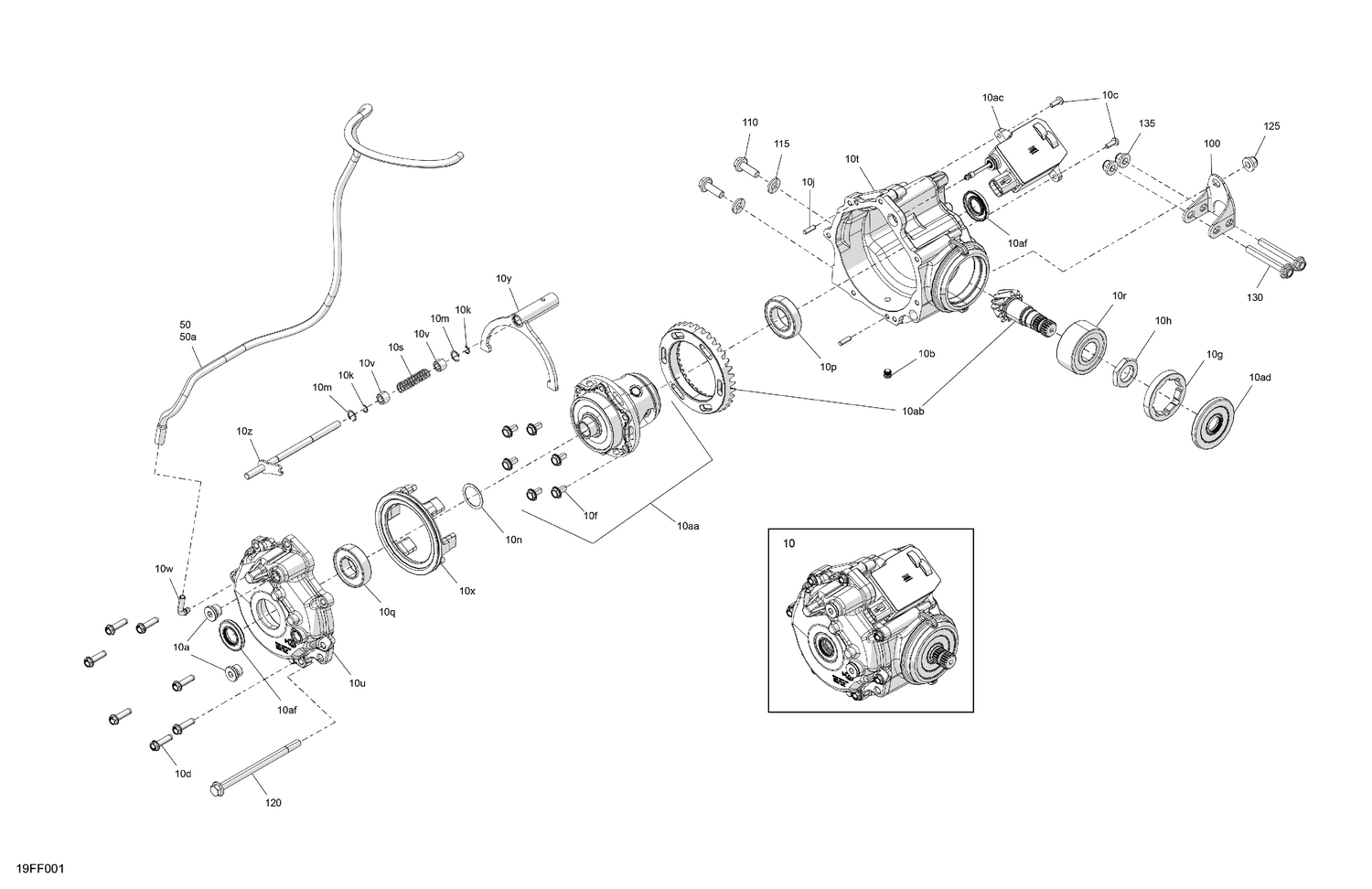

04- Drive - Front - Differential Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Front Differential Ass'y
705403884
|
$1,377.99 | ||
|
Unavailable |
|||
|
#10a
Fill Level Plug
705501889
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Fill Level Plug M10
715900563
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#10c
Torx Screw M6 X 16
705402845
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#10d
Custom Hex Screw Flange Head M10 x 30
715900799
|
|||
|
Unavailable |
|||
|
#10f
Custom Hex Screw Flange Head
715900798
|
$2.99 | ||
|
Unavailable |
|||
|
#10g
Nut M75 X 1.5
705401819
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10h
Nut M27 X 1.5
705401820
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10j
Dowel Pin
715900559
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#10k
Ring External Shaft
715900719
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10m
Ring, Internal Spiral Housing
715900720
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10n
Shim
705401604
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#10p
Ball Bearing
705402847
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10q
Ball Bearing
705401606
|
$51.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10r
Ball Bearing
715900721
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#10s
Spring
715900722
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#10t
Cover
715901022
|
$144.99 | ||
|
Unavailable |
|||
|
#10u
Cover
715901018
|
$144.99 | ||
|
Unavailable |
|||
|
#10v
Bushing
715900725
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10w
Vent Valve
705401935
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10x
Ring Gear Connector
715900819
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#10y
Disconnect Fork
715900727
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#10z
Shift Rail
715900728
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10aa
Differential Sub-Assembly
715900729
|
$932.99 | ||
|
Available to order. Add to View Price |
|||
|
#10ab
Ring Gear And Pinion Set
715900820
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#10ac
Actuator
715900953
|
$234.99 | ||
|
Unavailable |
|||
|
#10ad
Oil Seal, Triple Lip 25 X 79 X 8
705401827
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10af
Oil Seal
705401836
|
$7.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#50a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#100
Support
705402706
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Screw M10 X 30, Scotch Grip
207503046
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#115
Conical Spring Washer 10 mm
234201474
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Hex. Flange Screw M10 X 160
230606046
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#125
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Hex. Flange Screw M10 X 75
207607544
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#135
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
Unavailable |
|||
