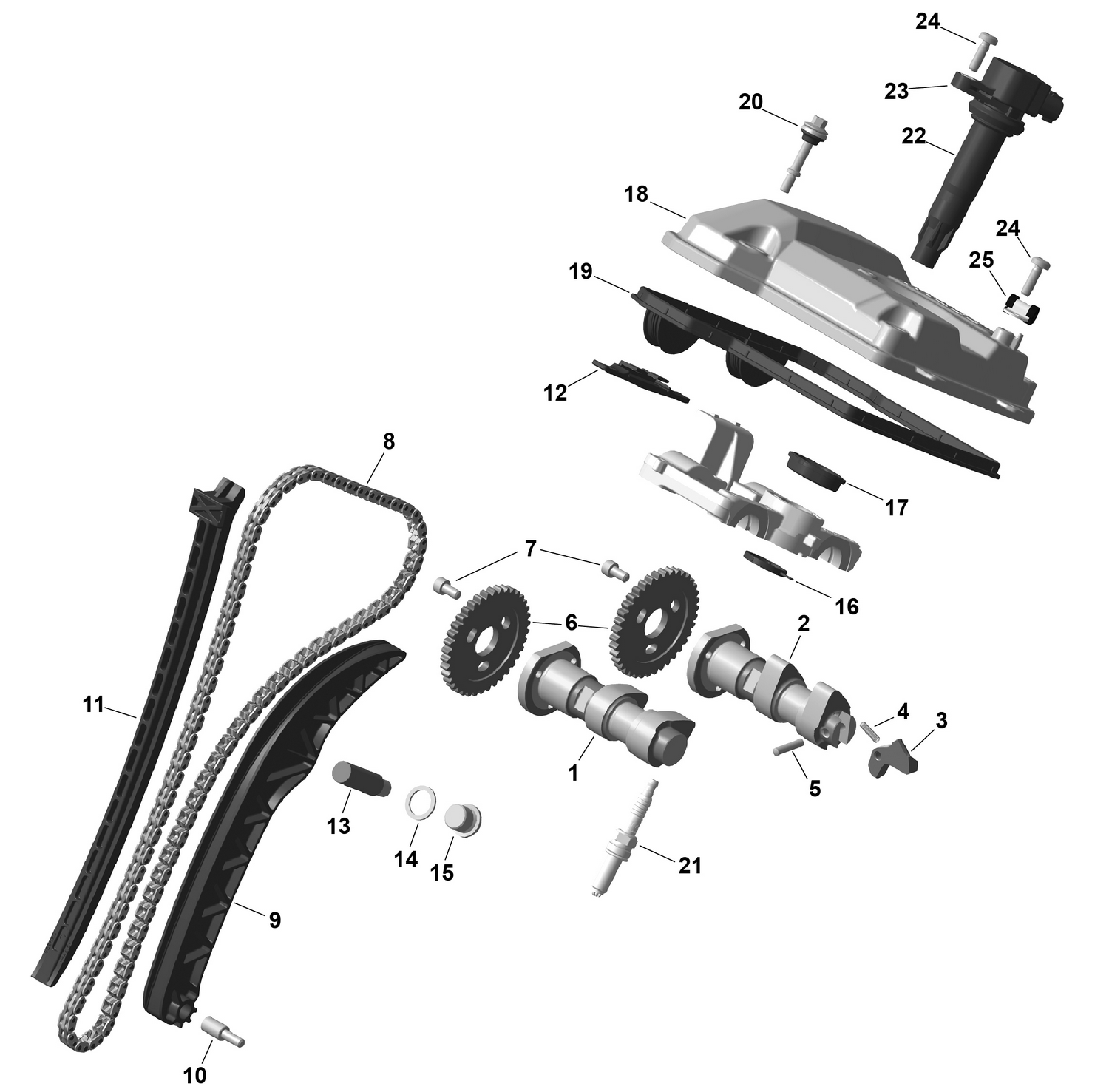

01- Rotax - Valve Train Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Camshaft Intake -5/53
420281655
|
$171.49 | ||
|
Unavailable |
|||
|
#2
Camshaft Exhaust Ass'y
420281579
|
$190.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#4
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#5
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#6
Camshaft Sprocket 38 Teeth
420254446
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Allen Screw M6 X 12
420840032
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Silent Chaine
420297075
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Chain Tension Guide
420936530
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bearing Screw M6
420240945
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
Chain Guide
420936520
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
Upper Chain Guide
420936540
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
Chain Tensioner Ass'y
420236392
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Oil Pressure Regulator Gasket Ring
420430624
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
Plug Screw M16 X 1.5
420240234
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Camshaft Housing Gasket
420431760
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Valve Cover Gasket
420431751
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Valve Cover
420610445
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Gasket
420630281
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex Screw M6 X 30
420440568
|
$8.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Spark Plug NGK LMAR8AI-8
420897096
Superseded by 715900785
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Ignition Coil Ass'y
420666148
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Protection Cap
420201430
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
Torx Flange Screw M6 X 20
420441383
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
Clamp
420853414
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
