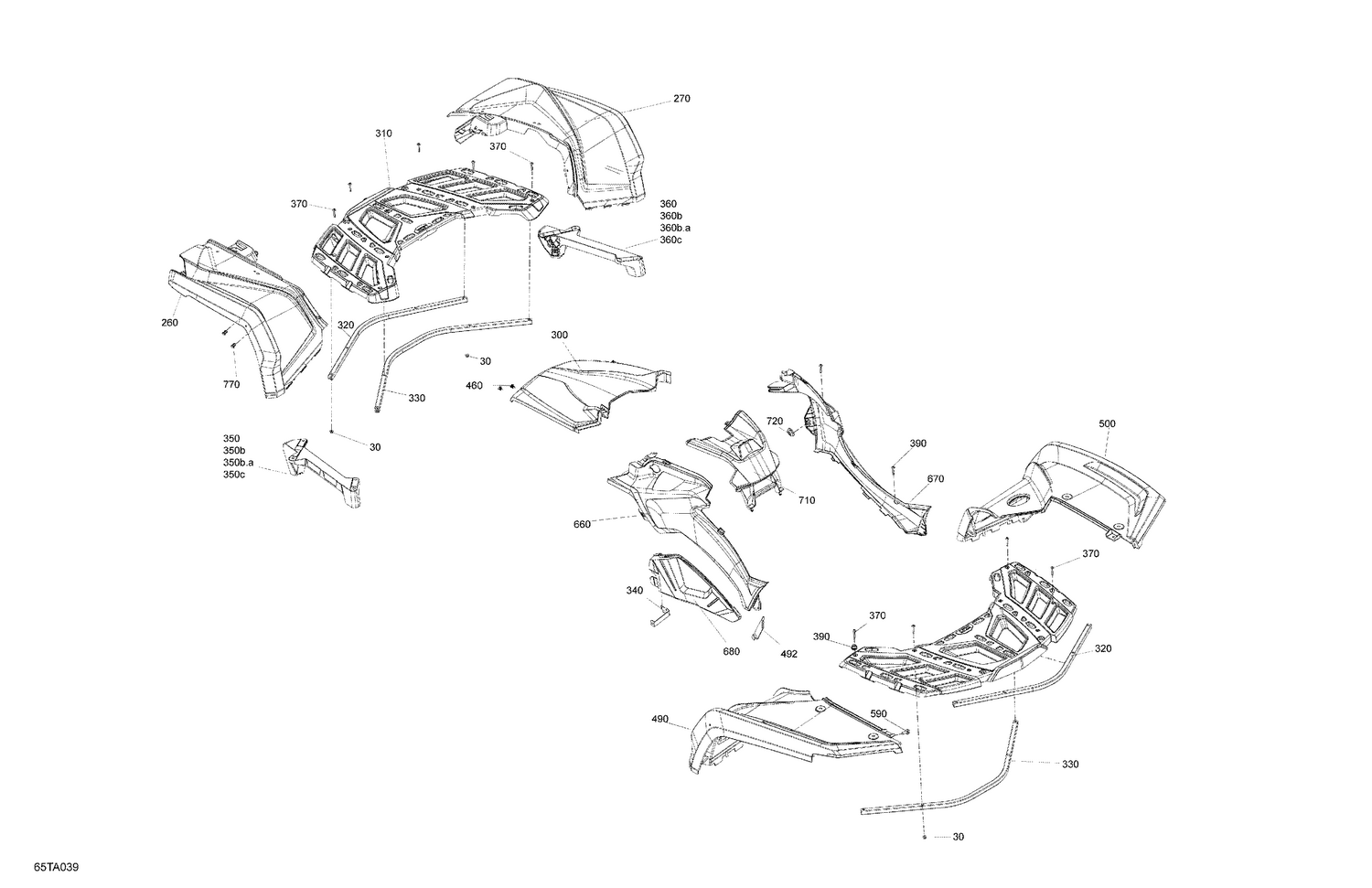

07- Body - Fender Kit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#30
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#260
Squadron Green, LH Front Fender Kit
715007852
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Camo, LH Front Fender Kit
715006922
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Boreal Green, LH Front Fender Kit
715007543
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Mineral Gray Satin, LH Front Fender
715006930
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Granite Grey, LH Front Fender Kit
715007555
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#270
Squadron Green, RH Front Fender Kit
715007856
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#270
Camo, RH Front Fender Kit
715005686
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#270
Boreal Green, RH Front Fender Kit
715007568
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#270
Mineral Gray Satin, RH Front Fender
715006946
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#270
Granite Grey, RH Front Fender kit
715007572
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#300
Squadron Green, Hood Kit
715007860
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#300
Camo, Hood Kit
715005796
|
$819.99 | ||
|
Available to order. Add to View Price |
|||
|
#300
Boreal Green, Hood Kit
715005799
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#300
Timeless Black, Hood Kit
715006987
|
$489.99 | ||
|
Available to order. Add to View Price |
|||
|
#300
Granit Grey, Central Hood Ass'y
715008106
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Luggage Rack Kit
715001852
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Sectional Bent Tube
705016091
Superseded by 705016640
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#330
Bent Sectional Tube
705016092
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#340
Lugage Rack Moulding
705004523
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#350
LH Support Luggage Rack Ass'y
705011553
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#350b
Elastic Nut Housing M8
269501943
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#350b.a
Hex. Elastic Nut M8 Brass
232581200
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#350c
Hex. Elastic Stop Nut M6
232561600
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#360
RH Support Luggage Rack Ass'y
705011555
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#360b
Elastic Nut Housing M8
269501943
|
$6.67 | ||
|
Unavailable |
|||
|
#360b.a
Hex. Elastic Nut M8 Brass
232581200
|
$1.49 | ||
|
Unavailable |
|||
|
#360c
Hex. Elastic Stop Nut M6
232561600
|
$1.19 | ||
|
Unavailable |
|||
|
#370
Black, Torx Screw M6 X 35
250000646
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#390
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#460
Edge Clip
517302785
|
$0.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#490
Granit Gray, LH Rear Fender
715007066
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#490
Squadron Green, LH Rear Fender Kit
715007858
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#490
Camo, LH Rear Fender Kit
715005767
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#490
Break
Up Country, LH Rear Fender
705013851
Superseded by 705014391
|
|||
|
Unavailable |
|||
|
#490
Breakup Country Camo, LH Rear Fender
715007635
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#490
Mineral Gray Satin, LH Rear Fender
715006961
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#490
Granite Gray, LH Rear Fender
715007639
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#492
Heat Shield
707002457
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#500
Squadron Green, RH Rear Fender
705013846
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#500
Camo, RH Rear Fender Kit
705013852
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#500
Boreal Green, Rear Fender
705013875
Superseded by 705014394
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#500
Mineral Gray Satin, RH Rear Fender
705014483
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#500
Granite Grey, RH Rear Fender
705014396
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#590
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#660
Squadron Green, LH Lateral Panel
705009760
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#660
Camo, LH Lateral Pannel
705009903
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#660
Boreal Green, LH Panel
705013241
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#660
Mineral Gray Satin, LH Panel Central
705014484
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#660
Granite Grey, LH Central Body Panel
705016111
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#670
Squadron Green, RH Lateral Panel
705009764
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#670
Camo, RH Lateral Pannel
705009912
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#670
Boreal Green, RH Panel
705013242
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#670
Mineral Gray Satin, RH Panel Central
705014485
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#670
Granite Grey, RH Central Body Panel
705016114
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#680
Deflector Body Panel Kit
715007294
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#710
Dash Kit
715005837
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#720
Grommet
705003264
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#770
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
