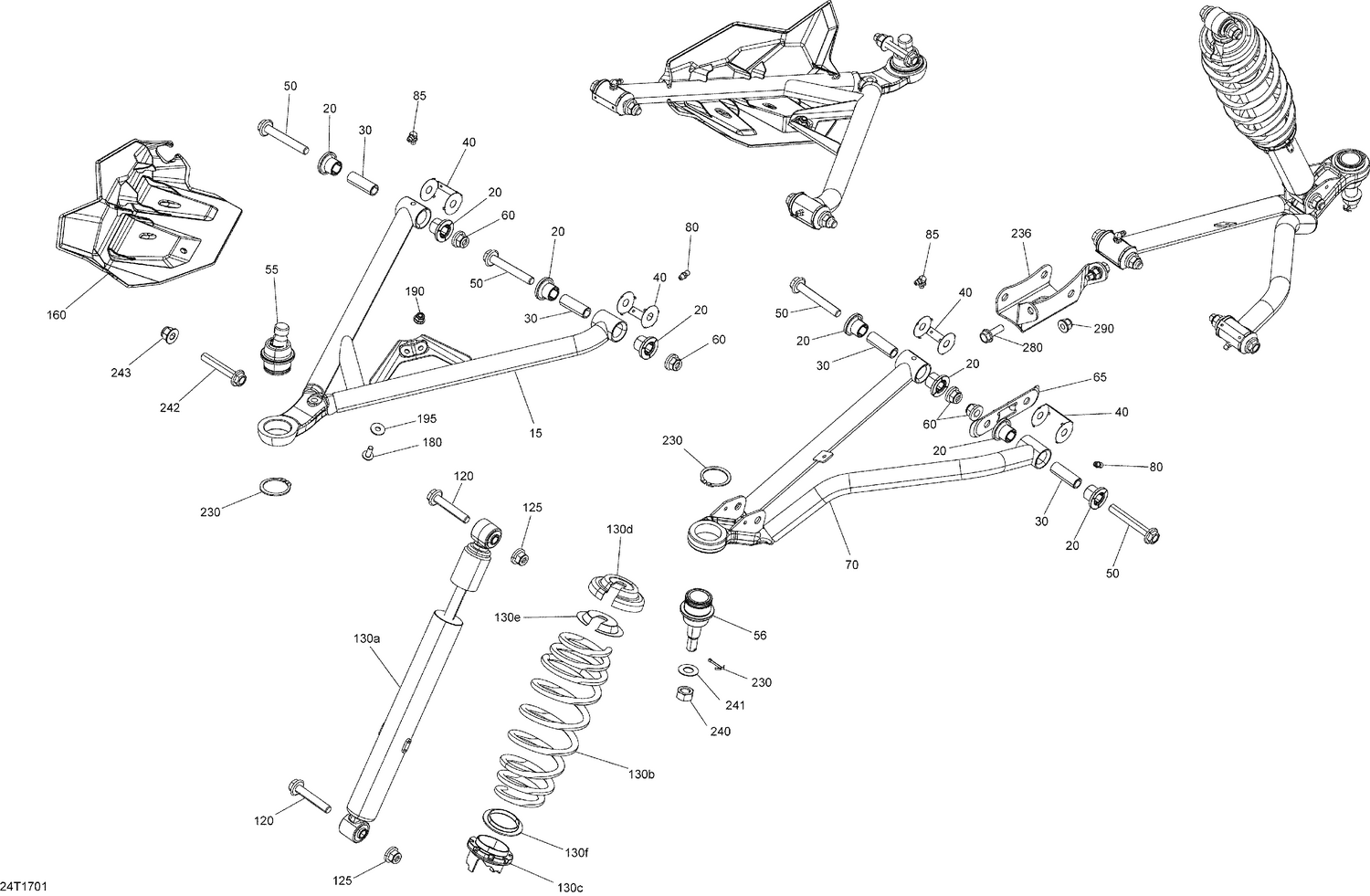

07- Front Suspension - All Models Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#15
LH Lower Suspension Arm
706201874
Superseded by 706204639
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Black, RH Lower Arm
706201875
Superseded by 706202870
|
$158.99 | ||
|
Unavailable |
|||
|
#20
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#50
Hex. Flange Screw M10 X 70
207607046
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
Ball Joint
706202045
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
Ball Joint
706202044
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#65
Front Suspension Cross Plate
706200998
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#70
RH Upper Suspension Arm
706201877
Superseded by 706204642
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
LH Upper Suspension Arm
706201876
Superseded by 706204641
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#85
Grease Fitting 90°
293550056
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Hex. Flange Screw M10 X 55
207605546
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#125
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
Unavailable |
|||
|
#130a
Front Shock
706201163
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#130a
Front Shock
706201170
|
$185.49 | ||
|
Available to order. Add to View Price |
|||
|
#130a
Front Shock
706202499
|
$185.49 | ||
|
Available to order. Add to View Price |
|||
|
#130b
BLACK SPRING - Call your local BRP dealership
706201814
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#130b
Deep Black, Compression Spring
706202629
Superseded by 706205113
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#130b
Black, Spring
706202394
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#130b
SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership
706202576
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#130c
Adjuster Ring
706002356
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#130c
Adjustment Cam
505073625
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#130d
Spring Stopper
706200881
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#130e
Cap
706200785
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#130f
Spring Guide
503187500
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
LH Joint Protector
706201829
Superseded by 706202808
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#160
RH Joint Protector
706201830
Superseded by 706202809
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#180
Torx Screw M6 X 16
250000755
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#190
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#195
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#230
Circlip
293370035
|
$2.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#236
Upper Front Holder
705203247
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#240
Nut M12
250100099
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#241
Hardened Washer
250200086
Superseded by 706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#242
Hex. Flange Screw M10 X 60
207606044
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#243
Hex. Flange Elastic Nut M10
233201434
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#250
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#280
Hex. Flange Screw M8 X 25
207682534
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#290
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
