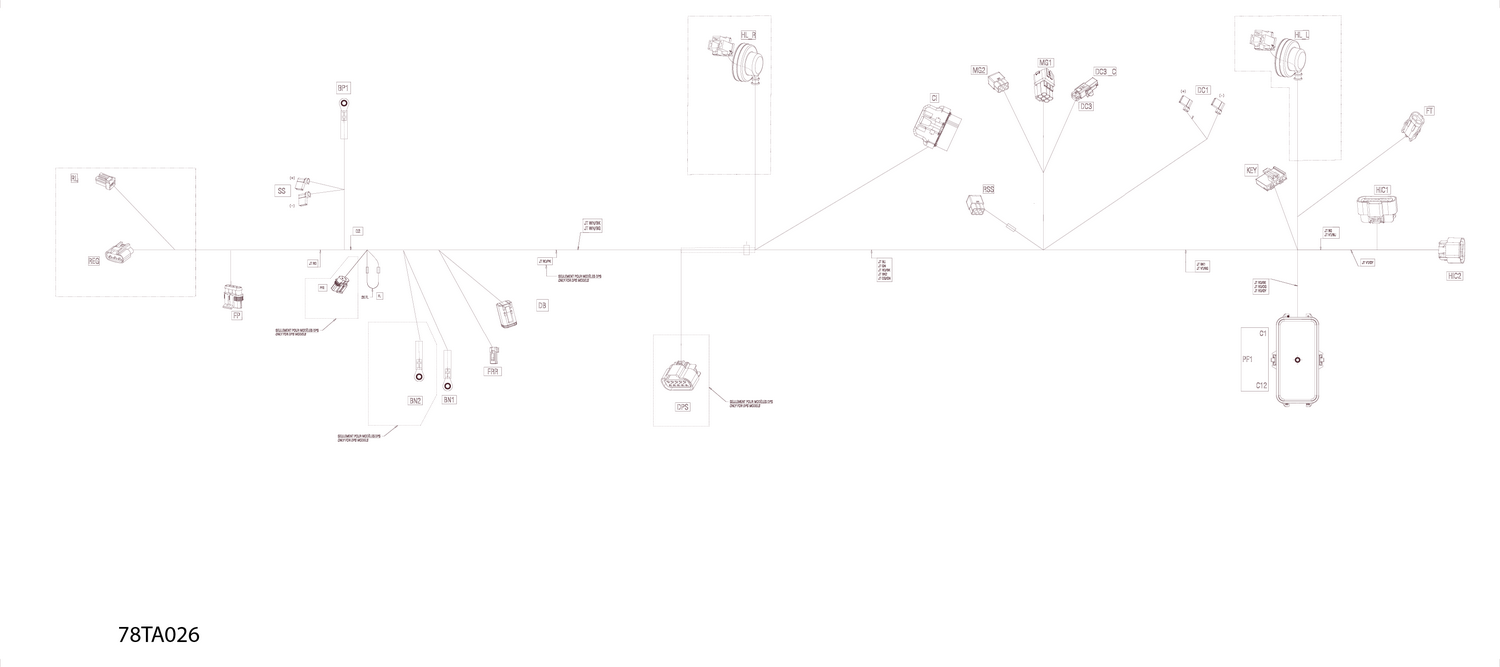

08- Electric - Main Harness - 710006172 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#200
Electric Harness
710006172
|
$989.99 | ||
|
Available to order. Add to View Price |
|||
|
#BN1
Terminal
710000913
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#BN2
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#BP1
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Unavailable |
|||
|
#CI
Female Housing, 24 Circuits
515175801
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Retainer Block
515175802
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Plug
515175812
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Female Housing
710000399
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Wire Seal
515175803
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Female Terminal
710001131
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#D2
Diode
409012700
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Female Housing 6 Circuits
710002706
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Lock
710002705
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Plug
710005437
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Female Terminal
710005438
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Female Terminal
710005439
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC1
Female Terminal
409010300
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3
Female Terminal
515175231
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3_C
Male Housing, 2 Circuits
710000667
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Female Housing
710004989
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Lock
710005098
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Lock
710001222
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Plug
710002075
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Wire Seal
278002186
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Seal
710001860
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Female Terminal
278002187
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Terminal
710001765
Superseded by 710001873
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#F12
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#F4
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#F5
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#F8
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#F9
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Unavailable |
|||
|
#FL-1
Wire-Fuse 31-40 AMP
715003119
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#FL-2
Wire-Fuse 31-40 AMP
715003119
|
$26.49 | ||
|
Unavailable |
|||
|
#FP
Female Housing, 4 Circuits
409209700
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Wire Seal
515176621
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Female Terminal
710001340
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#FRR
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Unavailable |
|||
|
#FRR
Female Terminal
710003896
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#FT
Clip Bracket Connector (edge)
409210100
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#FT
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FT
Wire Seal
278000218
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FT
Male Terminal
409004300
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#HIC1
Housing
710001226
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#HIC1
Lock
710001222
|
$2.19 | ||
|
Unavailable |
|||
|
#HIC1
Seal
710001233
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC1
Terminal
710001229
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC2
Housing
710001928
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#HIC2
Lock
710001222
|
$2.19 | ||
|
Unavailable |
|||
|
#HIC2
Seal
710001233
|
$3.29 | ||
|
Unavailable |
|||
|
#HIC2
Seal Wire
710001332
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC2
Terminal
710001229
|
$3.29 | ||
|
Unavailable |
|||
|
#HIC2
Terminal
710001228
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HL_L
Female Housing
710004010
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#HL_L
Headlamp Protector Cap
710004020
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#HL_L
Terminal
515177217
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#HL_R
Female Housing
710004010
|
$6.79 | ||
|
Unavailable |
|||
|
#HL_R
Headlamp Protector Cap
710004020
|
$11.49 | ||
|
Unavailable |
|||
|
#HL_R
Terminal
515177217
|
$16.49 | ||
|
Unavailable |
|||
|
#KEY
Male Housing, 6 Circuits
710000849
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#KEY
Lock
710000848
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#KEY
Terminal
710001635
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#KEY
Female Terminal
710006126
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#MG1
Male Terminal Housing, 6 Circuits
710000835
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#MG1
Cap
710000080
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#MG1
Wire Seal
710000402
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#MG1
Male Terminal
409011300
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#MG2
Female Housing, 6 Circuits
710000081
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#MG2
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#MG2
Seal
409012300
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#MG2
Female Terminal
409012100
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Fuse Box Base Ass´y
710000660
Superseded by 415129856
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Cap
710000840
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Wire Seal
278000999
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#PF1
Seal
415128501
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
515177009
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
515177012
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#PF1_C
Fuse Cover
710001026
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1_C
Fuse Shematic Decal
710003976
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#PF1_C
Foam
278002172
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1_C
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1_C
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Unavailable |
|||
|
#PF2
Clip
710000992
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Fuse Holder Cap
278001326
|
$7.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#PF2
Fuse Holder
278001325
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Female Terminal
710000113
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Female Housing, 3 Circuits
278003517
Superseded by 710000879
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Seal
710000881
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Female Terminal
710000877
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#RL
Female Housing, 3 Circuits
515175495
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#RL
Female Terminal
710003896
|
$2.29 | ||
|
Unavailable |
|||
|
#RSS
Female Housing, 6 Circuits
710000081
|
$8.79 | ||
|
Unavailable |
|||
|
#RSS
Cap
710000080
|
$8.49 | ||
|
Unavailable |
|||
|
#RSS
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#RSS
Female Terminal
409012100
|
$4.69 | ||
|
Unavailable |
|||
|
#RY1
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#RY2
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#RY3
Relay, 30 AMP
515176774
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#RY4
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#RY8
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#SS
Female Terminal
409010300
|
$4.49 | ||
|
Unavailable |
|||
