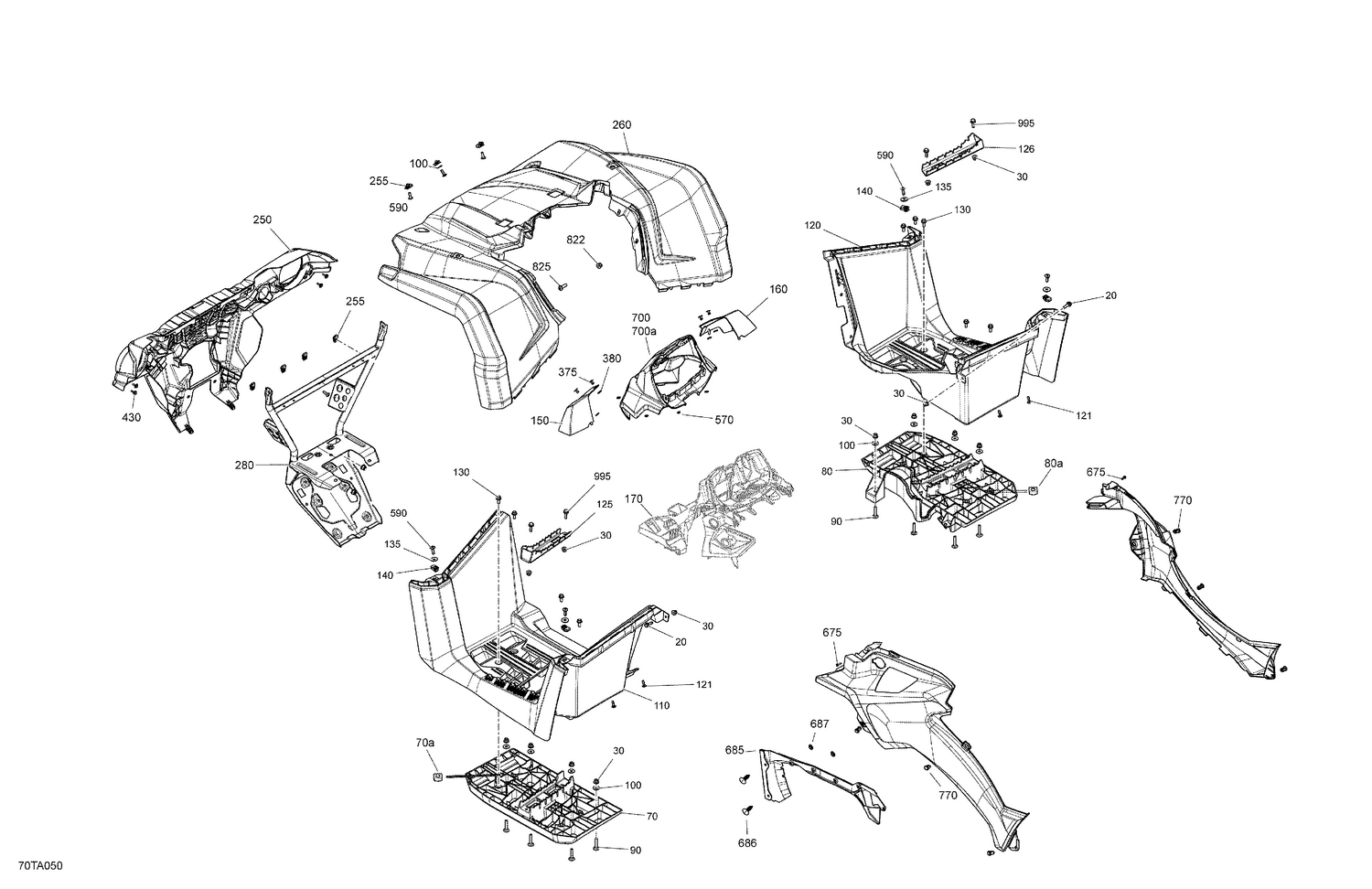

07- Body - Front Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#20
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#70
LH Structural Footboard
705011540
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#70a
Square Nut M6
232862412
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
RH Structural Footboard
705011542
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#80a
Square Nut M6
232862412
|
$1.49 | ||
|
Unavailable |
|||
|
#90
Carriage Bolt M6 X 35
207763554
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#100
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#110
LH Step
705007040
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
RH Step
705007039
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#121
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#125
LH Footrest
705004352
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#126
RH Footrest
705005395
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
Unavailable |
|||
|
#135
Flat Washer
224061201
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#140
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#150
LH Air Deflector
705006134
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
RH Air Deflector
705006135
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#170
Console Support Ass'y
715006101
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#250
Front Facia
705009334
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#255
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#260
Granit Gray, LH Front Fender
715007044
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#280
Front Frame
705009256
Superseded by 705017337
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#375
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#380
Washer
517124300
|
$0.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#430
Screw M4 X 16
250000725
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#570
Push Nut
732610072
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#590
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#675
Phillips Screw K40 X 16
250000723
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#685
Deflector Body Panel
705014061
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#686
Push Nut
732610072
|
$2.29 | ||
|
Unavailable |
|||
|
#687
Black, Dart
293730006
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#700
Gage Support
705010139
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#700a
Gage Support
705007066
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#770
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#822
Elastic Flange Nut M8
233281464
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#825
Pan Torx Screw M8 X 25
250000898
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#995
Hex. Flange Screw M6 X 20
207662034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
