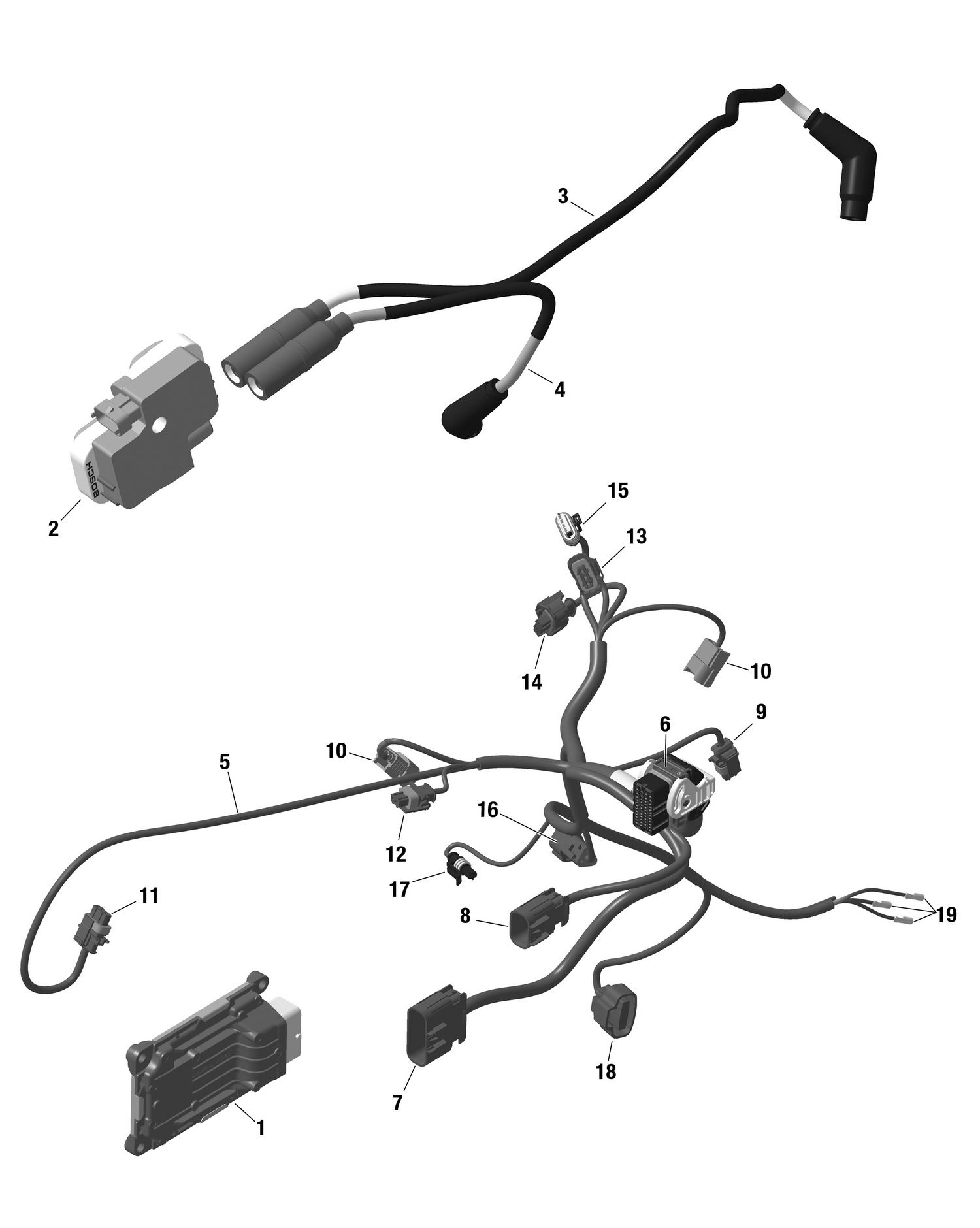

01- Rotax - Engine Harness And Electronic Module Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Electronic Box
420464298
Superseded by 420666283
|
$749.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Ignition Coil
278001546
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#2a
Housing
710000568
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Spark Plug Cable, 600 mm, PTO SAE
420464162
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Spark Plug Cable, 315 mm, MAG SAE
420464152
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Wiring Harness
420264798
|
$549.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#7
Housing
710001227
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
Housing
710001927
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Male Housing, 2 Circuits
278001005
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#12
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#13
Housing Connector, 3 Circuits
278001829
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Male Connector
515176410
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#16
Male Housing
278002378
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Male Housing, 1 Circuit
278001012
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Male Housing, 4 Circuits
710000329
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
Insulated Sheath
278001007
|
$3.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Male Housing, 3 Circuits
278000997
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
