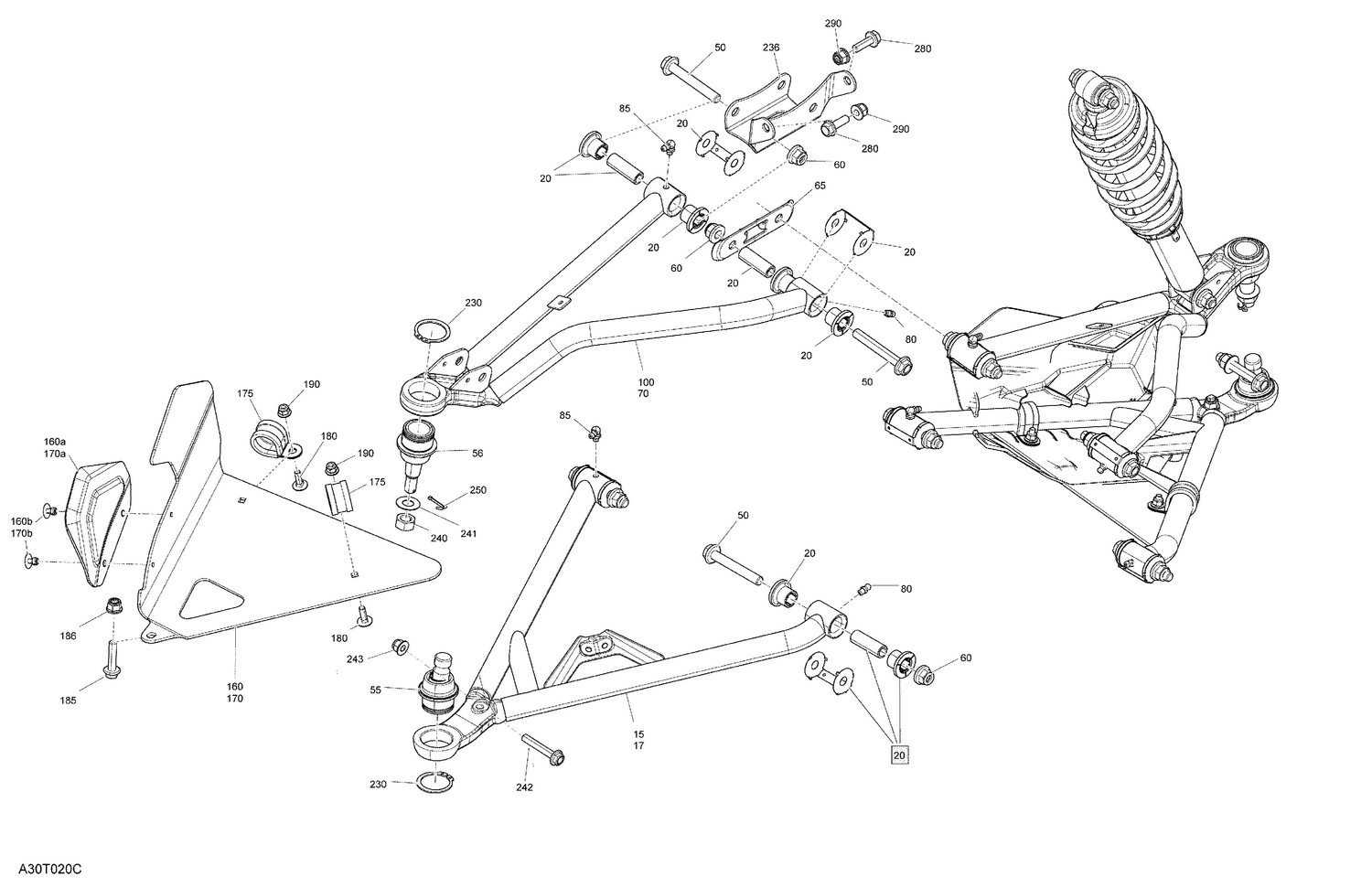

05- Suspension - Front - Mossy Oak Edition Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#15
LH Lower Suspension Arm
706202869
Superseded by 706204639
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Black, RH Lower Arm
706202870
|
$158.99 | ||
|
Unavailable |
|||
|
#20
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Hex. Flange Screw M10 X 70
207607046
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
Ball Joint
706202045
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
Ball Joint
706202044
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#65
Front Suspension Cross Plate
706200998
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#70
RH Upper Suspension Arm
706201877
Superseded by 706204642
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#85
Grease Fitting 90°
293550056
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#100
LH Upper Suspension Arm
706201876
Superseded by 706204641
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
A Arm Protector Kit
715001667
|
$165.99 | ||
|
Unavailable |
|||
|
#160a
RH PROTECTOR - Call your local BRP dealership
706201186
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#160b
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#170
A Arm Protector Kit
706201633
Superseded by 715001667
|
$165.99 | ||
|
Unavailable |
|||
|
#170a
LH PROTECTOR - Call your local BRP dealership
706201185
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#170b
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Unavailable |
|||
|
#175
Hose Anchor
709200036
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#180
Carriage Bolt M6 X 20
207762044
|
$1.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#185
Hex. Flange Screw M8 X 35
207683544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#186
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#190
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Unavailable |
|||
|
#230
Circlip
293370035
|
$2.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#236
Upper Front Holder
705203247
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#240
Nut M12
250100099
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#241
Hardened Washer
250200086
Superseded by 706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#242
Hex. Flange Screw M10 X 60
207606044
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#243
Hex. Flange Elastic Nut M10
233201434
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#250
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#280
Hex. Flange Screw M8 X 25
207682534
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#290
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
