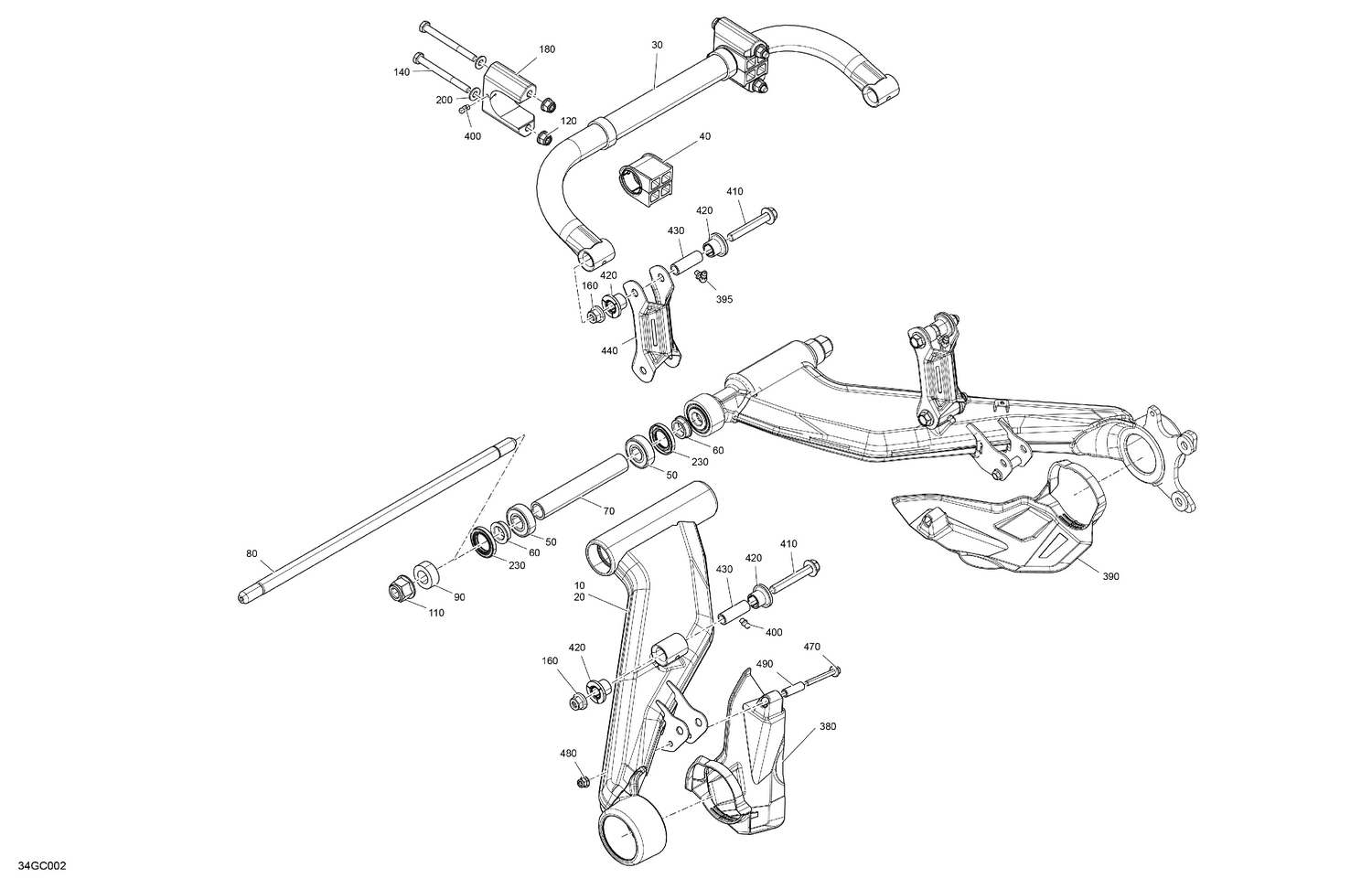

05- Suspension - Rear Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Black, LH Rear Swing Arm
706001646
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Black, RH Rear Swing Arm
706004525
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Sway Bar
706001678
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Stabilizer Bar Bushing
706004640
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#50
Ball Bearing
293350145
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#60
Spacer
706001282
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Spacer
706002258
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Axial Pivot M16
706001664
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Flat Washer M17
250200112
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Elastic Nut M16
233211466
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#140
Hex. Screw M8 X 85
250001035
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180
Bushing Holder
706001099
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#230
Seal
293200144
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#380
LH Protector
706002482
|
$15.82 | ||
|
Available to order. Add to View Price |
|||
|
#390
RH Protector
706002483
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#395
Grease Fitting 90°
293550056
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#400
Grease Fitting
250000315
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#410
Hex. Flange Screw M10 X 65
207606536
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#420
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#430
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
Unavailable |
|||
|
#440
Sway Bar Linkage
706001020
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#470
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#480
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#490
Bushing
707001376
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
