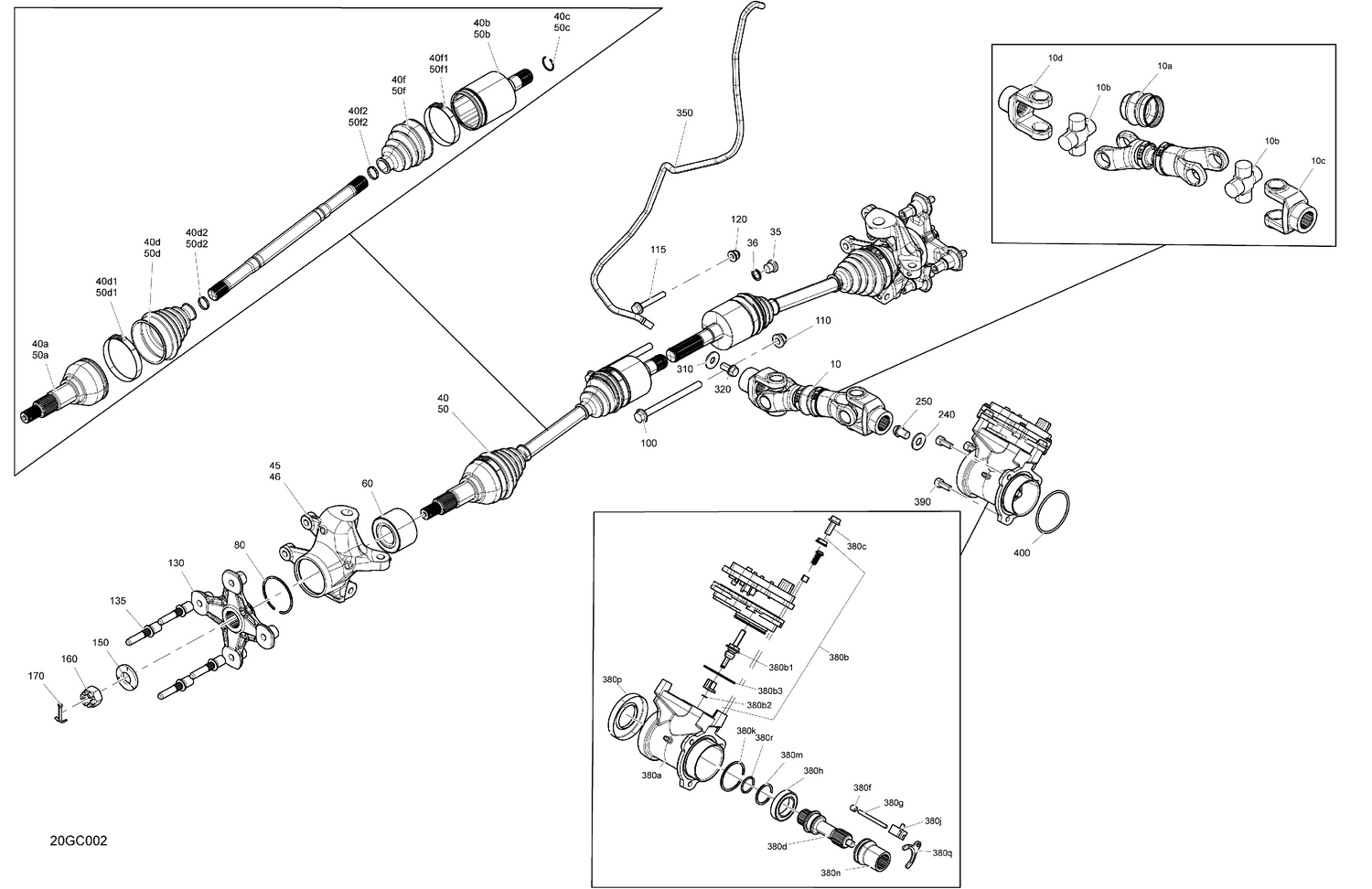

04- Drive - Front - Common Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Front Drive Axle
705403293
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a
Rubber Boot
715900118
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#10b
U-Joint Cross Kit
715900435
|
$78.49 | ||
|
Available to order. Add to View Price |
|||
|
#10c
Fixed Yoke Joint
715900497
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#10d
Yoke Joint
715900498
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Fill Level Plug
705500504
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Copper Washer
705500506
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
RH Front - Premium CV Axle
705401428
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#40a
CV Joint
715900297
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#40b
RH Plunging CV Joint
715900300
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#40c
Circlip Joint
705401349
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#40d
CV Boot Kit, Wheel Side
715900298
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#40d1
Oetiker Clamp, Large
715900262
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#40d2
Oetiker Clamp, Small
715900317
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#40f
CV Boot Kit, Differential Side
715900299
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#40f1
Oetiker Clamp, Large
715900318
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#40f2
Oetiker Clamp, Small
715900317
|
$11.99 | ||
|
Unavailable |
|||
|
#45
LH Knuckle
705403197
Superseded by 705403307
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
RH Knuckle
705403199
Superseded by 705403308
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
LH Front - Premium CV Axle
705401429
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#50a
CV Joint
715900297
|
$259.49 | ||
|
Unavailable |
|||
|
#50b
LH Plunging CV Joint
715900301
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#50c
Circlip Joint
705401349
|
$6.50 | ||
|
Unavailable |
|||
|
#50d
CV Boot Kit, Wheel Side
715900298
|
$42.49 | ||
|
Unavailable |
|||
|
#50d1
Oetiker Clamp, Large
715900262
|
$10.99 | ||
|
Unavailable |
|||
|
#50d2
Oetiker Clamp, Small
715900317
|
$11.99 | ||
|
Unavailable |
|||
|
#50f
CV Boot Kit, Differential Side
715900299
|
$42.49 | ||
|
Unavailable |
|||
|
#50f1
Oetiker Clamp, Large
715900318
|
$11.99 | ||
|
Unavailable |
|||
|
#50f2
Oetiker Clamp, Small
715900317
|
$11.99 | ||
|
Unavailable |
|||
|
#60
Ball Bearing
293350150
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Flange Screw M10 X 125
230602546
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#115
Hex. Flange Screw M8 X 55
207685544
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#120
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Wheel Hub
705503257
|
$101.49 | ||
|
Available to order. Add to View Price |
|||
|
#135
Wheel Stud M10 X 1.25
250300055
|
$3.59 | ||
|
Unavailable |
|||
|
#150
Conical Spring Washer M18
250200171
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Castellated Nut M18
232291413
|
$8.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#170
Cotter Pin
250400071
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#240
Flat Washer M12
250200102
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Hex Flange Screw M12 X 16
250001039
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#310
Flat Washer M10
250200014
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#320
Hex Flange Screw M10 X 20 S.Grip
250001046
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#350
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#380a
Machined Housing
705402360
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#380b
Actuator Ass'y
705402090
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#380b1
Fork
705400274
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#380b2
Circlip
293370042
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#380b3
O-Ring
293300117
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#380c
Hex. Flange Screw M8 X 20, Scotch Grip
250000137
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#380d
Idler Shaft Gear
705401509
|
$105.49 | ||
|
Available to order. Add to View Price |
|||
|
#380f
Pressure Screw M8 X 8
206580890
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#380g
Dowell Pin
250400025
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#380h
Ball Bearing
705400249
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#380j
Slider
705402139
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#380k
Circlip
293370029
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#380m
Circlip
293370030
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#380n
Coupling Sleeve
705400389
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#380p
Oil Seal
293250348
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#380q
Shifter Lever Plate
705401553
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#380r
O-Ring
293300179
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#390
Socket Head Screw M8 X 20, Scotch Grip
250000136
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#400
O-Ring
293300091
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
