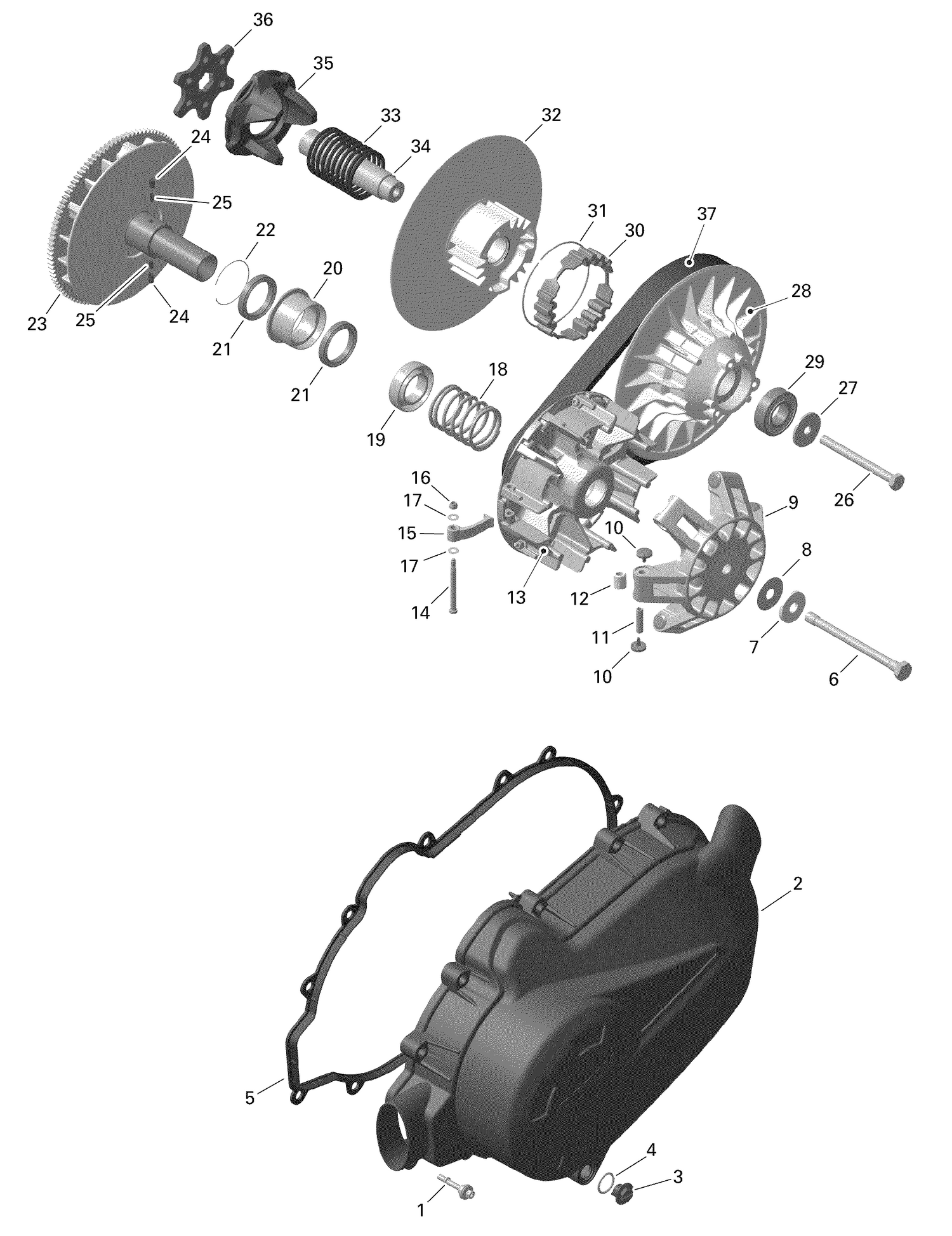

01- Rotax - Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex Screw M6 X 30
420440568
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
CVT Cover Ass'y
420612465
|
$291.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Cap
420441820
|
$11.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-Ring
420250050
|
$10.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
Gasket
420630292
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Screw M12 X 140
420641812
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Spring Washer
420627760
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
Thrust Washer
420627920
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
Governor Cup Ass'y
420280515
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Slider Shoe Set
420281296
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Roller Axle
417223257
|
$7.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Roller
417223767
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Outer Haft
420280467
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Centrifugal Lever Set
420248424
|
$75.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#16
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#17
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#18
Compression Spring
420238166
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Seat Spring
420627577
Superseded by 420627578
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Clutch
420257439
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Ball Bearing
420632375
Superseded by 420632377
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Retaining Ring
420245951
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
Inner Half Ass'y
420280247
|
$381.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Spring Sleeve
420229577
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Compression Spring
420239135
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
Hex. Screw M10 X 110
420441485
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#27
Thrust Washer
420627590
Superseded by 420627594
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Outer Half Pulley Ass'y
420280178
|
$359.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Ball Bearing
420932421
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Torque Gear
420660124
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Retaining Ring
420245911
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#32
Inner Half Ass'y
420248233
|
$308.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Compression Spring, Driven Pulley
420238173
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Driven Pulley Shaft
420220914
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Cam
420280250
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
Cam Plate
420627586
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Drive Belt
422280280
Superseded by 422280283
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
