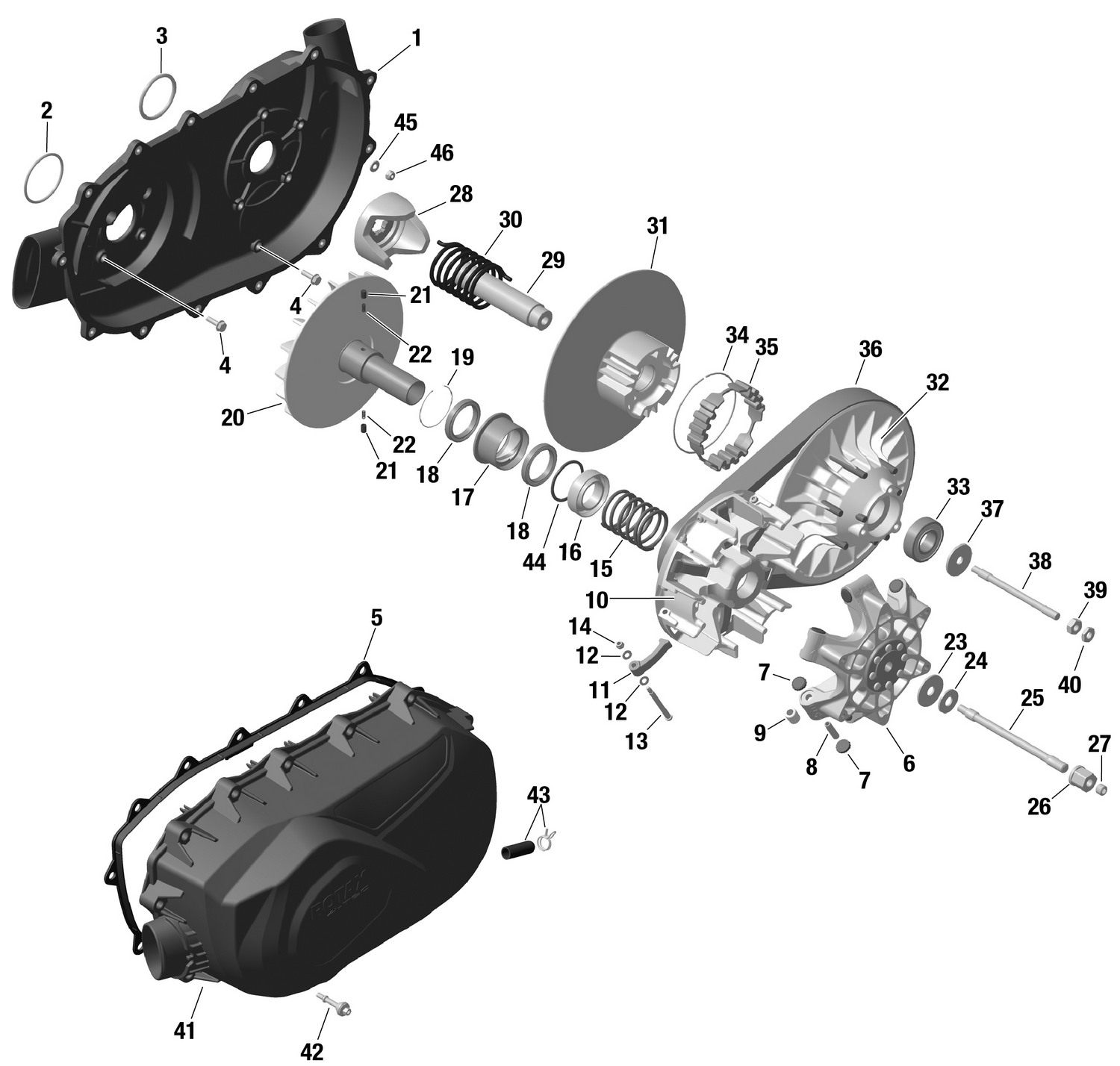

01- Rotax - Cvt Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CVT Air Guide
420612304
|
$194.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
O-Ring
420430408
Superseded by 420430409
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-Ring
420631089
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex.Screw M6 X 20
420441311
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
Gasket
420430126
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Governor Cup
420280664
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Slider Shoe Set
420281296
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Roller Axle
417223257
|
$7.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Roller
417223767
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Outer Haft
420280467
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Lever Set Ass'y
420248682
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#13
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#14
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#15
Compression Spring, Drive Pulley
420238617
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Seat Spring
420627578
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Drive Pulley Clutch
420257195
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Ball Bearing
420632377
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Retaining Ring
420245951
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
Inner Half
420280374
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Spring Sleeve
420229577
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Spring
420239134
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Washer 40 MM
420427061
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Washer 30 MM
420427054
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Stud Screw 12 X 172
420441801
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Socket Set Screw
420242381
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Nut
420441811
|
$14.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
Cam
420280701
|
$153.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Driven Pulley Shaft
420220914
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Compression Spring
420638040
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Inner Half Ass'y
420280786
|
$308.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
Outer Half Pulley Ass'y
420280178
|
$359.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Ball Bearing
420932421
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Retaining Ring
420245911
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#35
Torque Gear
420660124
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
V-Belt
420280360
Superseded by 422280366
|
$179.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
Thrust Washer
420627590
Superseded by 420627594
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
Stud Screw M10 X 136
420441900
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Hexagonal Nut M10
420242098
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#40
Hexagonal Nut M10
420242403
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#41
Variator Cover
420612316
|
$169.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
Hex Screw M6 X 30
420440568
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#43
Drain Plug Kit
707001179
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#44
Friction Washer
420460430
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#46
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
