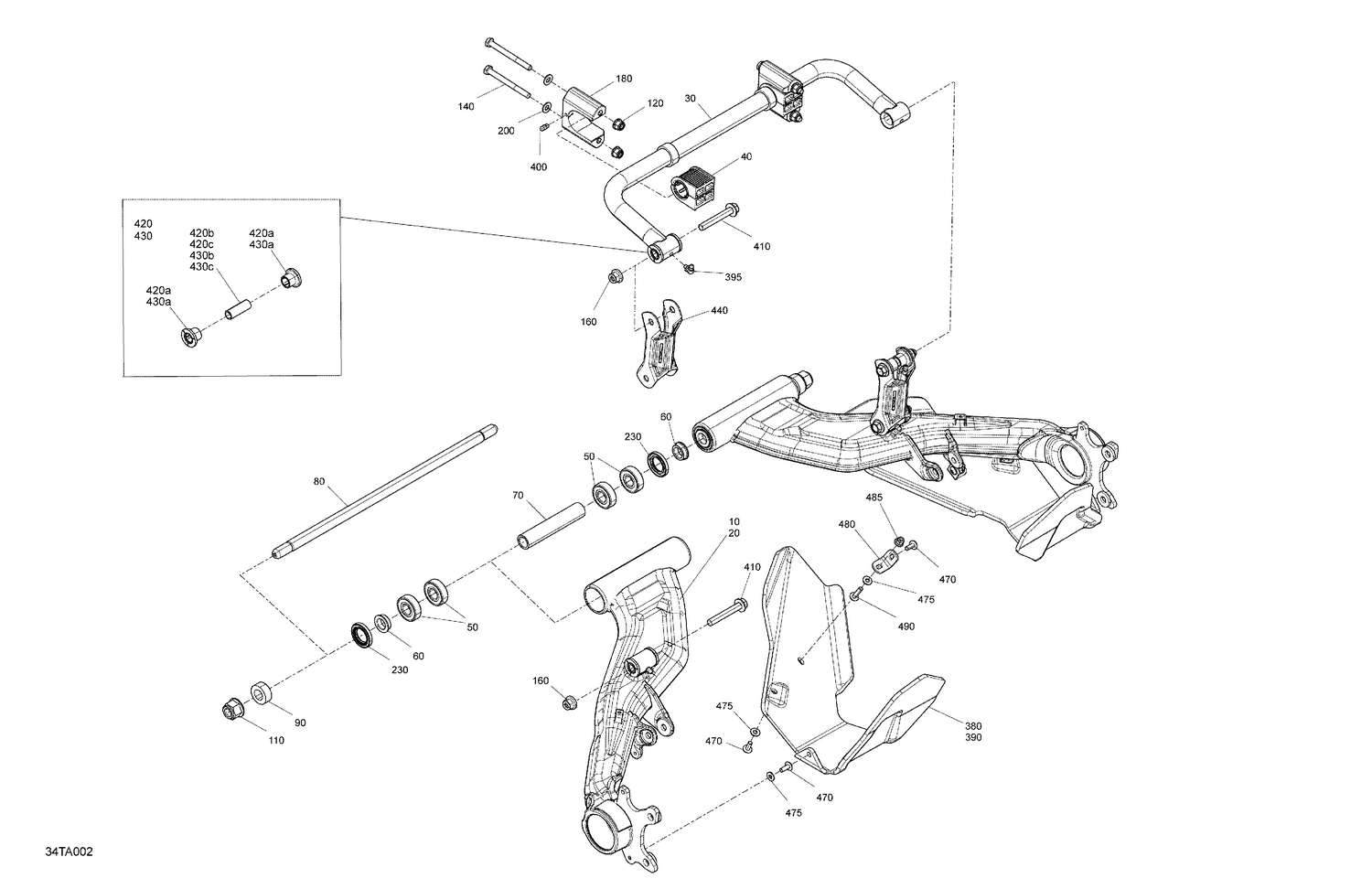

05- Suspension - Rear - Xxc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
LH Swing Arm
706003252
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RH Swing Arm
706003253
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Sway Bar
706003050
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Stabilizer Bar Bushing
706003130
Superseded by 706004641
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#50
Ball Bearing
706003749
Superseded by 293350145
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#60
Spacer
706001282
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Spacer
706002259
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Axial Pivot M16
706001664
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Flat Washer M17
250200112
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Elastic Nut M16
233211466
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Screw M8 X 85
250001035
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180
Bushing Holder
706001099
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
Flat Washer M8
234081430
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#230
Seal
293200144
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#380
RH Arm Protector
715004823
|
$159.49 | ||
|
Available to order. Add to View Price |
|||
|
#390
RH Arm Protector
715004823
|
$159.49 | ||
|
Unavailable |
|||
|
#395
Grease Fitting 90°
293550056
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#400
Grease Fitting
250000315
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#410
Hex. Flange Screw M10 X 65
207606536
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#420
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#420a
Not Available As Spare Part - Coussinet
|
|||
|
Unavailable |
|||
|
#420b
Not Available As Spare Part - Douille
|
|||
|
Unavailable |
|||
|
#420c
Not Available As Spare Part - Plaque d'usure
|
|||
|
Unavailable |
|||
|
#430
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
Unavailable |
|||
|
#430a
Not Available As Spare Part - Coussinet
|
|||
|
Unavailable |
|||
|
#430b
Not Available As Spare Part - Douille
|
|||
|
Unavailable |
|||
|
#430c
Not Available As Spare Part - Plaque d'usure
|
|||
|
Unavailable |
|||
|
#440
Sway Bar Linkage
706001020
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#470
Tork Screw M6 X 16
250000534
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#475
Flat Washer
250200039
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#480
Bended Plate
705013284
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#485
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#490
Torx Screw M6 X 25
250000758
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
