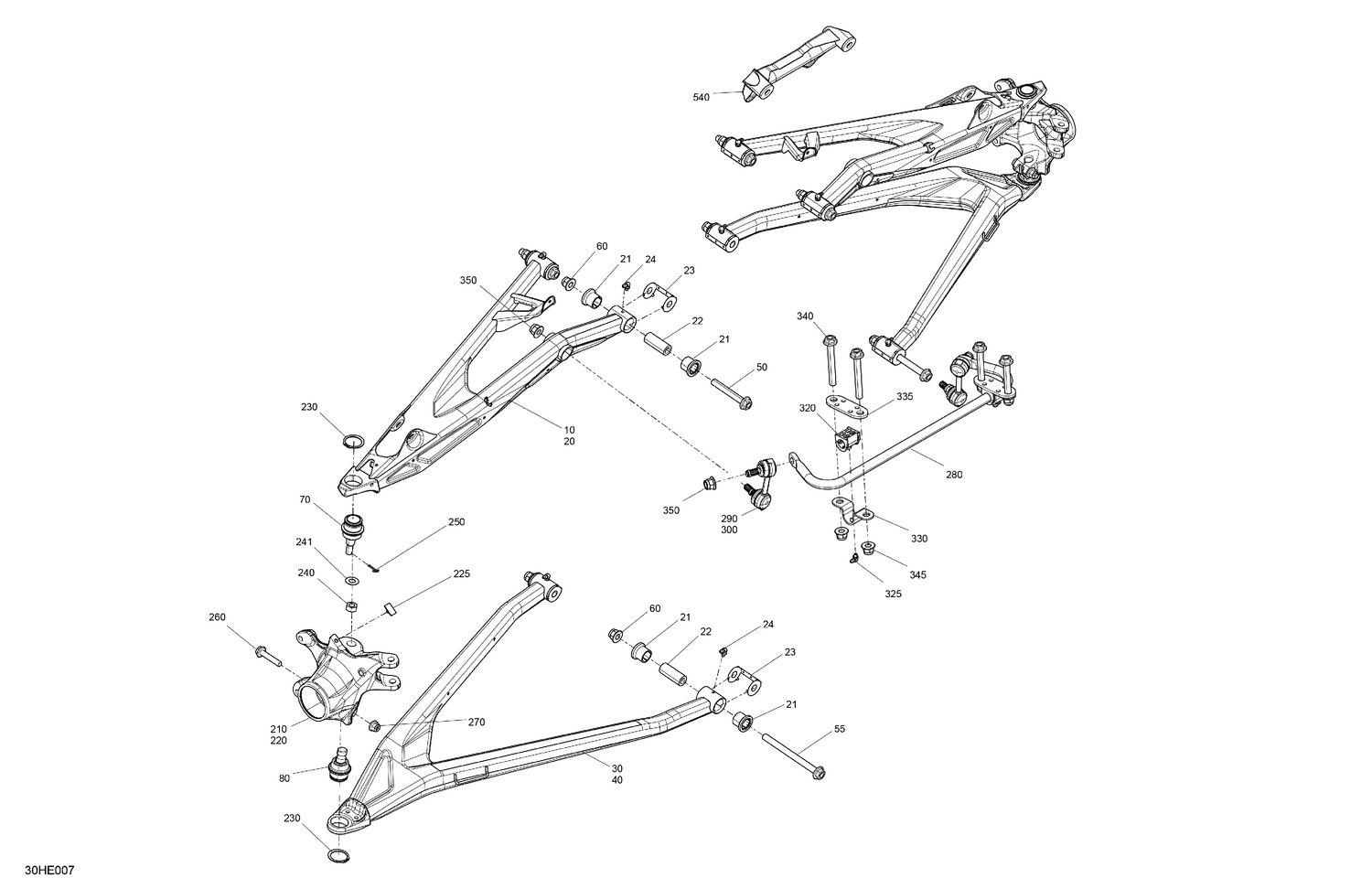

05- Suspension - Front Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Deep Black, LH Upper Suspension Arm Ass'y With Balljoint
706203685
Superseded by 715011484
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Deep Black, RH Upper Suspension Arm Ass'y With Balljoint
706203686
Superseded by 715011483
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Suspension Arm Bushing
706204409
|
$9.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Interior Bushing
706202257
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Wear Plate
706202300
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
Grease Fitting 90°
293550056
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
Deep Black, LH Lower Suspension Arm Ass'y With Balljoint
706204733
Superseded by 715010614
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Deep Black, RH Lower Suspension Arm Ass'y With Balljoint
706204734
Superseded by 715010613
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Flange Screw M12 X 85
250000859
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
Flange Screw M12 X 145
250000861
|
$6.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#70
Ball Joint
706203084
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Ball Joint
706202045
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#210
LH Front Knuckle
706204785
|
$201.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#220
RH Front Knuckle
706204786
|
$148.49 | ||
|
Available to order. Add to View Price |
|||
|
#225
Wear Plate
706202502
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#230
Circlip
293370035
|
$2.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#240
Hex Nut M12
250100239
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#241
Hardened Washer
706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#260
Hex.Flange Screw Din.6921
207605046
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#270
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#280
Stabilizer Bar Ass'y
706203953
|
$98.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#290
LH Stabilizer Bar Link
706203611
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#300
RH Stabilizer Bar Link
706203612
|
$72.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#320
Stabilizer Bar Bushing
706204564
|
$3.61 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#325
Grease Fitting 90°
293550056
|
$1.15 | ||
|
Unavailable |
|||
|
#330
Mounting Clamp
706205649
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#335
Support Plate
706202551
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#340
Hex. Flange Screw M12 X 95
250000876
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#345
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#350
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#540
Black, Link
706202708
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
