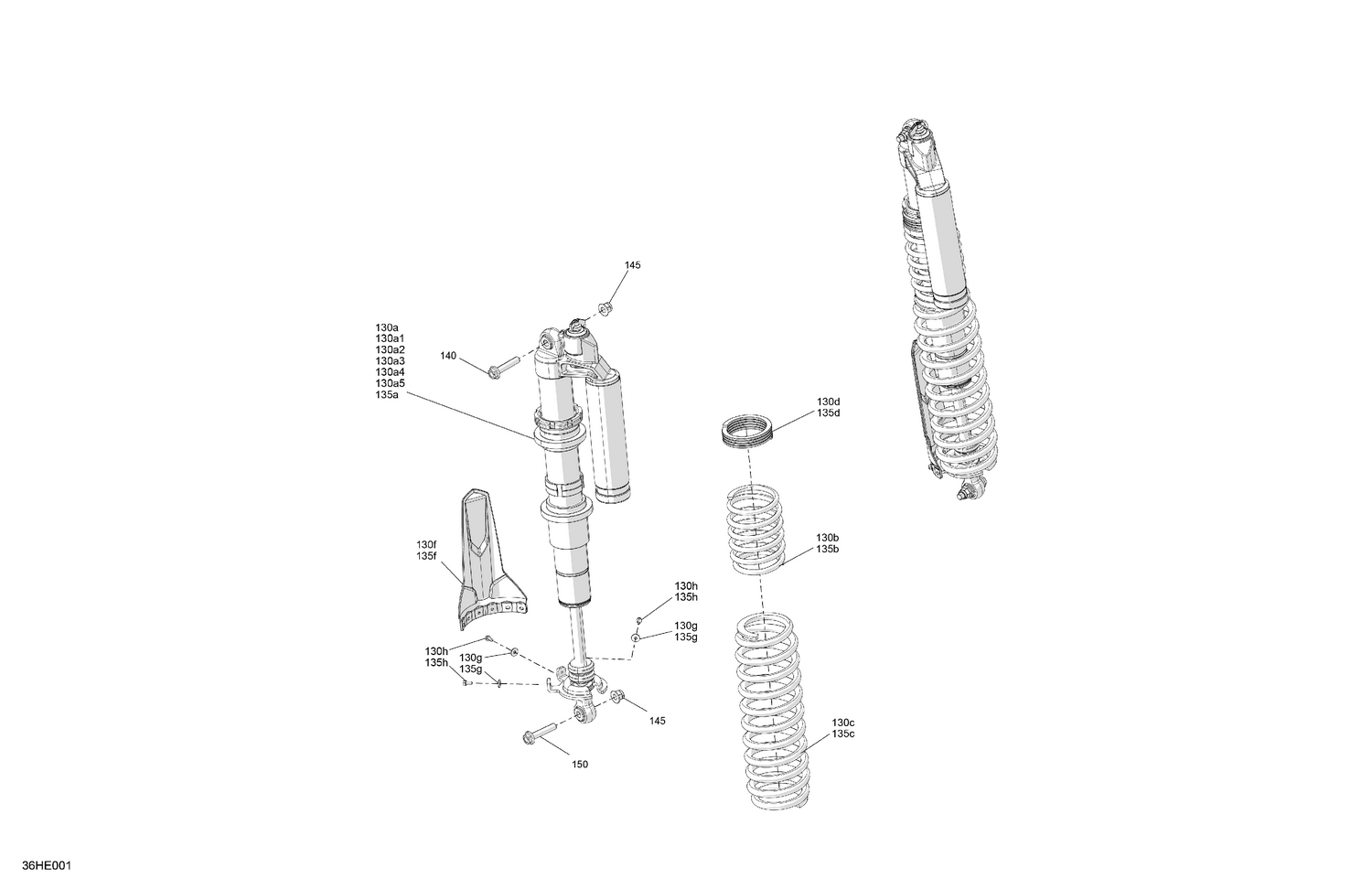

05- Suspension - Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130a
LH Rear Adjustable Shock Absorber
706004808
|
$1,009.99 | ||
|
Available to order. Add to View Price |
|||
|
#130a1
Spherical Bearing
715900337
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#130a2
Ball Joint
706004078
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#130a3
O-Ring Bushing
715900338
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130a4
Circlip
715900480
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#130a5
Reducer
715900481
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#130b
Legion Red, Compression Spring
548875078
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#130c
Legion Red, Compression Spring
706005560
|
$153.49 | ||
|
Unavailable |
|||
|
#130d
Legion Red, Compression Spring
706005562
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#130f
Protector
706202215
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#130g
Washer M5
250200025
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130h
Hex Flange Screw M5 X 11
210251150
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#135a
RH Rear Adjustable Shock Absorber
706004809
|
$999.99 | ||
|
Available to order. Add to View Price |
|||
|
#135b
Legion Red, Compression Spring
548875078
|
$126.99 | ||
|
Unavailable |
|||
|
#135c
Legion Red, Compression Spring
706005560
|
$153.49 | ||
|
Unavailable |
|||
|
#135d
Legion Red, Compression Spring
706005562
|
$69.99 | ||
|
Unavailable |
|||
|
#135f
Protector
706202215
|
$11.99 | ||
|
Unavailable |
|||
|
#135g
Washer M5
250200025
|
$0.76 | ||
|
Unavailable |
|||
|
#135h
Hex Flange Screw M5 X 11
210251150
|
$2.19 | ||
|
Unavailable |
|||
|
#140
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#145
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#150
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
Unavailable |
|||
