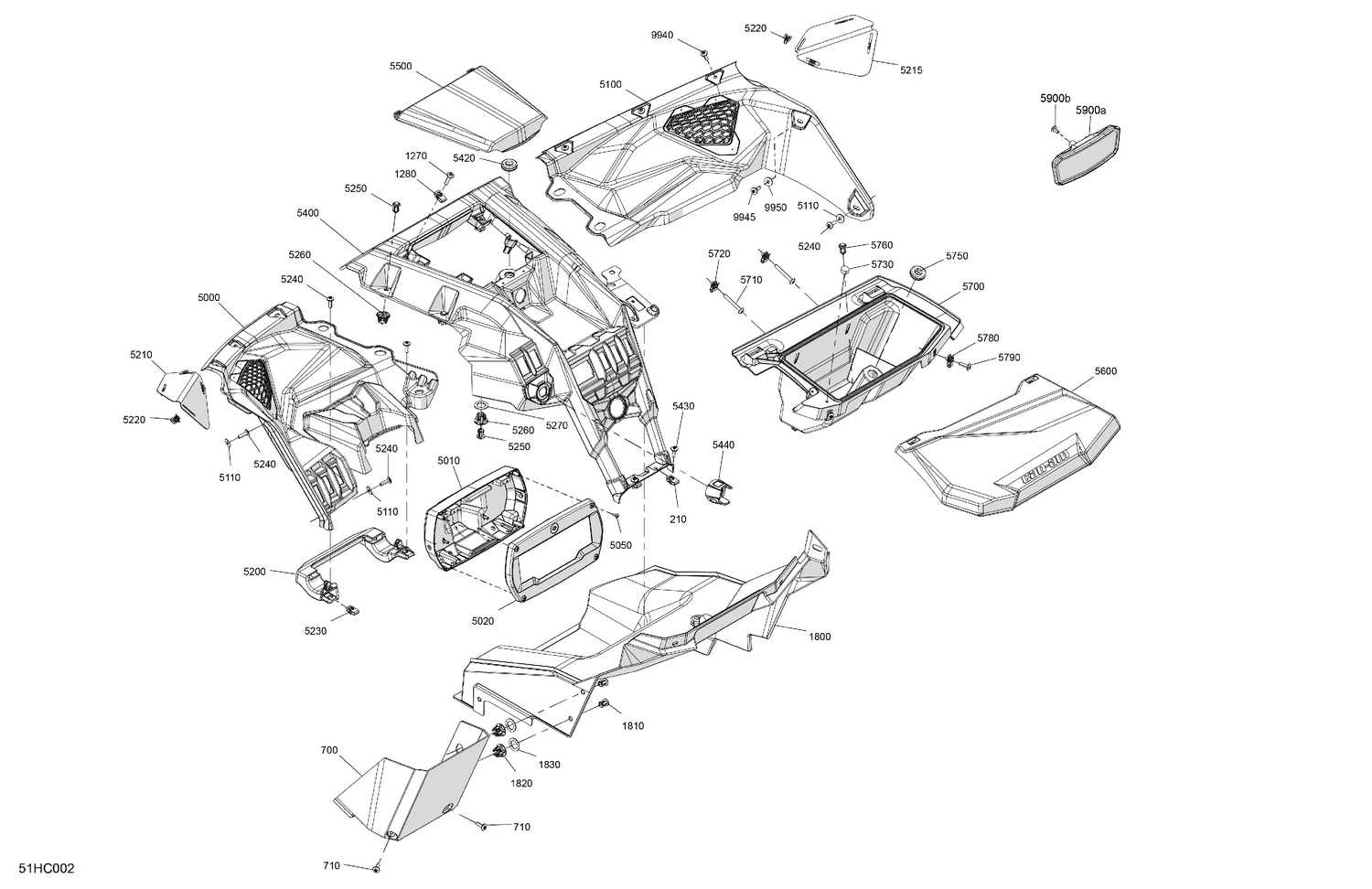

07- Cab Interior - Dashboard Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#210
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#700
Cover Central Console
707900473
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#710
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1270
Stainless, Torx Screw M6 X 30
250000842
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1280
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#1800
RH Lower Dashboard
707901064
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#1810
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1820
Insert
707900133
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1830
Washer
503189273
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5000
LH Dashboard Kit
715006587
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#5010
Rear Gauge Trim
709402490
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#5020
Front Gauge Trim
709402487
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#5050
Torx Truss PT K40 x 12
250001131
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#5100
RH Dashboard
707900698
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#5110
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5200
Dash Support
707900479
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5210
LH Speaker Cover
707900465
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#5215
RH Speaker Cover
707900590
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#5220
Edge Clip
517302785
|
$0.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5230
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#5240
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#5250
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#5260
Insert
707900133
|
$2.89 | ||
|
Unavailable |
|||
|
#5270
Washer
503189273
|
$3.39 | ||
|
Unavailable |
|||
|
#5400
Central Dashboard
707901065
|
$72.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5420
Grommet
517303756
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5430
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#5440
Key Protector
707900598
|
$4.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5500
Dash Cover
707901128
Superseded by 707900400
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5600
Glove Box Cover Kit
715004067
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#5700
Glove Box
707901133
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#5710
Torx Truss M6 X 50
250000868
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5720
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#5730
Rubber Stopper
708000759
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5750
Grommet
517303756
|
$4.09 | ||
|
Unavailable |
|||
|
#5760
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#5780
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#5790
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#5900a
Central Mirror
707900502
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#5900b
Torx Truss Screw M6 X 12
250000767
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#9940
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#9945
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#9950
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
