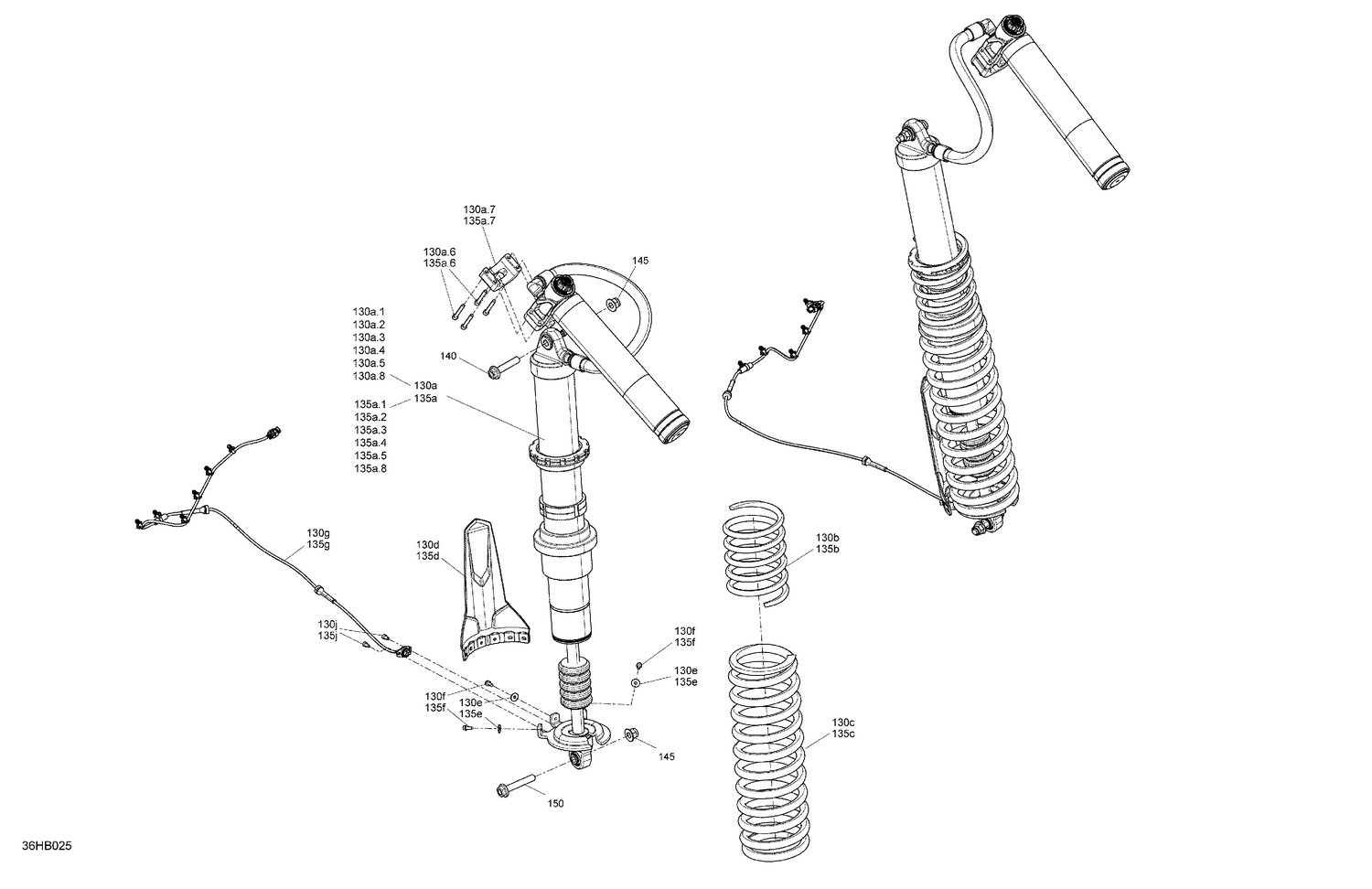

05- Suspension - Rear Shocks - With Smart-shox Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130a
Rear Adjustable Shock Absorber
706004751
|
$1,779.99 | ||
|
Available to order. Add to View Price |
|||
|
#130a.1
Spherical Bearing
715900337
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#130a.2
Ball Joint
706004078
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#130a.3
O-Ring Bushing
715900338
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130a.4
Circlip
715900480
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#130a.5
Reducer
715900481
|
$27.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130a.6
Screw M6 X 35
715900521
|
$5.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130a.7
Réservoir Clamp
715900522
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#130a.8
Connector Support
706203583
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#130b
Dazzling Blue, Compression Spring
706004164
|
$121.49 | ||
|
Available to order. Add to View Price |
|||
|
#130c
Dazzling Blue, Compression Spring
706004172
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#130d
Protector
706202215
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#130e
Washer M5
250200025
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130f
Hex Flange Screw M5 X 11
210251150
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130g
Rear Suspension Wiring Harness Ass'y
710006389
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#130j
Socket Head Screw M5 X 10
205551060
|
$1.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#135a
Rear Adjustable Shock Absorber
706004751
|
$1,779.99 | ||
|
Unavailable |
|||
|
#135a.1
Spherical Bearing
715900337
|
$84.99 | ||
|
Unavailable |
|||
|
#135a.2
Ball Joint
706004078
|
$47.49 | ||
|
Unavailable |
|||
|
#135a.3
O-Ring Bushing
715900338
|
$12.63 | ||
|
Unavailable |
|||
|
#135a.4
Circlip
715900480
|
$11.49 | ||
|
Unavailable |
|||
|
#135a.5
Reducer
715900481
|
$27.99 | ||
|
Unavailable |
|||
|
#135a.6
Screw M6 X 35
715900521
|
$5.29 | ||
|
Unavailable |
|||
|
#135a.7
Réservoir Clamp
715900522
|
$38.99 | ||
|
Unavailable |
|||
|
#135a.8
Connector Support
706203583
|
$13.49 | ||
|
Unavailable |
|||
|
#135b
Dazzling Blue, Compression Spring
706004164
|
$121.49 | ||
|
Unavailable |
|||
|
#135c
Dazzling Blue, Compression Spring
706004172
|
$147.99 | ||
|
Unavailable |
|||
|
#135d
Protector
706202215
|
$11.99 | ||
|
Unavailable |
|||
|
#135e
Washer M5
250200025
|
$0.76 | ||
|
Unavailable |
|||
|
#135f
Hex Flange Screw M5 X 11
210251150
|
$2.19 | ||
|
Unavailable |
|||
|
#135g
Rear Suspension Wiring Harness Ass'y
710006389
|
$229.99 | ||
|
Unavailable |
|||
|
#135j
Socket Head Screw M5 X 10
205551060
|
$1.59 | ||
|
Unavailable |
|||
|
#140
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#145
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#150
Hex. Flange Screw M12 X 70
250000858
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
