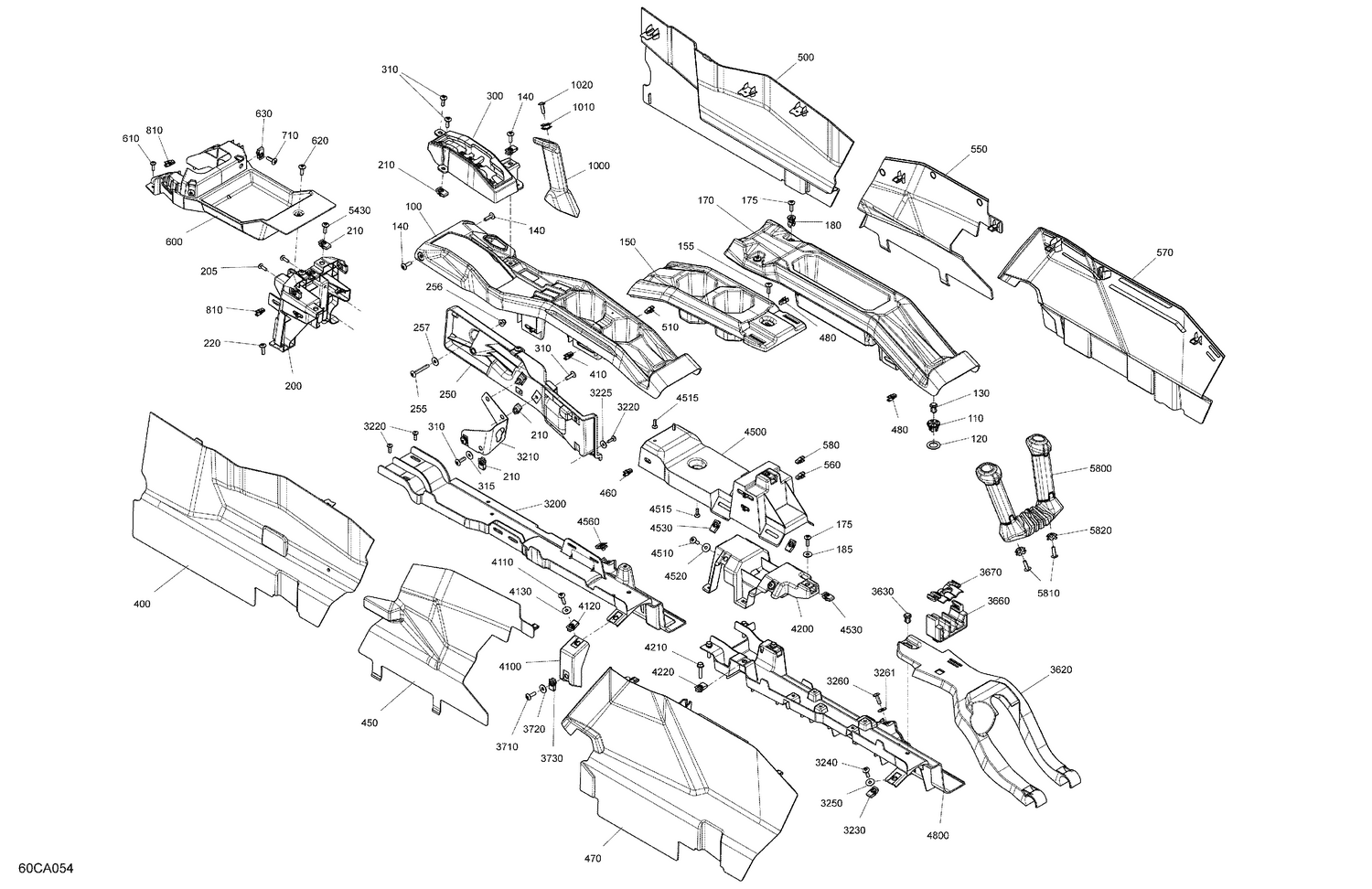

07- Body - Cab Interior - Center Console Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#100
Front Console Ass'y
715006656
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Insert
707900133
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Washer
503189273
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#140
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#150
Middle Console
707900492
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#155
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#170
Rear Console
707900568
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#175
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#180
Insert
705010872
Superseded by 705016606
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#185
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#200
Front Central Console Support
707900459
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#205
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#220
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#250
Shifter Gate Support
707900488
|
$26.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#255
Torx Screw M6 X 45
250000748
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#256
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#257
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#300
Lever Indicator
707900644
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#310
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#315
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#400
LH Lateral Dash Panel
707900396
|
$73.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#410
Clip
705010721
|
$2.61 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#450
LH Middle Lateral Dash Panel
707900497
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#460
Clip
705010721
|
$2.61 | ||
|
Unavailable |
|||
|
#470
LH Rear Lateral Dash Panel
707900571
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#480
Clip
705010721
|
$2.61 | ||
|
Unavailable |
|||
|
#500
RH Lateral Dash Panel
707900397
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#510
Clip
705010721
|
$2.61 | ||
|
Unavailable |
|||
|
#550
RH Middle Lateral Dash Panel
707900498
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#560
Clip
705010721
|
$2.61 | ||
|
Unavailable |
|||
|
#570
RH Rear Lateral Dash Panel
707900572
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#580
Clip
705010721
|
$2.61 | ||
|
Unavailable |
|||
|
#600
Front Top Console
707900460
Superseded by 707900460
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#610
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#620
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#630
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#710
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#810
Clip
705010721
|
$2.61 | ||
|
Unavailable |
|||
|
#1000
Passenger Handle
707900011
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#1010
Connector Tube
707900048
|
$6.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1020
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#3200
Central Support Hose
707900710
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3210
Cable Support
707900478
Superseded by 707901207
|
$11.99 | ||
|
Unavailable |
|||
|
#3220
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#3225
Washer M5
250200025
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3230
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#3240
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#3250
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#3260
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#3261
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#3620
Hose Support
707900651
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3630
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#3660
Support Hose Rear
707900699
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#3670
Support Hose Rear
707900729
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#3710
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#3720
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#3730
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#4100
Central Console Support
707900501
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4110
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4120
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#4130
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#4200
Rear Console Support
707900569
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#4210
Hex. Flange Screw M6 X 1.0 X 30
207663056
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#4220
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#4500
Console Support
707900573
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4510
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#4515
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#4520
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#4530
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#4560
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#4800
Support Hose Central
707900711
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#5430
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#5800
Passenger Handle
707900575
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5810
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#5820
Connector Tube
707900048
|
$6.19 | ||
|
Unavailable |
|||
