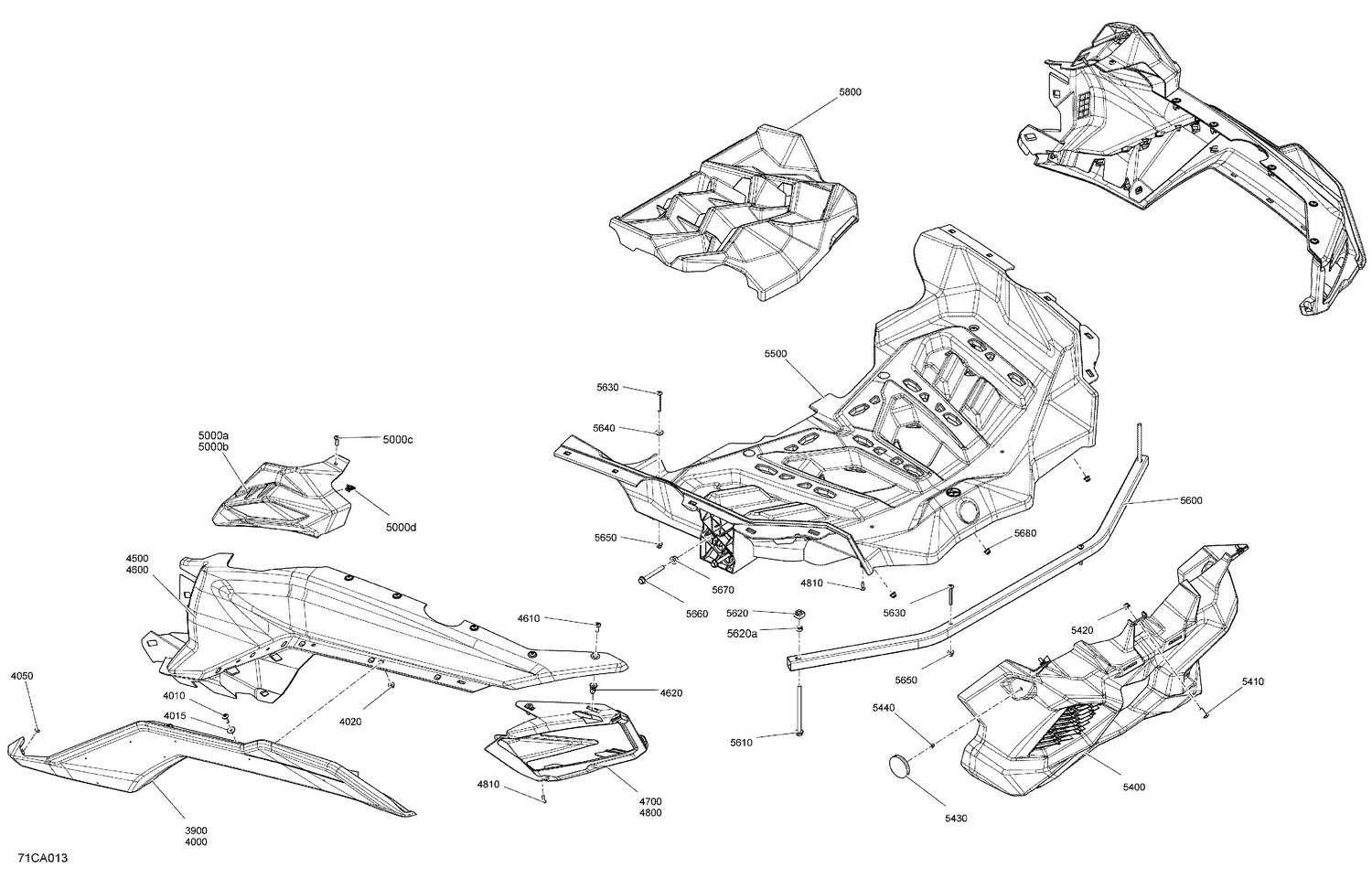

07- Body - Rear Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3900
LH Rear Fender Deflector
705009511
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#4000
RH Rear Fender Deflector
705009512
Superseded by 705017543
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#4010
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#4015
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4020
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#4050
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4500
Mineral Gray Satin, LH Rear Fender
705014346
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#4600
Mineral Gray Satin, RH Rear Fender
705014352
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#4610
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4620
Insert
705010872
Superseded by 705016606
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#4700
LH Rear Lateral Cover
705010686
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4800
RH Rear Lateral Cover
705010687
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4810
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#5000a
LH Rear Cage Trim
705010335
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5000b
RH Rear Cage Trim
705010336
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5000c
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#5000d
Clip
293650268
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#5400
Rear Fairing
705010001
Superseded by 705017558
|
$209.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5410
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#5420
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5430
Red Reflector
705011221
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5440
Elastic Flange Nut M5
233251494
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5500
Luggage Rack Kit
715006592
|
$444.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5600
Luggage rack Tube
705012589
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5610
Hex. Flange Screw M8 X 130
230683034
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#5620
Elastic Nut Housing M8
269501943
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#5620a
Hex. Elastic Nut M8 Brass
232581200
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5630
Torx Truss M6 X 50
250000868
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#5640
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#5650
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Unavailable |
|||
|
#5660
Hex. Flange Screw M8 X 70
207687044
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#5670
Hex. Flange Nut M8
233081416
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#5680
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#5800
Rear Cover
705013757
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
