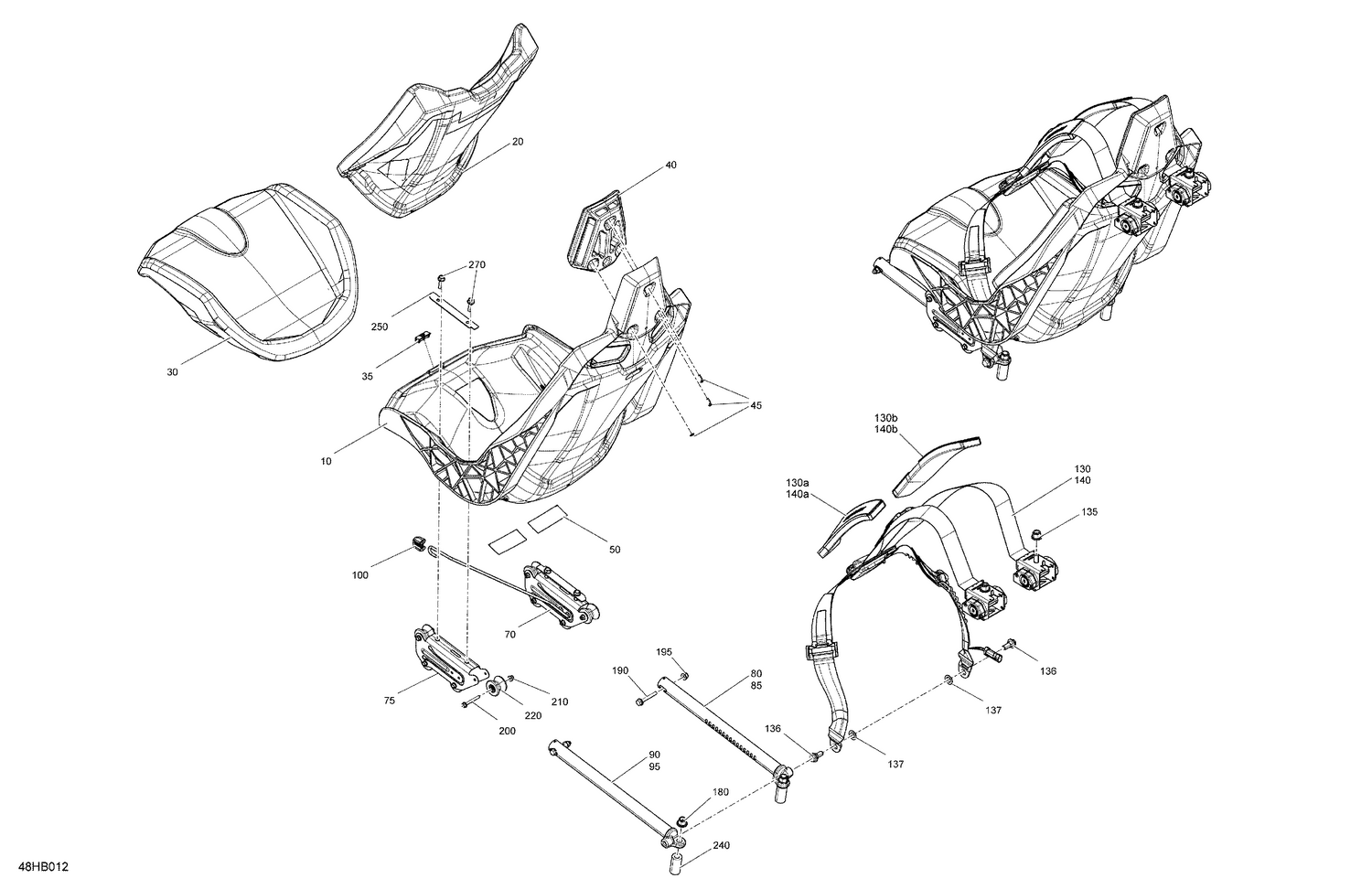

07- Body - Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Seat Shell Kit
708002065
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Backrest Cushion
708003347
|
$439.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Seat Base Cushion
708003349
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Stopper
708002670
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#40
Headrest
708002131
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#50
Velcro Tape
708002535
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#70
Adjustable Trolley Kit
703500997
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
Carriage
708002298
Superseded by 708003450
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Seat Rail
708003061
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
Rail
708002578
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Seat Rail
708003064
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#95
Rail
708002575
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Adjustment Handle
708002655
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
Passenger 4-Point Harness
715005022
|
$308.99 | ||
|
Unavailable |
|||
|
#130a
LH Shoulder Pad
708002824
|
$37.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130b
RH Shoulder Pad
708002825
|
$37.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#135
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#136
Safety Belt screw
708002504
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#137
Position Washer
708000891
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#140
LH Front Safety Belt 4 Points
708002917
|
$264.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#140a
LH Shoulder Pad
708002824
|
$37.99 | ||
|
Unavailable |
|||
|
#140b
RH Shoulder Pad
708002825
|
$37.99 | ||
|
Unavailable |
|||
|
#180
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Unavailable |
|||
|
#190
Hex. Flange Screw M8 X 55
207685554
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#195
Elastic Flange Nut M8
233281464
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#200
Hex. Flange Screw M6 X 50
207665054
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#220
Wheel
708002134
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#240
Rear Bushing
708002299
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#250
Plate
708002480
Superseded by 708003680
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#270
Hex. Flange Screw M8 X 30, Scotch Grip
207583044
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#6110
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Unavailable |
|||
|
#6120
Elastic Flange Nut M8
233281464
|
$1.09 | ||
|
Unavailable |
|||
