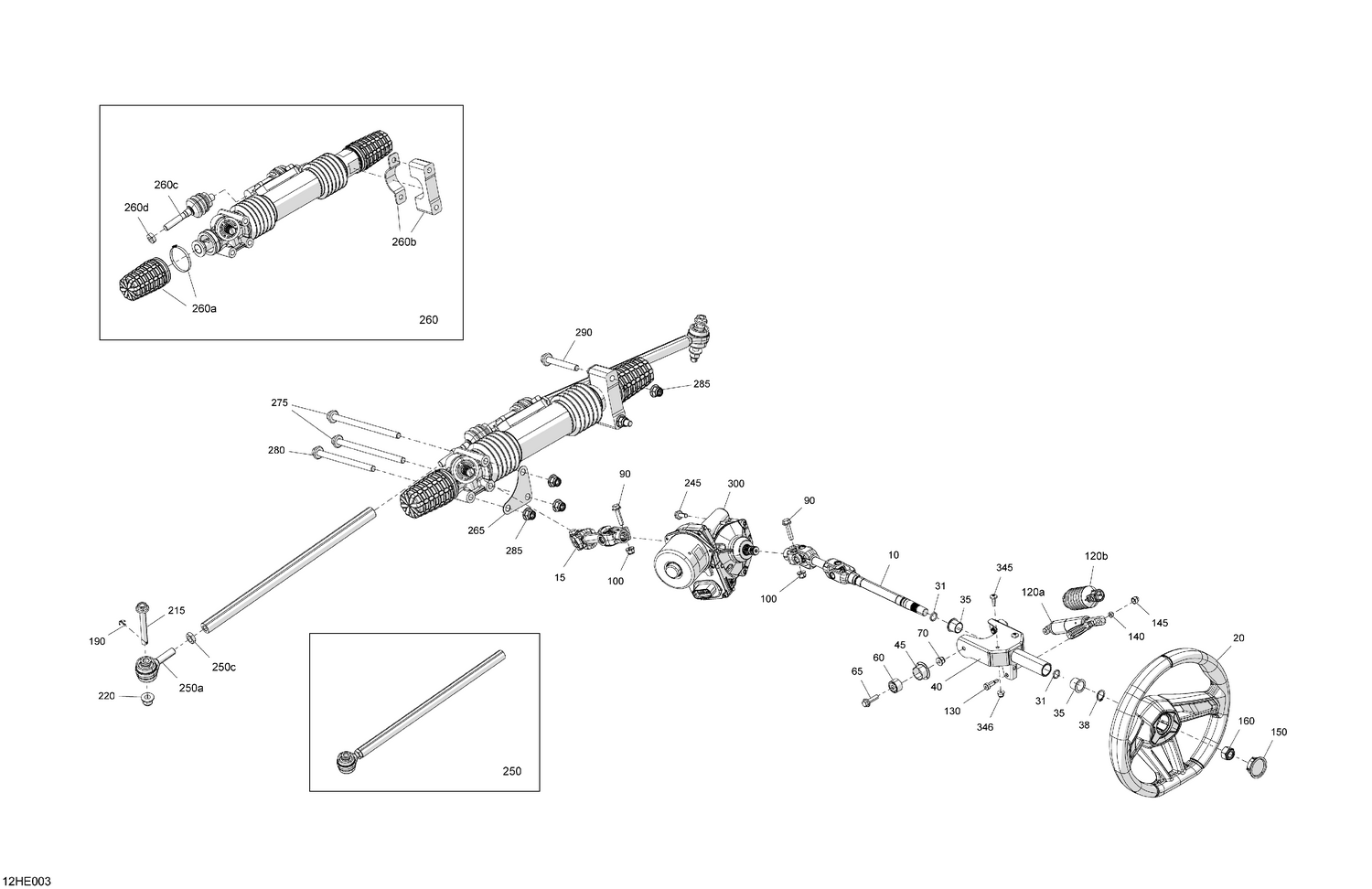

03- Mechanic - Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Steering Column Ass'y
709403021
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Lower Steering Axle Ass'y
709403022
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Steering Wheel
709401706
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-Ring
293300144
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#35
Steering Bushing
709402725
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#38
Circlip
293370110
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#40
Steering Support
709401602
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Bushing
709401603
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#60
Bushing
709401604
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#65
Hex. Flange Screw M8 X 30
207683044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Hex. Flange Screw M8 X 35
250001021
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#120a
Adjustment Cylinder
709402506
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#120b
Boot Tube Side
709401232
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
Socket Head Screw M8 X 16
250000669
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#140
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#145
Cap
269500806
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#150
Steering Cap
709401514
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#160
Elastic Lock Nut M16
232511414
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#190
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#215
Hex Cap Screw M12 X 95
250000864
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#220
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#245
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Tie Rod Ass'y
709401556
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#250a
Ball Joint
709401703
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250c
Hex. Jam Nut M14
232170411
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#260
Rack & Pinion Steering Ass'y
709402180
|
$466.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#260a
Kit Rack And Pinion End
703500958
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#260b
Mounting Bracket Kit
703500959
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#260c
Tie Rod end
715900488
|
$42.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#260d
Steering Rod Nut
715900238
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#265
Plate
709402975
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#275
Screw Hex Cap M12 X 190
250000863
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#280
Screw Hex Cap M12 X 160
250000875
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#285
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#290
Flange Screw M12 X 85
250000859
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300
Power Steering Ass'y
709403006
|
$2,199.99 | ||
|
Available to order. Add to View Price |
|||
|
#345
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#346
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
