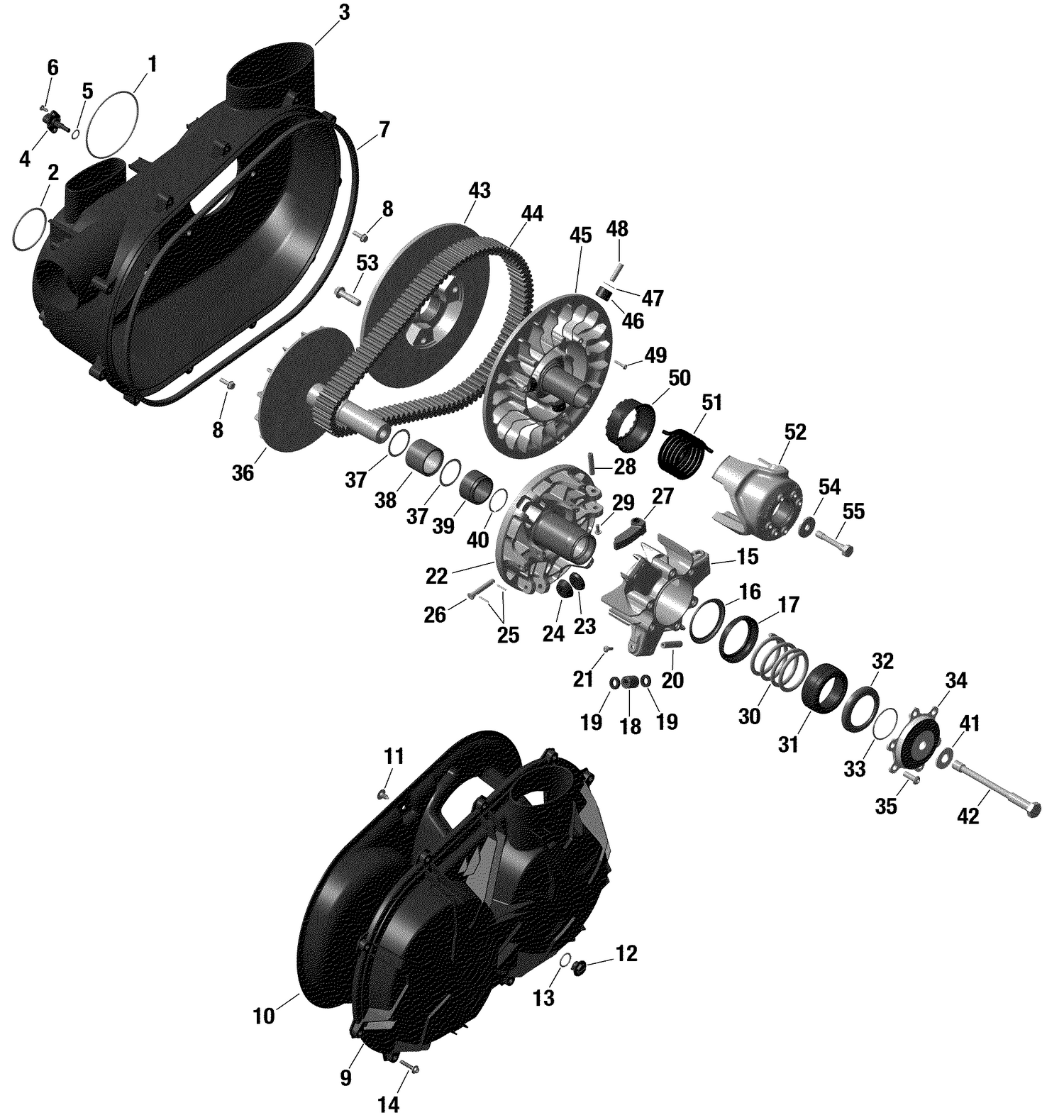

01- Rotax - Cvt - Turbo Rr Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
O-Ring
420450431
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-Ring
420450520
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
CVT Air Guide
420212609
|
$239.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Air Temperature Sensor
515176366
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-Ring
420950815
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
Torx Screw M5 X 12
420640086
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
Gasket
420450405
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Hex.Screw M6 X 20
420441311
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
Variator Cover
420212508
|
$190.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Insulating Mat
420897385
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Trim Button
420651816
|
$1.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Cap
420441820
|
$11.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-Ring
420250052
|
$10.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
Torx Screw 6X30
420441575
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
Governor Cup Ass'y
420280716
Superseded by 420280761
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Stopper Spring
420427352
Superseded by 417224910
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Spring Support
420427803
Superseded by 420427801
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Roller Thrust Set
420629231
Superseded by 420629237
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Roller Pulley Ass'y
417224861
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Thrust Washer
420626235
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
Axle - 10mm
417224204
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Torx-Truss M/S M5 X 14 S.Grip
250000763
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
Outer Half Ass'y
420280813
Superseded by 420280816
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Pdrive Torque Rollers Maintenance Kit
420629224
Superseded by 861805587
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Back Torque Roller
417224153
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Not Available As Spare Part - Roller Pulley Ext
|
|||
|
Unavailable |
|||
|
#25
Spring Pin 2.6MM X 20.5MM
250400074
Superseded by 250400101
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#26
Pin
420233899
Superseded by 417224510
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
Roller Lever Ass'y
420248720
Superseded by 420248735
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Pin Ramp
420233904
Superseded by 417224694
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Torx-Truss M/S M5 X 14 S.Grip
250000763
|
$2.29 | ||
|
Unavailable |
|||
|
#30
Compression Spring, Drive Pulley
420638133
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Spring Support
420427808
Superseded by 420427809
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Seat Spring
420427354
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Circlip
420645027
Superseded by 293370116
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#34
Governor Cup Torque Flange
420280275
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Hex Screw M8 X 2
420841083
Superseded by 420841085
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Flasque Fixe Ass.
420280811
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Washer
420427220
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#38
Needle Roller Bearing With Sleeves
420832351
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Stop Sleeve
420660284
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Retaining Ring 35 x 1.5
420845741
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Washer
420245690
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#42
Hexagonal Screw M14X 165
420841161
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
Driven Pulley
420686738
|
$559.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Drive Belt
420280652
Superseded by 422280652
|
$239.99 | ||
|
Unavailable |
|||
|
#45
Outer Half Pulley Ass'y
420280626
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Pulley Roller
417127016
|
$25.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
Thrust Washer
420227946
|
$2.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
Bearing Pin
420629192
|
$16.34 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
Torx Screw M4 X 20
420841531
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Spring Support
420427805
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#51
Spring
420638126
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
Cam 48/52 Ass'y
420280846
|
$169.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
Torx Flange Screw M10 X 40
420841711
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#54
Collar Washer
420427243
|
$16.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
Hexagonal Screw M10X 61
420441990
|
$19.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
