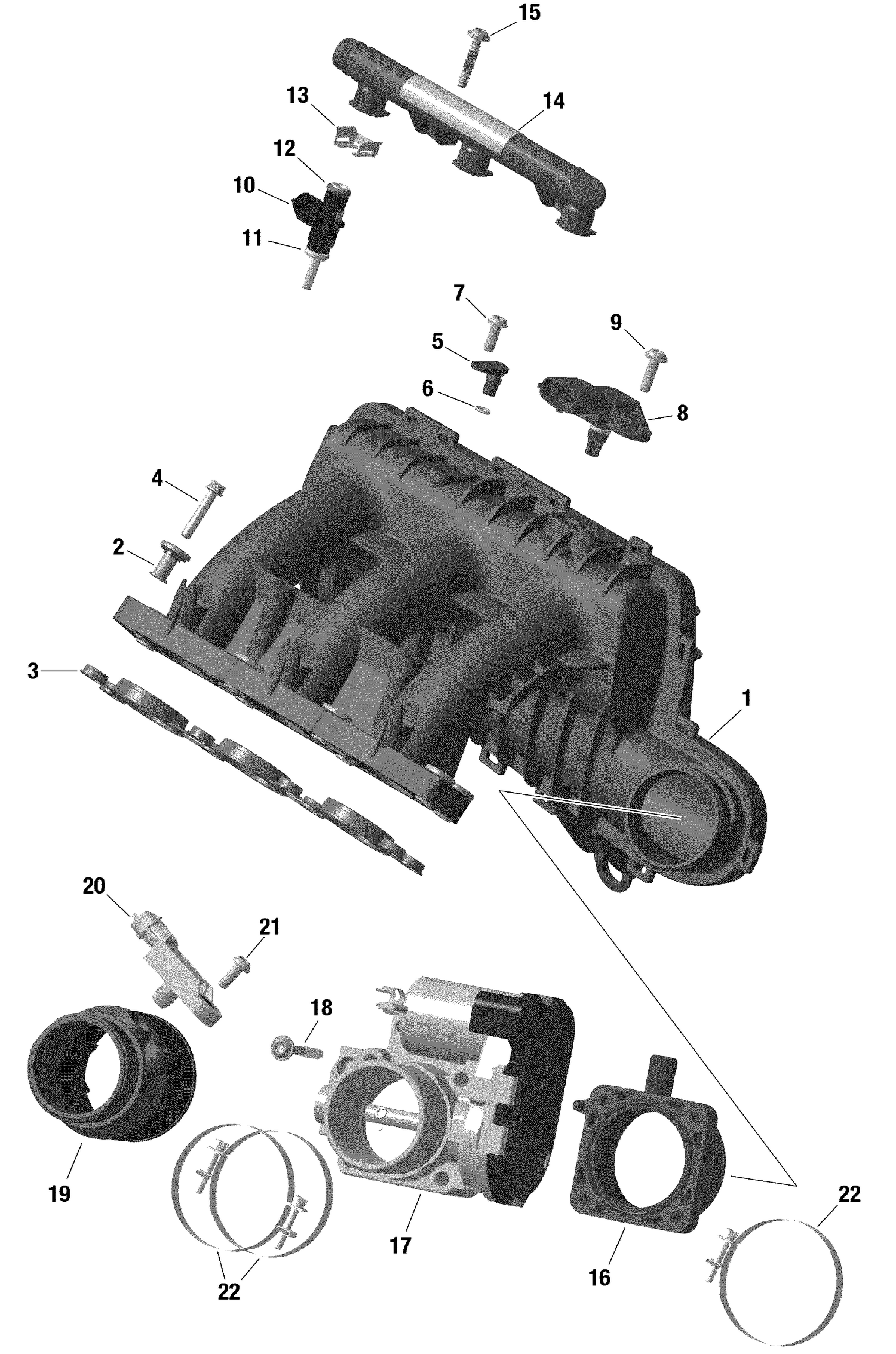

01- Rotax - Air Intake Manifold And Throttle Body - Turbo - Turbo R Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Air Intake Manifold Ass'y
420867345
Superseded by 420867347
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Distance Sleeve
420629175
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Gasket
420450510
|
$45.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Torx Flange Screw M6 X 30
420440647
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
Plug
420201052
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-Ring
420230530
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
Torx Flange Screw M6 X 16
420641588
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
Pressure Sensor And Air Temperature
420874656
Superseded by 515178563
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Torx Flange Screw M6 X 20
420841103
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
Injection Valve
420874845
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-Ring
420831050
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-Ring
420430775
|
$4.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Injector Clip
420853030
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
Fuel Rail
420874966
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Torx Screw 6X30
420441575
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Intake Neck
420867116
Superseded by 420267216
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Throttle Body
420893149
|
$646.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Torx Flange Screw M6 X 50
420441588
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Connecting Socket
420867555
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Pressure Sensor
420274057
Superseded by 420274058
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Torx Flange Screw M6 X 16
420641588
|
$2.19 | ||
|
Unavailable |
|||
|
#22
Hose Clamp 60-80
420251831
Superseded by 420251832
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
