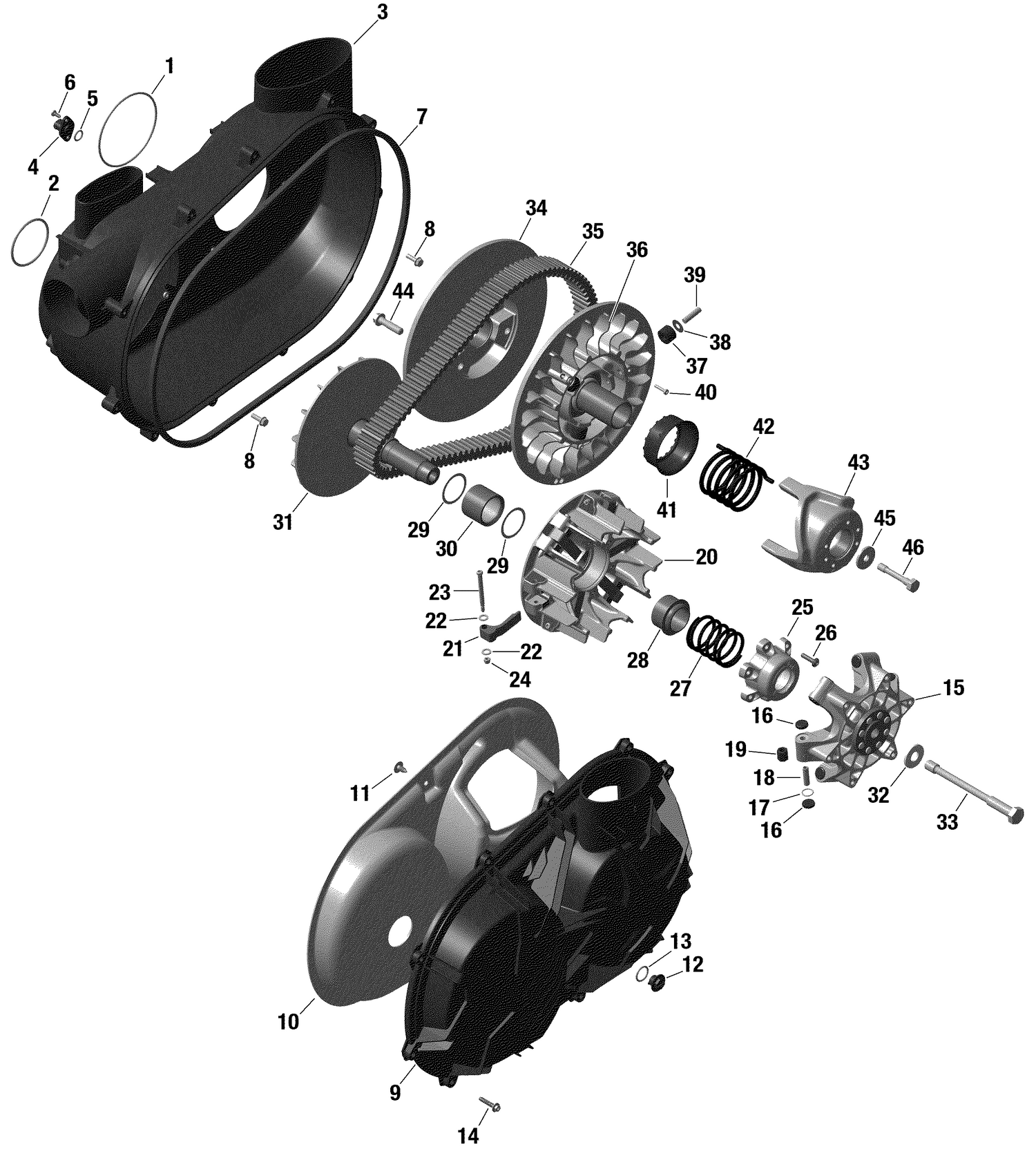

01- Rotax - Cvt - Turbo Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
O-Ring
420450431
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-Ring
420450520
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
CVT Air Guide Ass'y
420212707
|
$249.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#5
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#6
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#7
Gasket
420450405
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Hex.Screw M6 X 20
420441311
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
Variator Cover
420212508
|
$190.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Insulating Mat
420897385
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Trim Button
420651816
|
$1.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Cap
420441820
|
$11.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#14
Torx Screw 6X30
420441575
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
Governor Cup Ass'y
420280725
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Slider Shoe Set
420281296
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
O-Ring
420230456
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Roller Axle
417223257
|
$7.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Roller Thrust
420229991
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Outer Half Ass'y
420280608
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Centrifugal Lever Kit
420248661
|
$370.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#23
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#24
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#25
Bearing Cover
420280616
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Torx Flange Screw M6 X 25
420841549
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#27
Compression Spring
420638117
|
$37.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Spring Retainer
420427211
|
$46.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Washer
420427220
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#30
Needle Roller Bearing With Sleeves
420832351
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Inner Half Ass'y
420280596
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Washer
420245690
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#33
Hexagonal Screw M14X 165
420841161
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Sliding Pulley Ass'y
420280636
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Drive Belt
422280652
|
$239.99 | ||
|
Unavailable |
|||
|
#36
Outer Half Pulley Ass'y
420280626
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#38
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#39
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#40
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#41
Spring Support
420427805
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#42
Compression Spring
420638124
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
Cam 37/50 Ass'y
420280706
|
$217.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
Torx Flange Screw M10 X 40
420841711
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
Collar Washer
420427243
|
$16.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
Hexagonal Screw M10X 61
420441990
|
$19.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
