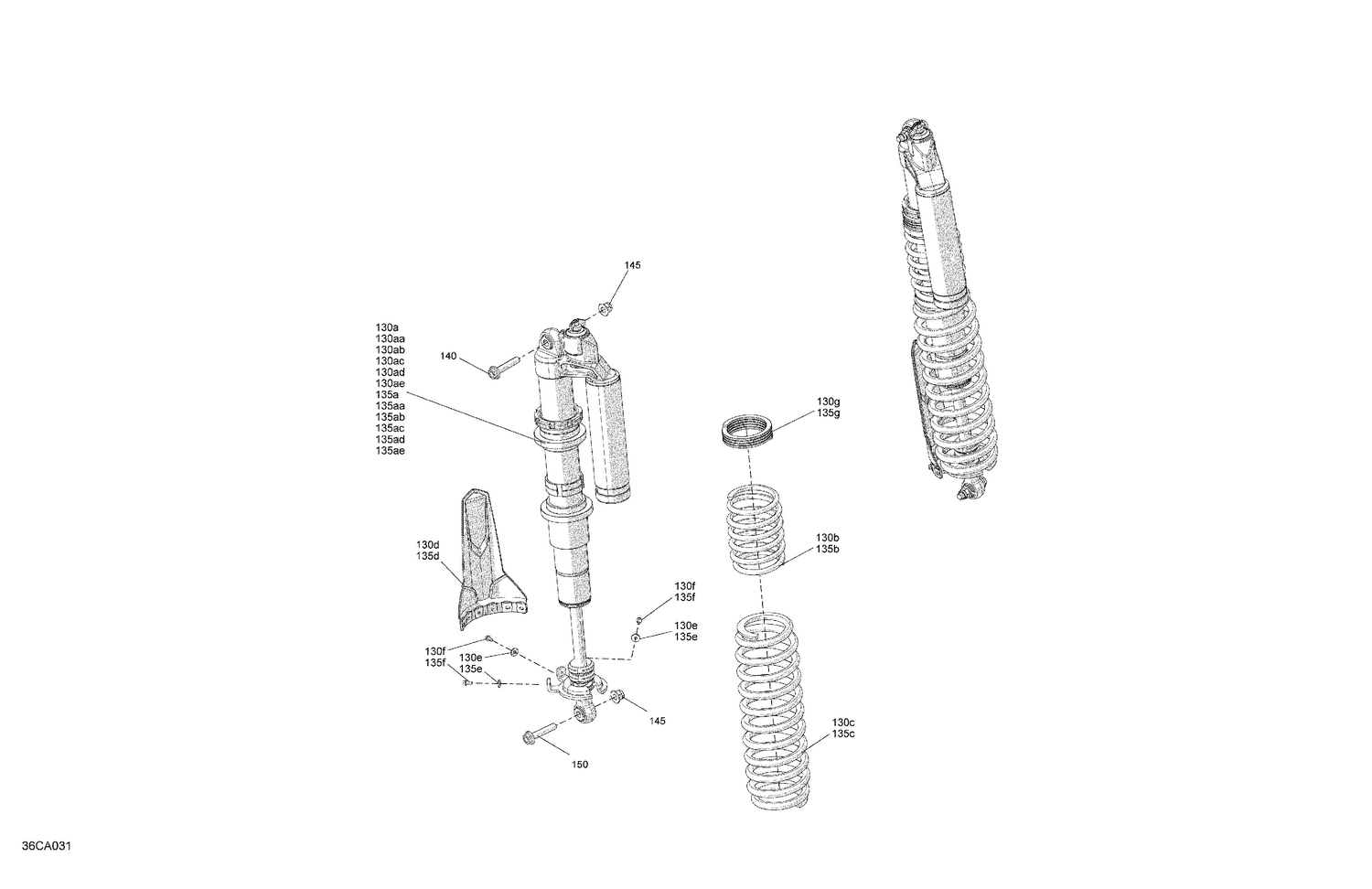

05- Suspension - Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130a
LH Rear Shock
706003059
|
$989.99 | ||
|
Available to order. Add to View Price |
|||
|
#130aa
Spherical Bearing
715900337
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#130ab
Ball Joint
715900482
Superseded by 706004078
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#130ac
O-Ring Bushing
715900338
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130ad
Circlip
715900480
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#130ae
Reducer
715900481
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#130b
Red, Rear Spring
706003278
|
$100.49 | ||
|
Available to order. Add to View Price |
|||
|
#130c
Red, Rear Spring
706003279
|
$153.49 | ||
|
Available to order. Add to View Price |
|||
|
#130d
Red Spring
706001714
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#130d
Protector
706202215
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#130e
Washer M5
250200025
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130f
Hex Flange Screw M5 X 11
210251150
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#135a
RH Rear Shock
706003060
|
$999.99 | ||
|
Available to order. Add to View Price |
|||
|
#135aa
Spherical Bearing
715900337
|
$84.99 | ||
|
Unavailable |
|||
|
#135ab
Ball Joint
715900482
Superseded by 706004078
|
$47.49 | ||
|
Unavailable |
|||
|
#135ac
O-Ring Bushing
715900338
|
$12.63 | ||
|
Unavailable |
|||
|
#135ad
Circlip
715900480
|
$11.49 | ||
|
Unavailable |
|||
|
#135ae
Reducer
715900481
|
$27.99 | ||
|
Unavailable |
|||
|
#135b
Red, Rear Spring
706003278
|
$100.49 | ||
|
Unavailable |
|||
|
#135c
Red, Rear Spring
706003279
|
$153.49 | ||
|
Unavailable |
|||
|
#135d
Red Spring
706001714
|
$73.99 | ||
|
Unavailable |
|||
|
#135d
Protector
706202215
|
$11.99 | ||
|
Unavailable |
|||
|
#135e
Washer M5
250200025
|
$0.76 | ||
|
Unavailable |
|||
|
#135f
Hex Flange Screw M5 X 11
210251150
|
$2.19 | ||
|
Unavailable |
|||
|
#140
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#145
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
Unavailable |
|||
