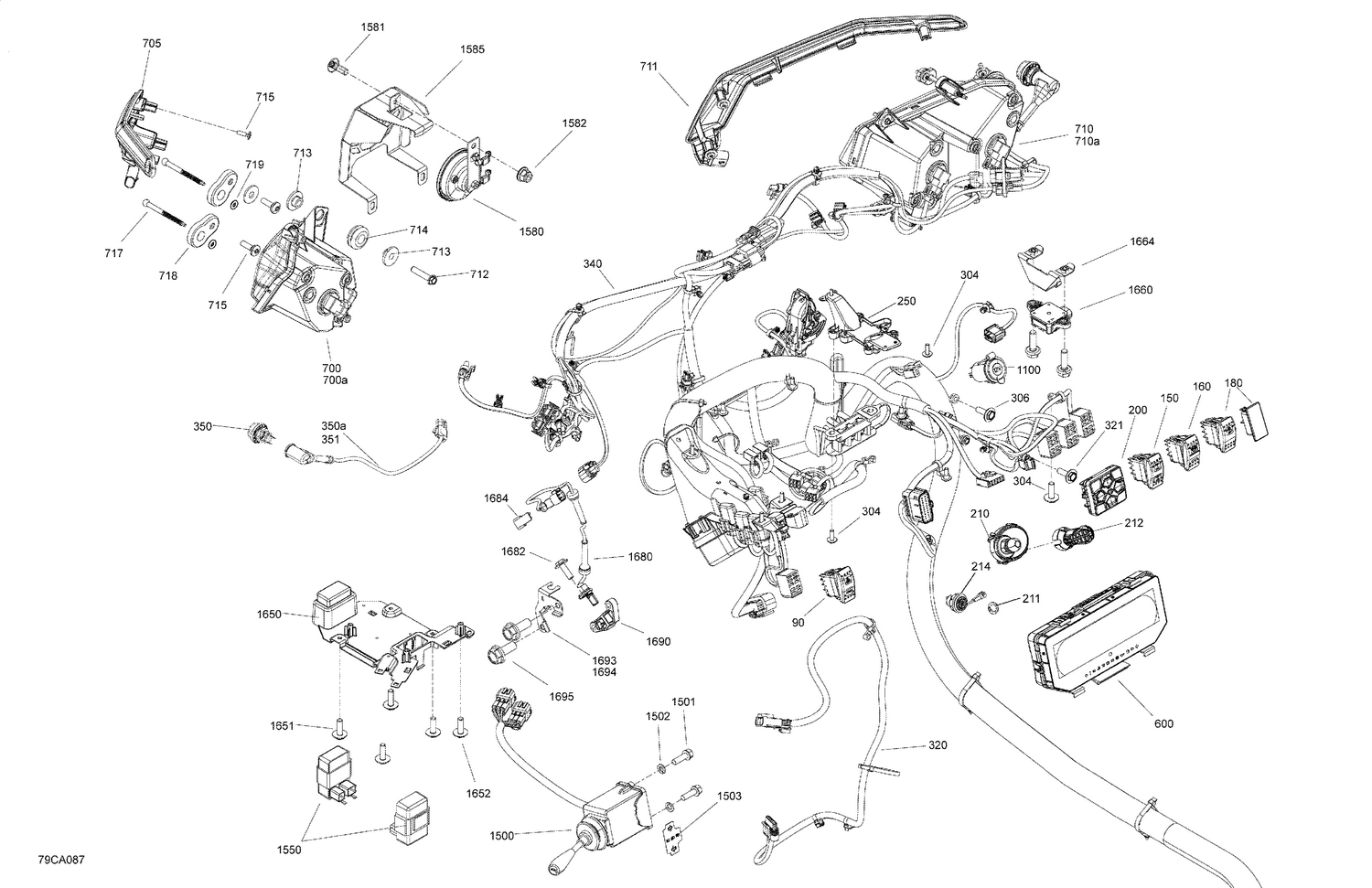

08- Electric - Front System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#90
Hazard Lights Switch
710006107
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Switch 2X4
710005489
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
Switch 2X4
710005489
|
$31.99 | ||
|
Unavailable |
|||
|
#160
Plug Carling
710007173
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#160
Differential Lock Switch
710005470
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#180
Switch HDC
710006553
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#180
Plug Carling
710007173
|
$8.85 | ||
|
Unavailable |
|||
|
#200
Multifonction Switch
710006650
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#210
Terminal Dess One-Wire
515178840
|
$83.49 | ||
|
Available to order. Add to View Price |
|||
|
#211
Safety Nut (DESS Switch)
278002963
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#212
Grey Key RFID
710004964
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#214
Start-Stop Button
710005213
|
$60.49 | ||
|
Available to order. Add to View Price |
|||
|
#250
Housing Support
710005672
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#304
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#306
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#320
Trottle Pedal Harness
710005929
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#321
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#340
Front Wiring Harness
710007442
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#350
Day Light
710001726
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#350a
Cap Protector
710003269
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#351
Position Light Harness
710005676
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#600
Multifunction Gauge MID
710007409
|
$369.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#700
LH Headlamp
710006912
Superseded by 710008230
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#700a
Bulb 12V 55W
715900141
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#705
LH Fascia Trim
705011485
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#710
RH Headlamp
710006913
Superseded by 710008231
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#710a
Bulb 12V 55W
715900141
|
$41.49 | ||
|
Unavailable |
|||
|
#711
RH Fascia Trim
705011486
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#712
Hex. Flange Screw K50 X 2.24 X 25
241152540
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#713
Shoulder Bushing
710004749
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#714
Grommet
709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#715
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#717
Ajustment Screw
710005837
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#718
Adjustment Guide
710005097
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#719
O-Ring
293300192
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#1100
12V Power Outlet
710005374
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1500
Turn Signal
710001721
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#1501
Hex. Forming Screw M5 X 16
210251650
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#1502
Lock Washer 5 mm
234151401
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#1503
Flasher Decal
704902614
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#1550
Flasher Unit
710003239
|
$78.49 | ||
|
Available to order. Add to View Price |
|||
|
#1580
Horn
710004791
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#1581
Torx Truss Screw M6 X 16
250000721
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1582
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#1585
Horn Bracket
710006055
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#1650
Support Connector
710006056
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#1651
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#1652
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#1660
Yaw Rate Sensor
710005658
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#1664
Yaw Sensor Support
710006501
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#1680
Speed Sensor
710006981
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#1682
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#1684
Clip
710001343
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#1690
Sensor Support
705402088
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#1693
RH ABS Harness Support
710006554
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#1694
LH ABS Harness Support
710006555
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#1695
Hex Screw Washer Head M8 X 20
207582054
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
