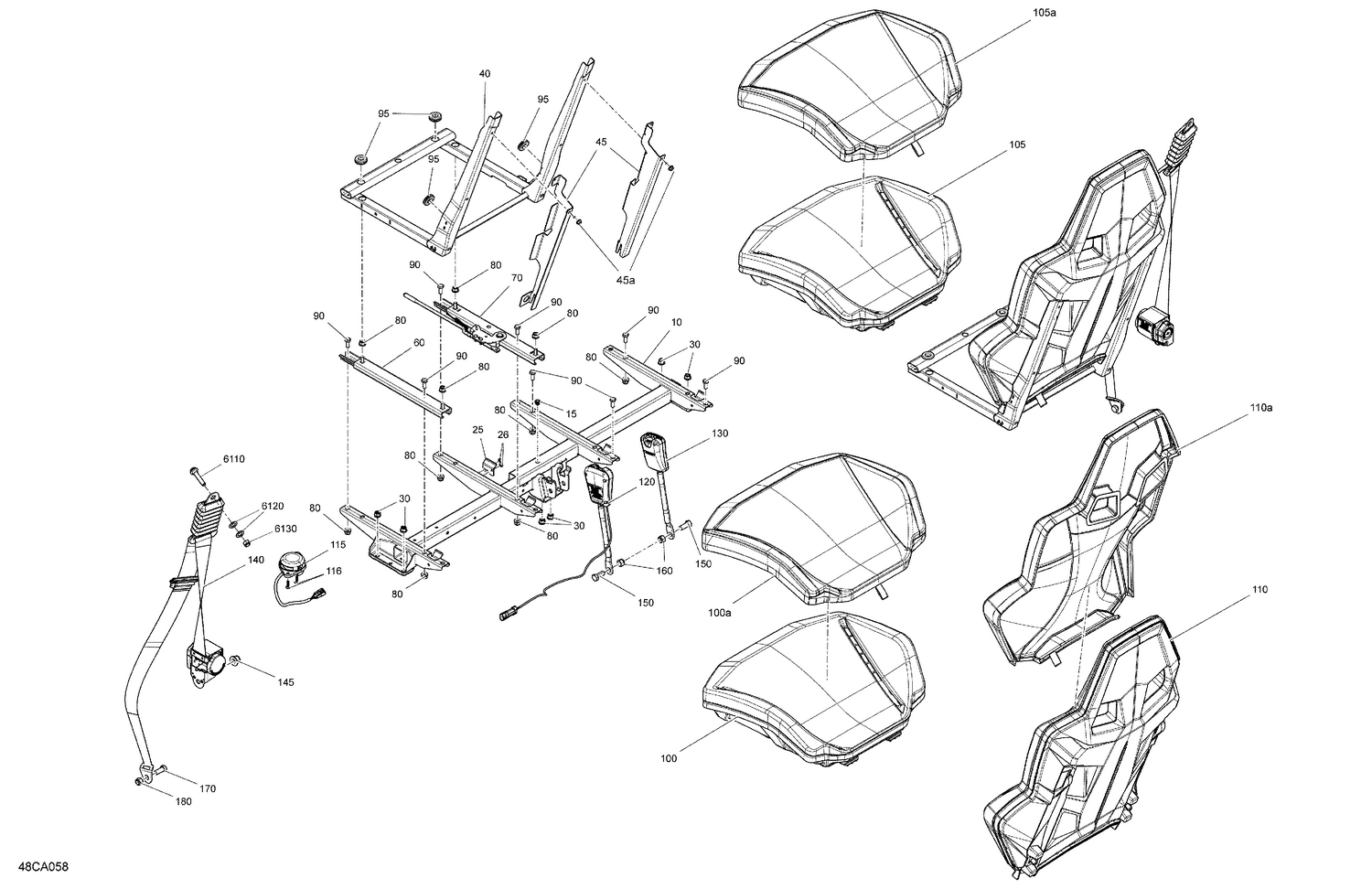

07- Body - Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Seat Member
708002421
Superseded by 708003469
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Seat Stopper
708002640
Superseded by 708003672
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
Seat Frame
708002423
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Seat Support Kit
708002945
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#45a
Hex. Flange Screw M6 X 16
207661654
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#60
LH Rail
708000848
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
RH Rail
708002711
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#90
Hex. Screw M8 X 20
207182044
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#95
Grommet
517303756
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#100
Cushion Ass'y
708002847
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Cushion Ass'y
708002839
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#100a
Not Available As Spare Part - Seat cover
|
|||
|
Unavailable |
|||
|
#100a
Not Available As Spare Part - Seat cover
|
|||
|
Unavailable |
|||
|
#105
Cushion Ass'y
708002847
|
$249.99 | ||
|
Unavailable |
|||
|
#105
Cushion Ass'y
708002839
|
$249.99 | ||
|
Unavailable |
|||
|
#105a
Not Available As Spare Part - Seat cover
|
|||
|
Unavailable |
|||
|
#105a
Not Available As Spare Part - Seat cover
|
|||
|
Unavailable |
|||
|
#110
Backrest Ass'y
708002859
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Backrest Ass'y
708002430
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#110a
Not Available As Spare Part - Backrest cover
|
|||
|
Unavailable |
|||
|
#110a
Not Available As Spare Part - Backrest cover
|
|||
|
Unavailable |
|||
|
#115
Passenger Detection Switch
710005543
Superseded by 710008103
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#116
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Driver Buckle
708002331
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
Passenger Buckle
708002329
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Safety Belt
708002712
Superseded by 708003378
|
$238.49 | ||
|
Available to order. Add to View Price |
|||
|
#145
Elastic Flange Nut M12
233221416
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#150
Hex. Cap Screw 7/16'' X 1''
250000521
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#170
Hex. Cap Screw 7/16'' X 1''
250000521
|
$1.99 | ||
|
Unavailable |
|||
|
#180
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Unavailable |
|||
|
#6110
Safet Belt Screw
708002443
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6120
Position Washer
708000891
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#6130
Lock Nut Nylon 7/16
250100183
|
$2.09 | ||
|
Unavailable |
|||
