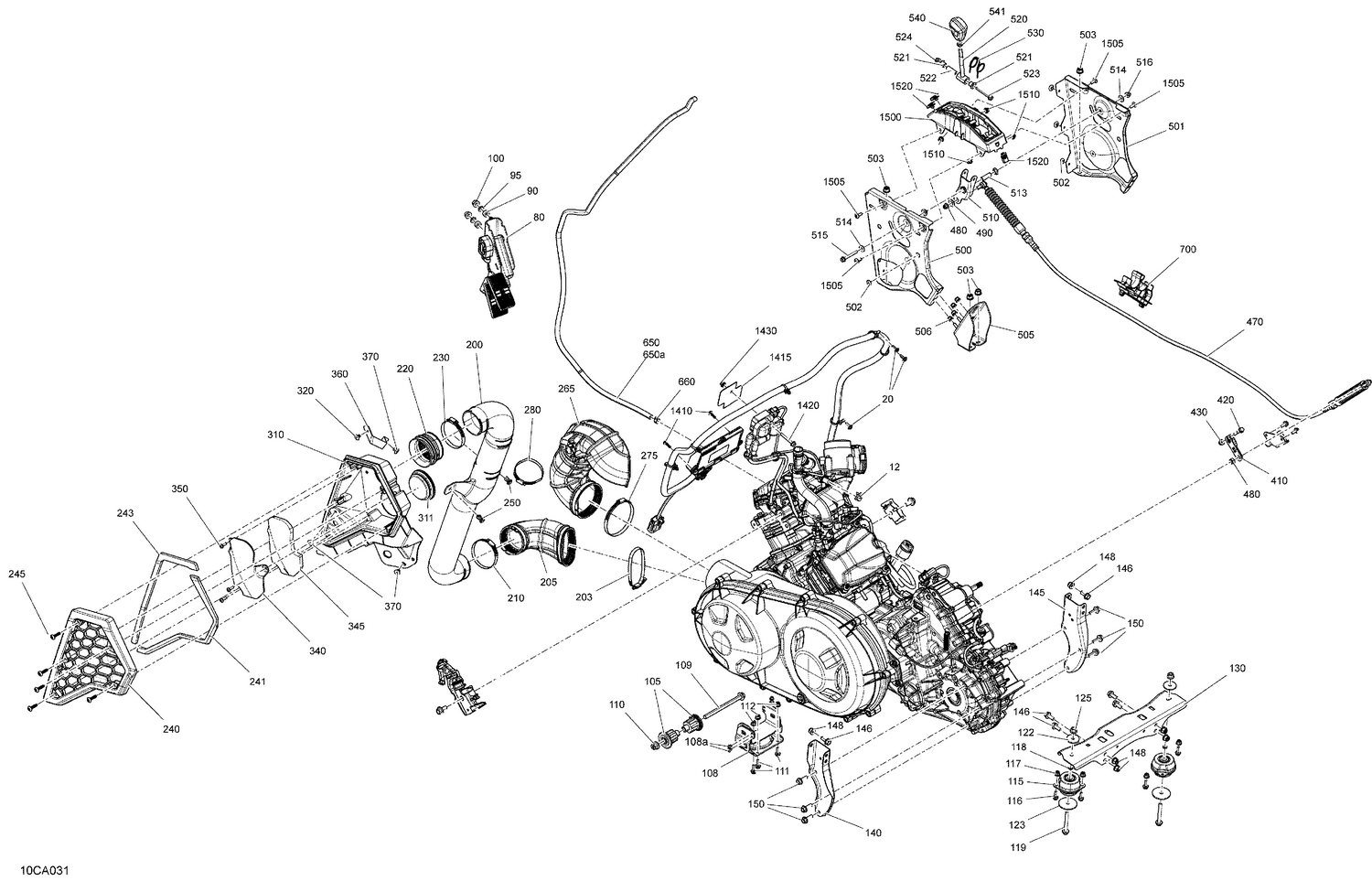

02- Engine - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#12
Norma Spring Clamp
293650214
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#80
Accelerator Pedal
707001166
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Bushing
707000848
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#95
Push Nut
250100031
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#105
Vibration Damper
707001169
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#108
Vibration Damper
707002592
Superseded by 707003061
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#108a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#109
Hex. Flange Screw M10 X 135
230603546
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#110
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#111
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#112
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#115
Rubber Mount
707002590
|
$58.49 | ||
|
Available to order. Add to View Price |
|||
|
#116
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
Unavailable |
|||
|
#117
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#118
O-Ring
293300215
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#119
Hex. Flange Screw, M8 X 65
207686544
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#122
Flat Washer M8
250200158
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#123
Flat Washer M8
250200180
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#125
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Unavailable |
|||
|
#130
Rear Link Bracket
707002290
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Engine Bracket
707002449
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#145
RH Rear Engine Support
707002450
Superseded by 707003340
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#146
Hex Flange Screw M8 X 20
207582046
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#148
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#200
Front CVT Cooling Duct
706600183
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#203
Norma Gear Clamp
514052983
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#205
Flexible Adapter
706600249
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#210
Norma Clamp
293650091
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#220
Soft Fitting
706600190
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#230
Norma Clamp
293650091
|
$10.99 | ||
|
Unavailable |
|||
|
#240
CVT Filter
706600180
Superseded by 706600417
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#241
Gasket
706600191
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#243
Gasket
706600231
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#245
Hex. Screw Pt K60 X 25
250000980
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#250
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#265
CVT Cooling Duct Out
706600192
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#275
Norma Gear Clamp
514052983
|
$15.99 | ||
|
Unavailable |
|||
|
#280
Norma Clamp
293650091
|
$10.99 | ||
|
Unavailable |
|||
|
#310
CVT Airbox
706600196
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#311
Plug
707002217
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#320
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#340
Baffle
706600286
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#345
Self Adhesive Protective Foam
706600287
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#350
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#360
Support
706600237
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#370
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Unavailable |
|||
|
#410
Lever
707000911
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#420
Hex. Flange Screw M6 X 35
207663544
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#430
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#470
Shifting Cable
707002000
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#480
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#490
Flat Washer 10 mm
234001410
|
$1.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
LH Bracket
707002099
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#501
RH Bracket
707002100
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#502
Pop Rivet 3/16"
293150103
|
$0.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#503
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#505
Cable Support
707002098
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#506
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#510
Lower Lever Arm
707002093
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#513
Bushing
707001376
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#514
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#515
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#516
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#520
Upper Lever Arm
707000711
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#521
Flanged Bushing
707000869
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#522
Bushing
707001376
|
$5.24 | ||
|
Unavailable |
|||
|
#523
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Unavailable |
|||
|
#524
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#530
Lever Arm Spring
707000750
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#540
Lever Trim
707000965
Superseded by 707003211
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#541
Hex. Jam Nut M8
232180491
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#650
Hose
219704439
Superseded by 219704549
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#650a
Hose
219704439
Superseded by 219704549
|
$51.99 | ||
|
Unavailable |
|||
|
#660
Oetiker Clamp
293650042
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#700
Hose Support
707002116
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#1410
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1415
Insulator Pad
710000073
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#1420
Hex. Flange Screw M6 X 1.0 X 45
250000213
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1430
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1500
Lever Indicator
707900603
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#1505
Torx Head Screw M6 X 16
250000717
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1510
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#1520
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
