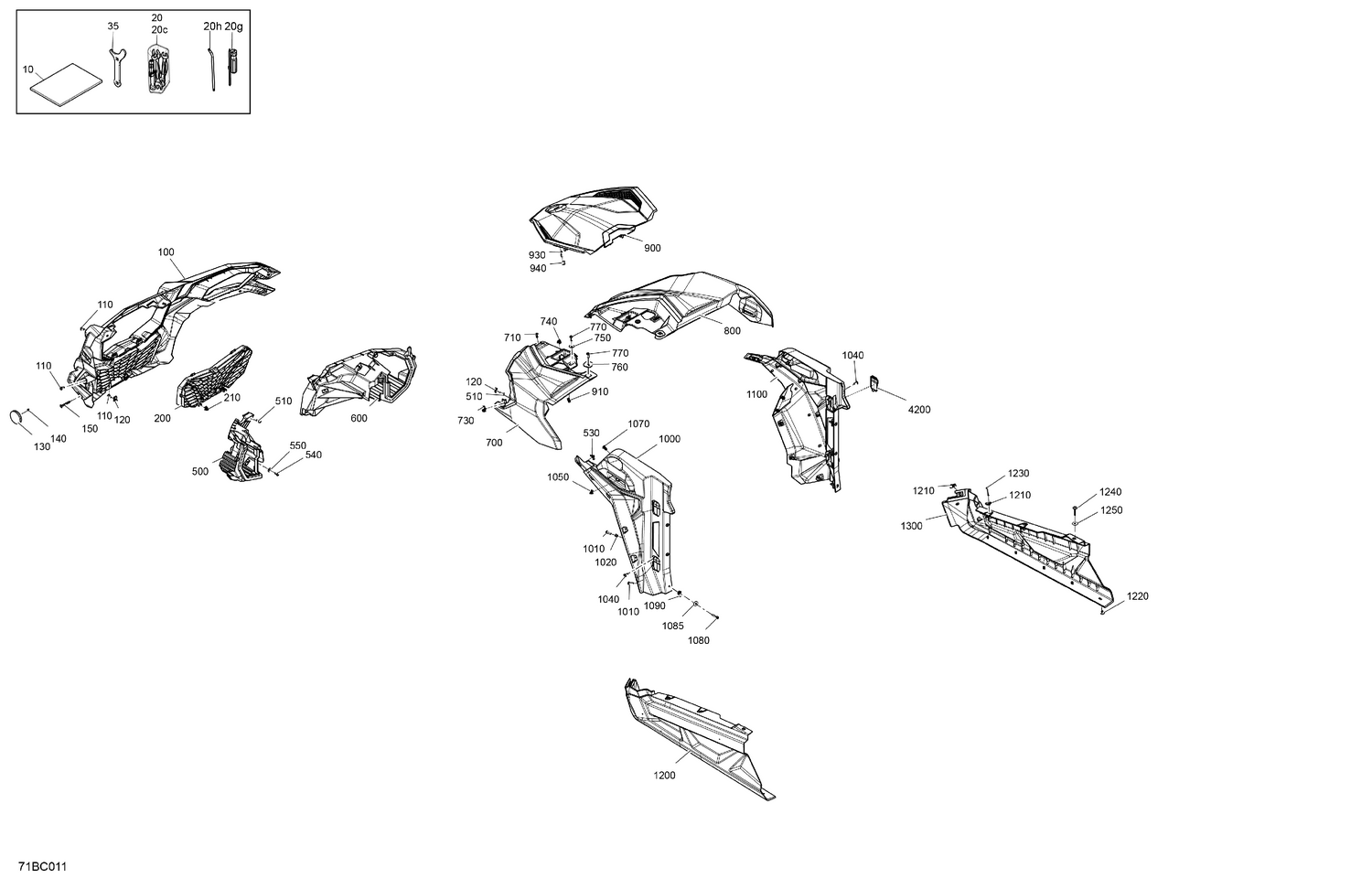

07- Body - Front Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
English Operator Guide
219002287
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Tool Kit
704700179
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#20c
Socket Wrench 14/16MM
529000085
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#20g
Screw Driver
529000021
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#20h
Torx Key T30
708200340
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Adjustment Wrench
529000057
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#100
Front Fascia
705011317
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Torx Truss Screw M6 X 16
250000721
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#120
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Amber Reflector
705017809
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Elastic Flange Nut M5
233251494
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#150
Torx Screw M6 X 45
250000748
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
Fascia Removable Grid
705011318
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#210
Clip
517306478
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
LH Headlamp Structure
705011319
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#510
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#530
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#540
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#550
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#600
RH Headlamp Structure
705011320
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#700
Timeless Black, LH Front Fender
705015580
Superseded by 705019683
|
$204.99 | ||
|
Unavailable |
|||
|
#710
Torx Truss Screw M6 X 16
250000721
|
$1.69 | ||
|
Unavailable |
|||
|
#730
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#740
Clip
517306478
|
$1.09 | ||
|
Unavailable |
|||
|
#750
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#760
Support Plate
705003841
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#770
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#800
Timeless Black, RH Front Fender
705015581
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#900
Removable Hood
705011322
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#910
Clip
517306478
|
$1.09 | ||
|
Unavailable |
|||
|
#930
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#940
Bushing
705502616
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#1000
LH Front Mudguard
705011323
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#1010
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1020
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#1040
Torx Truss Screw M6 X 16
250000721
|
$1.69 | ||
|
Unavailable |
|||
|
#1050
Clip
517306478
|
$1.09 | ||
|
Unavailable |
|||
|
#1070
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1080
Torx Truss Hex. Screw M6X35, Nylon Patch
250000867
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1085
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#1090
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#1100
RH Front Mudguard
705011324
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#1200
LH Front Rocker Panel
705016938
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#1210
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#1220
Pop Rivet 3/16”
293150101
Superseded by 293150101
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#1230
Torx Truss Hex. Screw M6X35, Nylon Patch
250000867
|
$2.19 | ||
|
Unavailable |
|||
|
#1240
Torx Truss Screw Head PT.K50 X 40
250000840
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#1250
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Unavailable |
|||
|
#1300
RH Front Rocker Panel
705016939
|
$77.49 | ||
|
Available to order. Add to View Price |
|||
|
#4200
Hinge Cover
705012703
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
