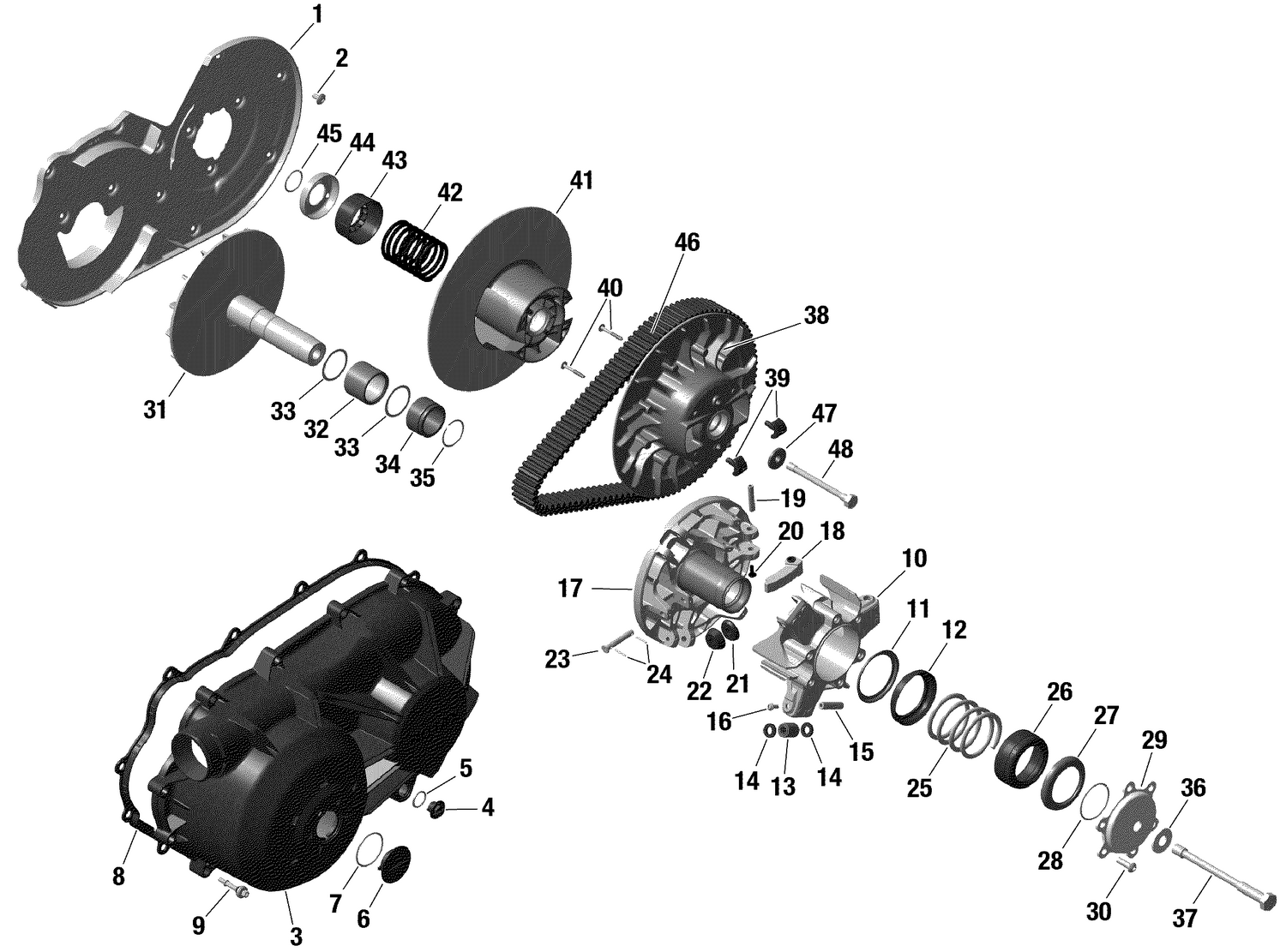

01- Rotax - Cvt - 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Variator Cover
420212730
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Torx Screw M6X13
420240051
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
CVT Air Guide
420212725
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cap
420441820
|
$11.63 | ||
|
Available to order. Add to View Price |
|||
|
#4a
O-Ring
420250052
|
$10.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-Ring
420250050
|
$10.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bayonet Cap
420441825
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-Ring
420250061
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
Gasket
420630255
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex Screw M6 X 30
420440568
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
Governor Cup Ass'y
420280716
Superseded by 420280761
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Stopper Spring
417224001
Superseded by 417224910
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spring Support
420427803
Superseded by 420427801
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Roller Thrust Set
420629231
Superseded by 420629237
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Thrust Washer
420626235
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
Axle - 10mm
417224204
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Torx-Truss M/S M5 X 14 S.Grip
250000763
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
Outer Half Ass'y
420280813
Superseded by 420280816
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Roller Lever Ass'y
420248727
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Pin Ramp
417223631
Superseded by 417224694
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Torx-Truss M/S M5 X 14 S.Grip
250000763
|
$2.29 | ||
|
Unavailable |
|||
|
#21
Pdrive Torque Rollers Maintenance Kit
420629224
Superseded by 861805587
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Not Available As Spare Part - Roller Pulley Ext
|
|||
|
Unavailable |
|||
|
#23
Pin
417224510
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
Spring Pin 2.6MM X 20.5MM
250400074
Superseded by 250400101
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
Compression Spring, Drive Pulley
420638133
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
Spring Support
420427808
Superseded by 420427809
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Seat Spring
420427354
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Circlip
293370116
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#29
Governor Cup Torque Flange
420280275
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Hex Screw M8 X 2
420841083
Superseded by 420841085
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Flasque Fixe Ass.
420280811
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Needle Roller Bearing With Sleeves
420832351
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Washer
420427220
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#34
Stop Sleeve
420660284
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Retaining Ring 35 x 1.5
420845741
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Washer
420245690
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#37
Hexagonal Screw M14X 165
420841161
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
Driven Pulley Ass'y
420686809
Superseded by 420686774
|
$889.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
OUTER HALF PULLEY ASS'Y - Call your local BRP dealership
420280796
Superseded by 420280798
|
$359.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Slider Shoe
420260343
Superseded by 420260344
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#40
Torx Flange Screw M6 X 20
420441835
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#41
Sliding Pulley Ass'y
420280787
Superseded by 420280788
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Compression Spring
420238176
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
Spring Support
420427321
Superseded by 420427323
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
Holding Strip
420427331
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#45
Retaining Ring 32.8
420245945
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#46
V-Belt
422280225
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
Thrust Washer
420627695
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#48
Hex. Screw M10 X 110
420441485
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
