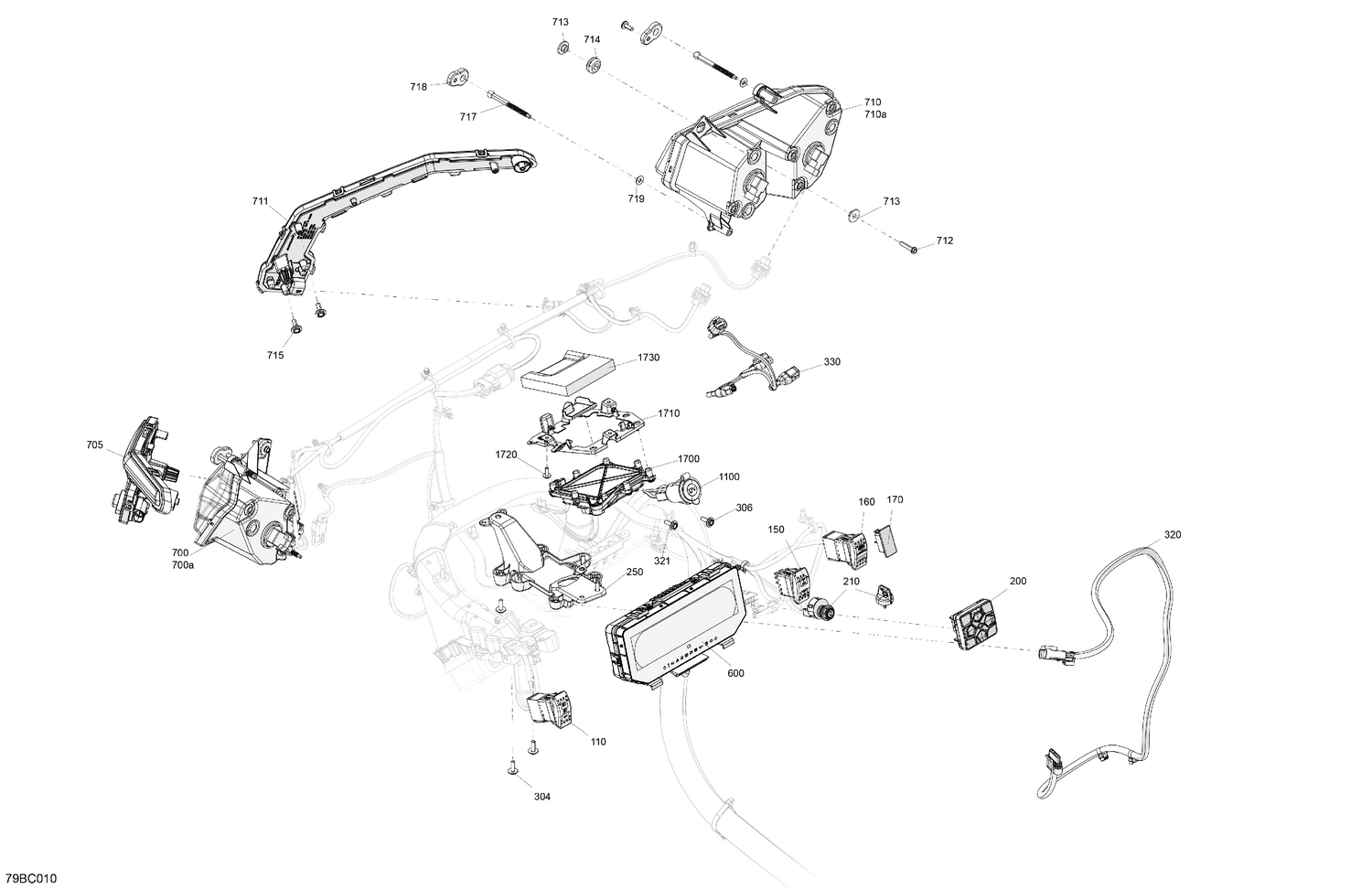

08- Electric - Front Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#110
Light Switch
710004492
|
$47.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#150
Differential Switch
710006040
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Differential Mode Switch
710006557
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#170
Plug Carling
710007173
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#200
Multifonction Switch
710006650
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#205
Specialized Nut
710007923
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#209
Sticker
710008322
|
|||
|
Unavailable |
|||
|
#210
Ignition Switch
710007324
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#210a
Specialized Nut
710007923
|
$2.19 | ||
|
Unavailable |
|||
|
#210b
Blank Ignition Key
715900934
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Housing Support
710005672
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#304
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#306
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#320
Trottle Pedal Harness
710005929
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#321
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#330
Front Differential Wiring Harness
710006807
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#600
Multifunction Gauge MID
710007409
|
$369.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#700
LH Headlamp
710008230
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#700a
Bulb 12V 55W
715900141
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#705
LH Signature Beam
710004994
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#710
RH Headlamp
710008231
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#710a
Bulb 12V 55W
715900141
|
$41.49 | ||
|
Unavailable |
|||
|
#711
RH Signature Beam
710004995
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#712
Hex. Flange Screw K50 X 2.24 X 25
241152540
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#713
Shoulder Bushing
710004749
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#714
Grommet
709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#715
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#717
Ajustment Screw
710005837
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#718
Ball Socket
293900157
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#719
O-Ring
293300192
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#1100
12V Power Outlet
710005374
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1700
Differential Module
710008842
|
$479.99 | ||
|
Available to order. Add to View Price |
|||
|
#1710
FDM Support
710006104
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#1720
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#1730
Protector Foam
710006580
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
