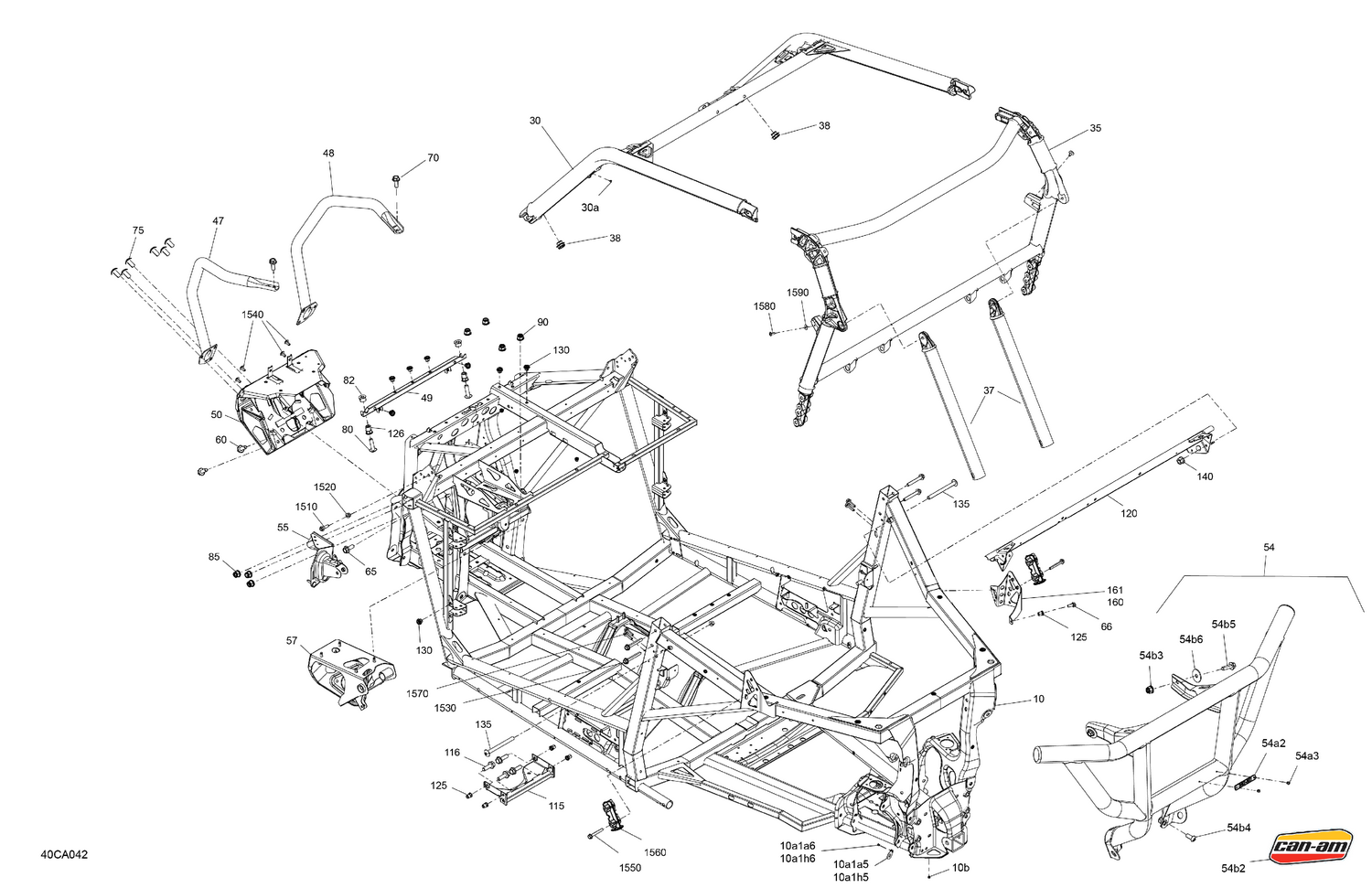

06- Frame - System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Chassis Kit
715009394
|
$2,969.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a1a5
Shim
705209479
|
$3.29 | ||
|
Unavailable |
|||
|
#10a1a6
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10a1h5
Shim
705209479
|
$3.29 | ||
|
Unavailable |
|||
|
#10a1h6
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#10b
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#30
Deep Black, Front Cage Kit
715009358
|
$609.99 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#35
Deep Black, Rear Cage Kit
715009370
|
$619.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Deep Black, Rear Cage Extension
705211125
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
LH Front Bumper
705206303
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
RH Front Bumper
705206308
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
Cross Member
705206313
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Deep Black, Front Bumper
705209043
|
$457.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
Deep Black, Rear Bumper Kit
715007109
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#54a2
EMBLEM CAN-AM - Call your local BRP dealership
704902307
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#54a3
Pop Rivet 1/8", Black
293150189
|
$0.27 | ||
|
Available to order. Add to View Price |
|||
|
#54b2
Decal "Can-Am"
704904566
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#54b3
Hex. Elastic Flange Nut M8
229000122
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#54b4
Torx Truss M/S M8 X 20
229000057
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#54b5
Shoulder Screw HEX. M8 X 25
229000147
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#54b6
Flat Washer M8
229000148
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#55
Brake Support
705206217
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
DPS Support
705206294
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#65
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#66
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#70
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#75
Torx Truss Screw M8 X 16
250000746
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
Hex Torx Truss M8 X30
250000745
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#82
Bushing
705207229
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#85
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#115
Bearing Support
705211563
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#116
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#120
Central Tube
705209434
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#125
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#126
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Unavailable |
|||
|
#130
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#135
Torx Truss M8 X 90
250000806
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#160
LH Rear Anchorage Support
705211569
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#161
RH Rear Anchorage Support
705211571
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#1510
Hex. Flange Screw M10 X 35
250000855
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#1520
Flange Elastic Nut M10
233201466
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#1530
Hex. Flange Screw M10 X 70
207607056
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#1540
Torx Truss Screw M8 X 16
250000746
|
$3.49 | ||
|
Unavailable |
|||
|
#1550
Hex. Flange Screw M8 x 60
207686044
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1560
Sleeve
705209210
Superseded by 705210648
|
$9.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1570
Hex. Flange Screw M8 X 30, Scotch Grip
207583044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1580
Torx Head Screw M6 X 16
250000717
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1590
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
