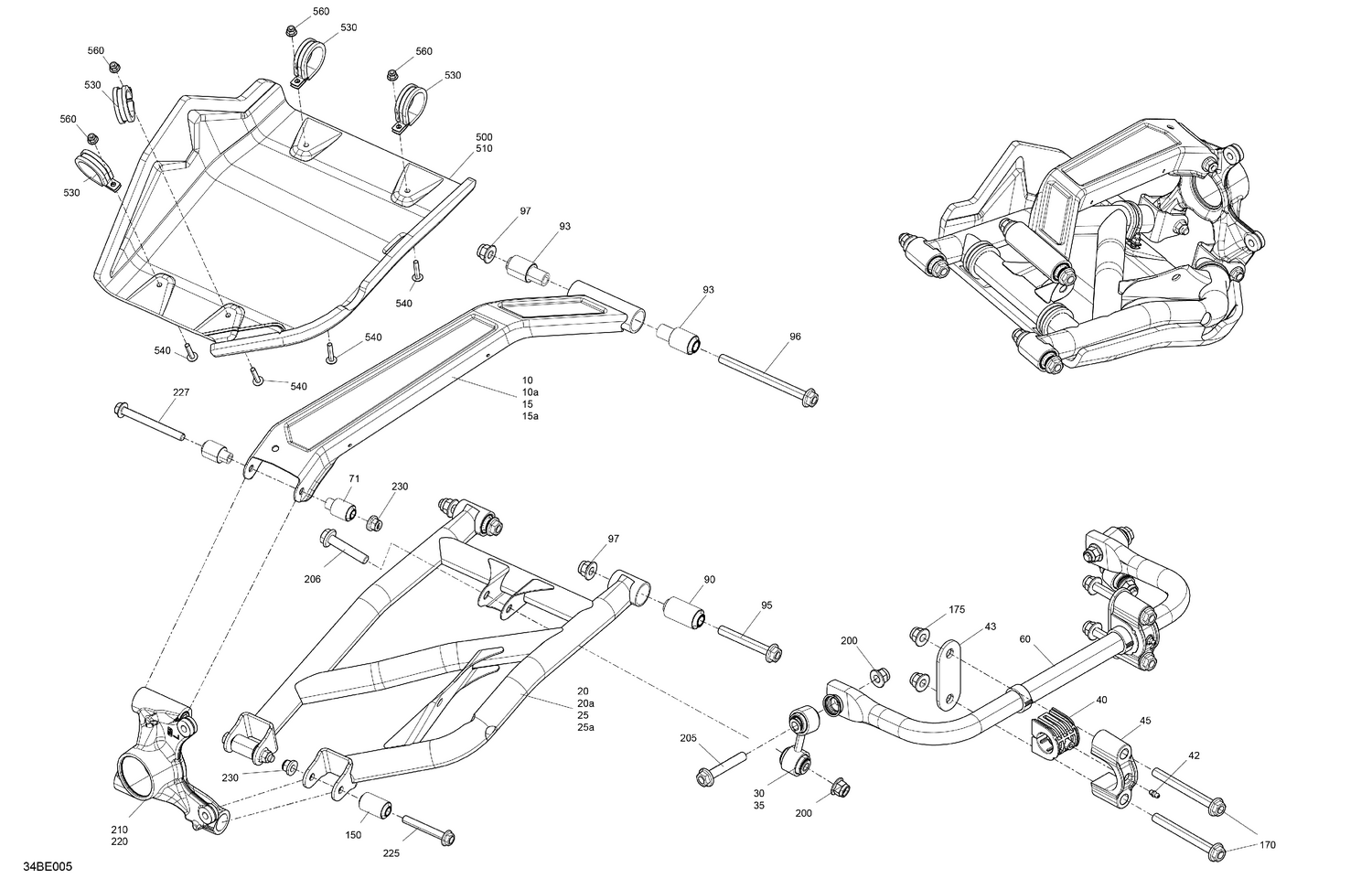

05- Suspension - Rear Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Legion Red, LH Upper Suspension Arm Ass'y With Bushing
706005536
Superseded by 715010687
|
$249.99 | ||
|
Unavailable |
|||
|
#10a
LH Upper Suspension Arm Ass'y With Bushing
706003715
Superseded by 715010684
|
$249.99 | ||
|
Unavailable |
|||
|
#15
Legion Red, RH Upper Suspension Arm Ass'y With Bushing
706005537
Superseded by 715010698
|
$249.99 | ||
|
Unavailable |
|||
|
#15a
RH Upper Suspension Arm Ass'y With Bushing
706003716
Superseded by 715010695
|
$249.99 | ||
|
Unavailable |
|||
|
#20
Deep Black, LH Interior Suspension Arm Ass'y With Bushing
706005538
Superseded by 715010705
|
$249.99 | ||
|
Unavailable |
|||
|
#20a
LH Lower Suspension Arm Ass'y With Bushing
706003727
Superseded by 715010704
|
$249.99 | ||
|
Unavailable |
|||
|
#25
Deep Black, RH Lower Suspension Arm Ass'y With Bushing
706005539
Superseded by 715010712
|
$249.99 | ||
|
Unavailable |
|||
|
#25a
RH Lower Suspension Arm Ass'y With Bushing
706003728
Superseded by 715010711
|
$249.99 | ||
|
Unavailable |
|||
|
#30
Sway Bar Double Link
706003004
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Sway Bar Double Link
706003003
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Stabilizer Bar Bushing
706004266
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#42
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
Plate Support
706002977
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
Clamp
706002970
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
Sway Bar Ass'y
706003475
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
Suspension Arm Bushing
706006100
|
$3.91 | ||
|
Unavailable |
|||
|
#90
Suspension Arm Bushing
706004828
|
$3.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#93
Suspension Arm Bushing
706004829
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#95
Hex. Flange Screw M12X1.75X85
250001168
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#96
Screw Hex Flange DIN.6921 M12X1.75X
250001167
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#97
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#150
Suspension Arm Bushing
706006099
|
$3.91 | ||
|
Unavailable |
|||
|
#170
Screw Flange M12 X 115
250000860
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#175
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#200
Elastic Flange Nut M12
250001195
|
$2.69 | ||
|
Unavailable |
|||
|
#205
Hex. Flange Screw M12 X 70
250000858
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#206
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
LH Rear Knuckle Ass'y
715010183
|
$126.99 | ||
|
Unavailable |
|||
|
#220
RH Rear Knuckle Ass'y
715010184
|
$126.99 | ||
|
Unavailable |
|||
|
#225
Hex. Screw M10 X 70, Scotch Grip
207507046
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#227
Hex. Screw M10 X 100, Scotch Grip
230500046
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#230
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
LH Rear Arm Protector
706003359
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#510
RH Rear Arm Protector
706003360
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#530
Open Clamp
293850121
|
$14.83 | ||
|
Available to order. Add to View Price |
|||
|
#540
Stainless, Torx Screw M6 X 30
250000842
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#560
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
