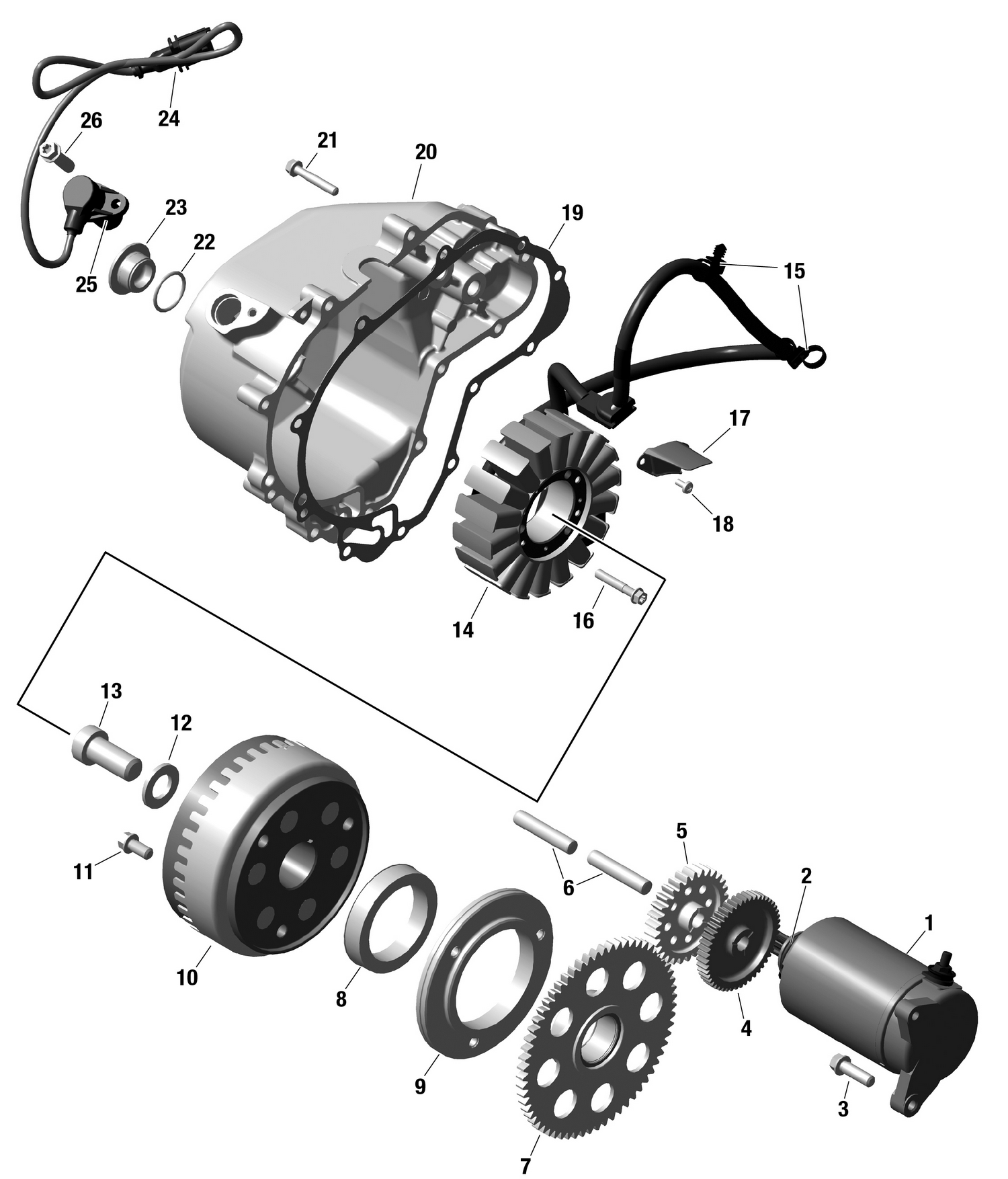

01- Rotax - Magneto And Electric Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Electric starter Ass'y
420684566
|
$265.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
O-Ring
420250140
|
$8.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Torx Flange Screw M8 X 25
420440372
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
Double Gear 11/49
420634743
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Starter Intermediate Gear, 30 Teeth
420634605
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Location Pin 10 M6x50
420229302
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
Free Wheel Gear, 64 Teeth
420434235
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Sprag Clutch
420659112
Superseded by 420659111
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Sparg Clutch Housing
420659263
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Flywheel With Trigger Wheel 650W
420685704
|
$582.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Flange Screw M8 X 16
420440854
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Shim
420627270
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
Socket Head Screw M16 X 35
420241549
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
Stator Ass'y
420685638
Superseded by 420685923
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#16
Torx Flange Screw M6 X 30
420440647
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Interior Cable Support Ass'y
420251881
Superseded by 420251889
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
Phillips Screw M4 X 8
420240195
Superseded by 420240196
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
Gasket
420651201
Superseded by 420651203
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Ignition Cover
420212221
Superseded by 420212225
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Torx Flange Screw M6 X 35
420440274
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-Ring
420430781
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
Plug Screw M24X 1.5
420241633
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
Crankshaft Position Sensor Ass'y
420966570
|
$114.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
O-Ring
420431580
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
