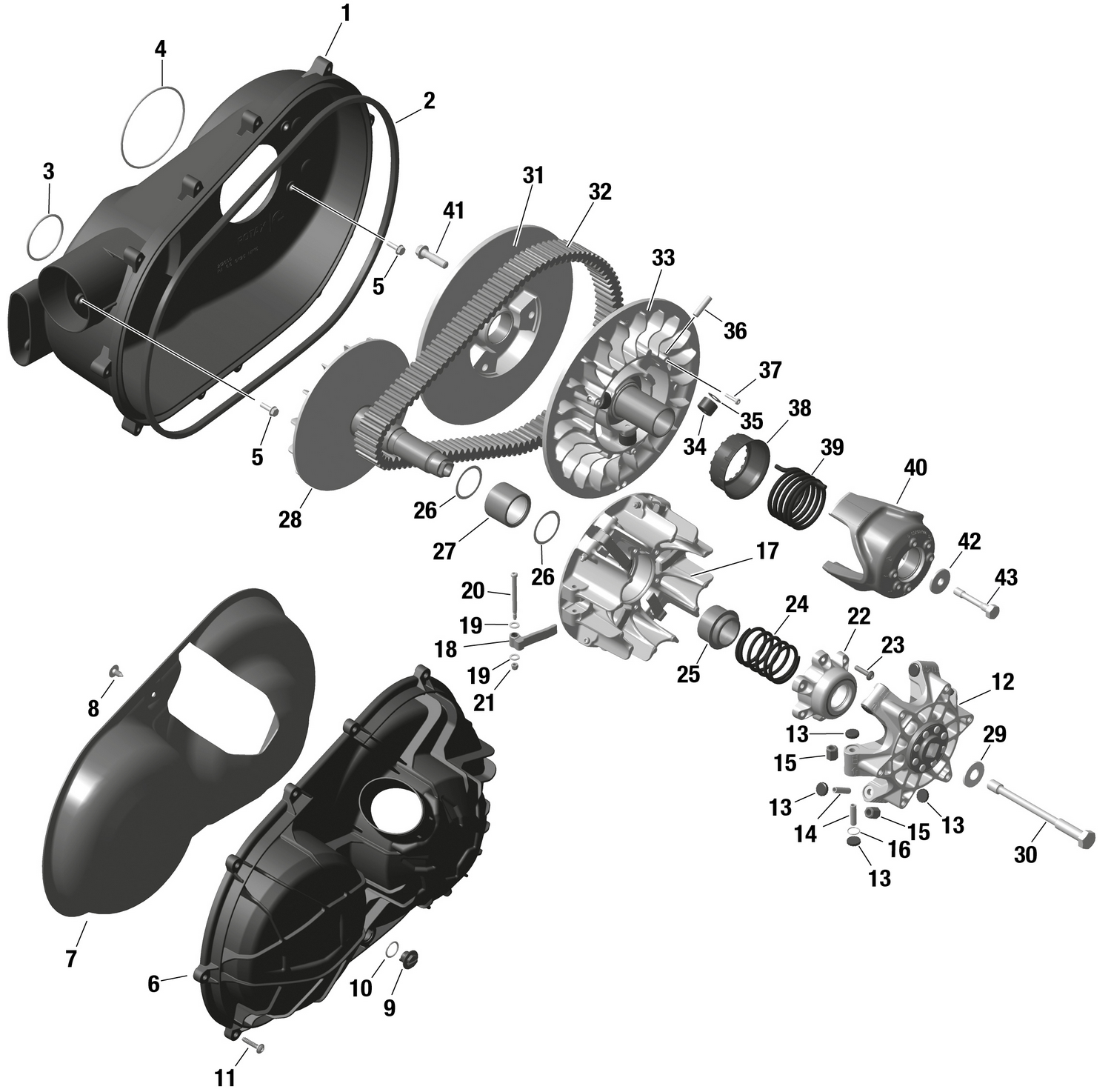

01- Rotax - Cvt Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CVT Air Guide
420212600
Superseded by 420212604
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Gasket
420450400
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-Ring
420430408
Superseded by 420430409
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-Ring
420450431
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
Hex.Screw M6 X 20
420441311
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
Variator Cover
420212509
Superseded by 420212711
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Heat Protector
420897388
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Trim Button
420651816
|
$1.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Cap
420441820
|
$11.63 | ||
|
Available to order. Add to View Price |
|||
|
#9a
O-Ring
420250052
|
$10.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-Ring
420250052
|
$10.43 | ||
|
Unavailable |
|||
|
#11
Torx Screw 6X30
420441575
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
Governor Cup Ass'y
420280727
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Slider Shoe Set
420281296
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Roller Axle
417223257
|
$7.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Roller Thrust
420229991
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-Ring
420230456
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Outer Half Ass'y
420280608
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Lever Set
420248663
|
$439.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#20
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#21
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#22
Bearing Cover
420280616
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Torx Flange Screw M6 X 25
420841549
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Compression Spring
420638119
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Spring Retainer
420427211
|
$46.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Washer
420427220
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#27
Needle Roller Bearing With Sleeves
420832351
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Inner Half Ass'y
420280597
|
$328.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Washer
420245690
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#30
Hexagonal Screw M14X 165
420841161
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Sliding Pulley Ass'y
420280636
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Drive Belt
422280656
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Outer Half Pulley Ass'y
420280626
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Pulley Roller
417127016
|
$25.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Thrust Washer
420227946
|
$2.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
Bearing Pin
420629192
|
$16.34 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
Torx Screw M4 X 20
420841531
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
Swivel Abutment
417127116
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#39
Compression Spring
420638124
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Cam
420280755
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Torx Flange Screw M10 X 40
420841711
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#42
Collar Washer
420427240
Superseded by 420427243
|
$16.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
Hexagonal Screw M10X 61
420441990
|
$19.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
