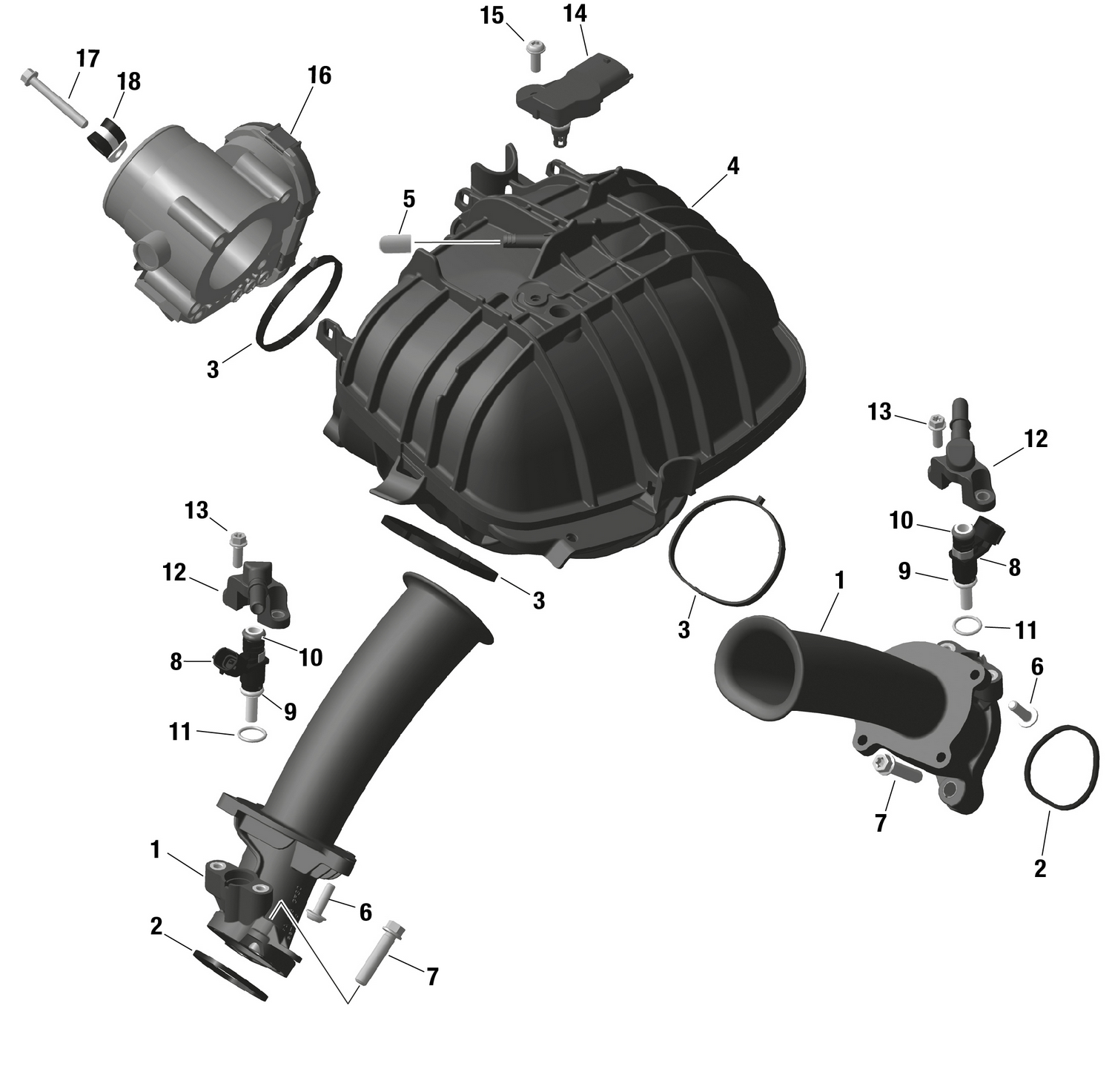

01- Rotax - Air Intake Manifold And Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Air Intake Manifold
420667830
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Gasket
420630642
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Gasket
420431900
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
Air Intake Manifold
420667386
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cap
420201910
|
$6.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
Torx Flange Screw M6 X 20
420841103
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
Torx Flange Screw M8 X 35
420641188
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
Injection Valve Ass'y
420874842
Superseded by 420874887
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-Ring
420431890
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-Ring
420631220
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-Ring
420631295
Superseded by 420631296
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
Fuel Rail
420874901
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
Pressure And Temperature Sensor
420874658
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Torx Flange Screw M6 X 16
420641588
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Throttle Body Socket Ass'y
420892596
|
$466.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Torx Flange Screw M6 X 45
420440324
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
