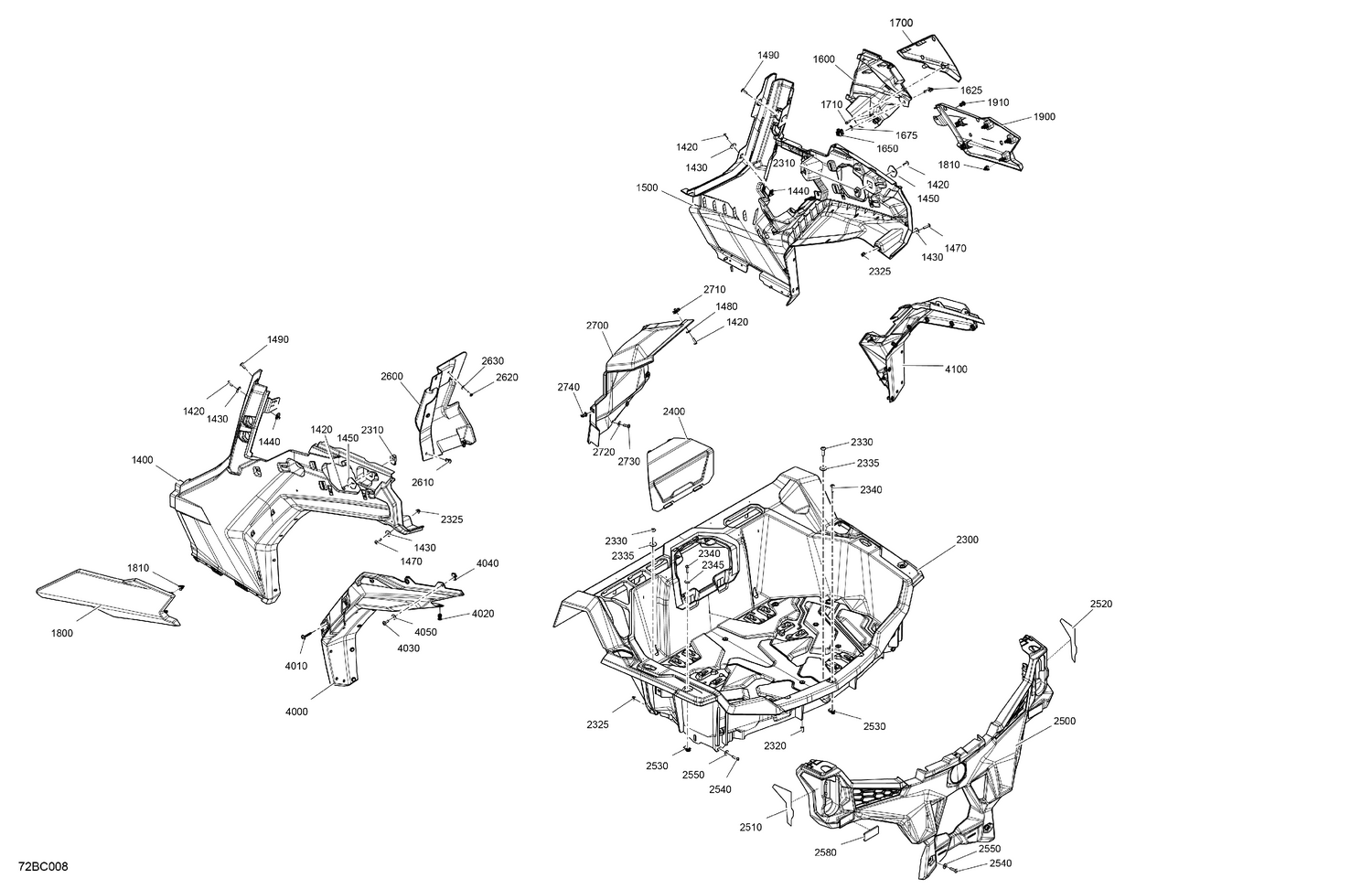

07- Body - Rear Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1400
LH Rear Panel
705012885
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#1420
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1430
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#1440
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1450
Support Plate
705003841
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1470
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1480
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1490
Black, Dart
414644300
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#1500
RH Rear Panel
705012886
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#1600
Air Filter Acces Door
705011338
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#1625
Quarter Turn
708400278
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#1650
Clip
708400285
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#1675
Washer
708400286
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#1700
Mineral Gray Satin, Acces Panel Trim
705015589
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#1710
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1800
Mineral Gray Satin, LH Open Carrier Trim
705015594
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#1810
Clip
517306478
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1900
Mineral Gray Satin, RH Open Carrier Trim
705015599
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#1910
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2300
Rear Box
705016885
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#2310
Panel Nut M6 X 1.0
250100224
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#2320
Hex. Coupling Nut M6
250100207
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#2325
Hex. Elastic Flange Nut M6
233161464
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#2330
Hex Torx Truss M8 X30
250000745
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#2335
Stainless Steel Flat Washer
234082670
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#2340
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Unavailable |
|||
|
#2345
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#2400
Access Cover Kit
715006766
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#2500
Rear Fascia
705016944
Superseded by 705011426
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#2510
LH Rear Reflector
704906815
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#2520
RH Rear Reflector
704906816
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#2530
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#2540
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
Unavailable |
|||
|
#2550
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#2580
Red Reflector
520001820
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#2600
LH Rear Wheel Arch Protector
705015886
|
$45.49 | ||
|
Available to order. Add to View Price |
|||
|
#2610
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#2620
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#2630
Washer M5
250200025
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2700
RH Rear Wheel Arch Protector
705016135
|
$45.49 | ||
|
Available to order. Add to View Price |
|||
|
#2710
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#2720
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#2730
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#2740
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#4000
LH Rear Mud Guard
705016942
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#4010
Torx Truss Screw Head PT.K50 X 40
250000840
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4020
Tuflok Plastic Rivet
293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#4030
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#4040
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#4050
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#4100
RH Rear Mud Guard
705016943
Superseded by 705019031
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
