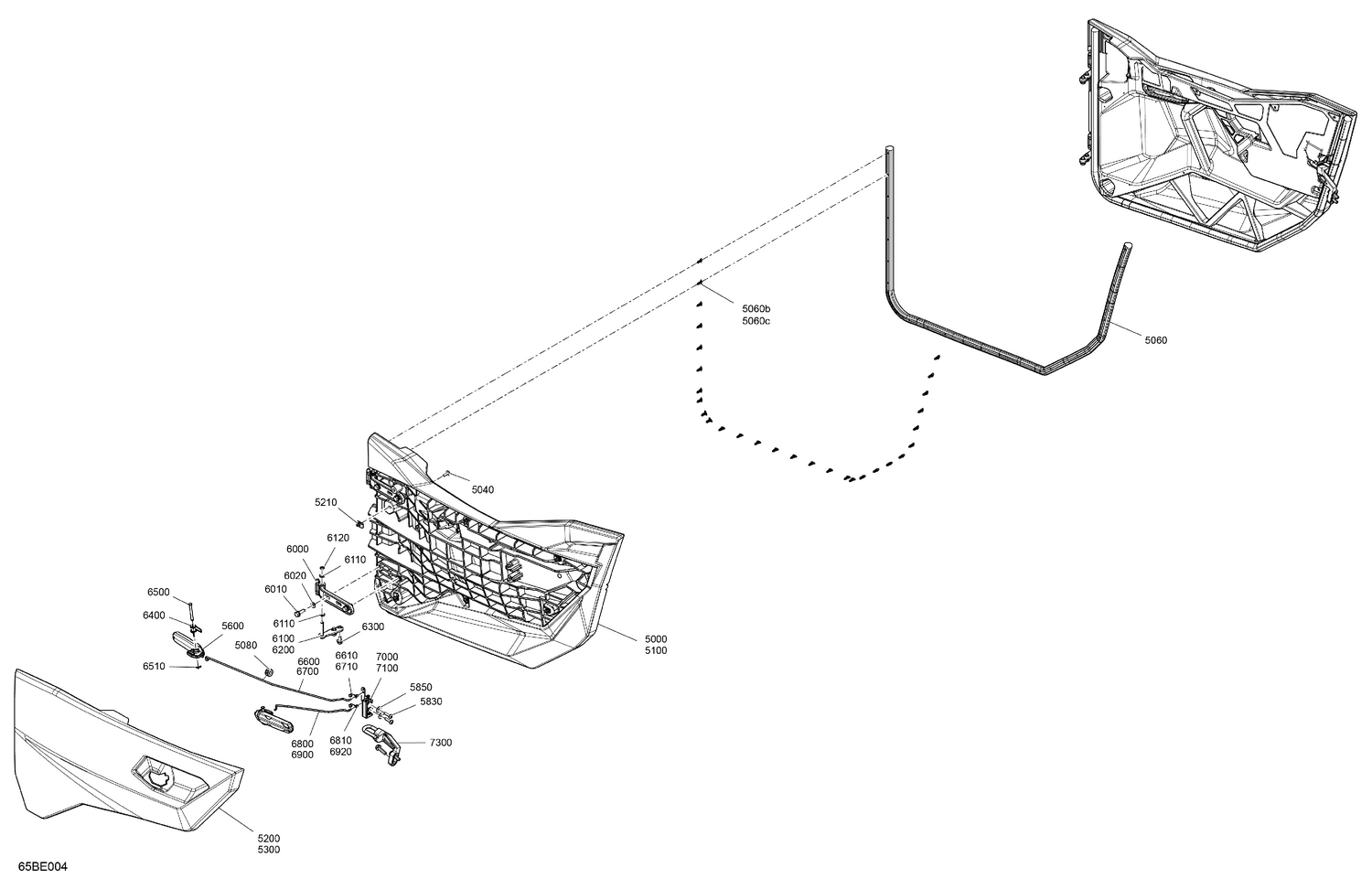

07- Enclosure Cab - Doors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#5000
LH Front Door Ass'y
715009731
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#5040
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5060
LH Front Door Gasket Ass'y
293250501
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#5060b
Natural Color, Dart
293730081
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#5060c
Red, Dart
293730082
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#5080
Grommet
293720104
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#5100
RH Front Door Trim Ass'y
715009732
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#5200
Hyper Silver, LH Front Door Panel
705018116
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#5210
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5300
Hyper Silver, RH Front Door Panel
705018117
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#5600
Door Handle
705017152
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5830
Torx Truss Screw M6 X 25
250000807
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5850
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6000
Hinge
705013228
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6010
Hex Flange Screw M8 X 25 S.Grip
250001016
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6020
Washer
503192494
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#6100
Lower Hinge Ajustement
705011629
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6110
Flat Washer 8 mm, Nylon
234081100
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6120
Circlip
705601030
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#6200
Upper Hinge Ajustement
705012506
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6300
Hex. Flange Screw DIN.6921 S.Grip
250001033
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#6400
Handle Spring
705013062
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6500
Handle Axle
705207440
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6510
External Retaining Ring
705601875
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#6600
LH Upper Locking Rod
705207146
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6610
RH Tie Rod Clip
708300202
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#6700
RH Upper Locking Rod
705207147
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6710
LH Tie Rod Clip
708300182
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#6800
LH Lower Locking Rod
705207150
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#6810
RH Tie Rod Clip
708300202
|
$2.89 | ||
|
Unavailable |
|||
|
#6900
RH Lower Locking Rod
705207151
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#6920
LH Tie Rod Clip
708300182
|
$2.89 | ||
|
Unavailable |
|||
|
#7000
LH Latch
705013095
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7100
RH Latch
705013096
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#7300
RH Stricker Support
705207028
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
